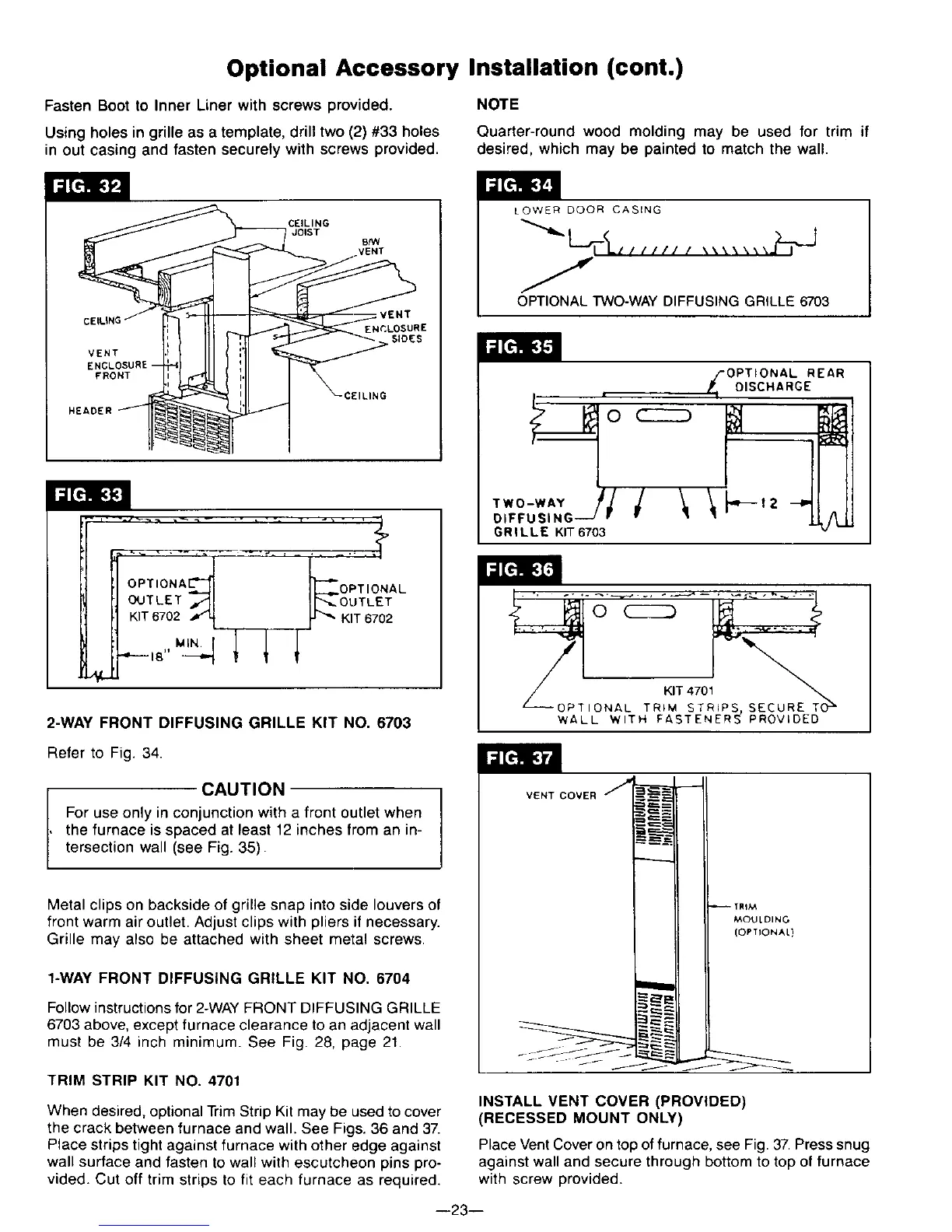

Optional Accessory Installation (cont.)
Fasten Boot to Inner Liner with screws provided. NOTE
Using holes in grille as a template, drill two (2) #33 holes Quarter-round wood molding may be used for trim if
in out casing and fasten securely with screws provided, desired, which may be painted to match the wall.
CEILING
JOIST
B/W
VENT
C
VENT
ENCLOSURE
FRONT
:VENT
ENCLOSURE
!ILING
OPTIONA _L_I h_OPTIONAL
OUTLET _ II_ 0UTLET
KIT 6702 _I _'" KIT 6702
o(Nill
2-WAY FRONT DIFFUSING GRILLE KIT NO. 6703
LOWER DOOR CASING
OPTIONAL TWO-WAY DIFFUSING GRILLE 6703
T W O -WAY
OIFFU SING--_
i
o
'll \\k-,2
GRILLE KIT 6703
_OPTIONAL REAR
DISCHARGE
--4
KIT 470R_
OPTIONAL TRIM ST
WALL WITH FASTENERS PROVIDED
Refer to Fig. 34.
CAUTION
For use only in conjunction with a front outlet when
the furnace is spaced at least 12 inches from an in-
tersection wall (see Fig. 35).
]
Metal clips on backside of grille snap into side louvers of
front warm air outlet. Adjust clips with pliers if necessary.
Grille may also be attached with sheet metal screws.
1-WAY FRONT DIFFUSING GRILLE KIT NO. 6704
Follow instructions for 2-WAY FRONT DIFFUSING GRILLE
6703 above, except furnace clearance to an adjacent wall
must be 3/4 inch minimum. See Fig. 28, page 21.
TRIM STRIP KIT NO. 4701
When desired, optional Trim Strip Kit may be used to cover
the crack between furnace and wall. See Figs. 36 and 37.
Place strips tight against furnace with other edge against
wall surface and fasten to wall with escutcheon pins pro-
vided. Cut off trim strips to fit each furnace as required.
VENT COVER j
,==..
TRIM
MOULDING
(OPTIONAL}
INSTALL VENT COVER (PROVIDED)
(RECESSED MOUNT ONLY)
Place Vent Cover on top of furnace, see Fig. 37. Press snug
against wall and secure through bottom to top of furnace
with screw provided.
