19
– Insert the pins on the rear boiler cover into the holes provided in the side panel cladding – Fig. 38.
– Install the hanger with the instructions folder, cleaning and operating implements on a side panel of the boil-
er (Fig. 39) or on a wall in the boiler room/installation room.
– Keep ash pan under boiler.
For the Installer

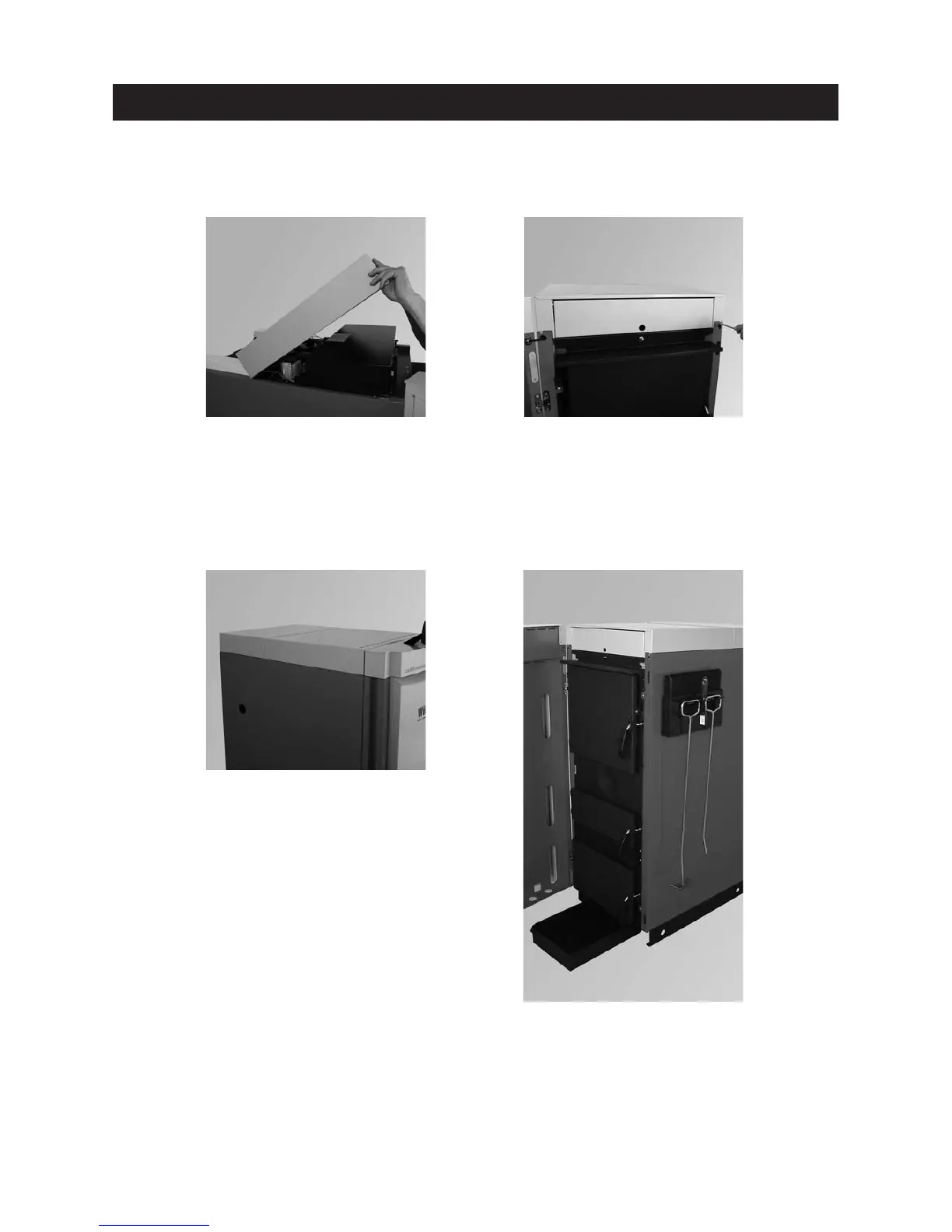

Fig. 36 Hinging in boiler cover Fig. 37 Securing boiler cover in 2 places
Fig. 38 Putting on the rear boiler cover
Fig. 39 Fitting hanger, ash pan under boiler
– Hinge in front boiler cover (Fig. 36) and secure to side walls at front using 2 screws – Fig. 37.
Supplied as standard:
– Folder containing instructions
– Poker
– Scratcher
– Cleaning brush
– Spatula
– Ash pan
– Hanger (for installation on the wall or LogWIN
side panel)
