24

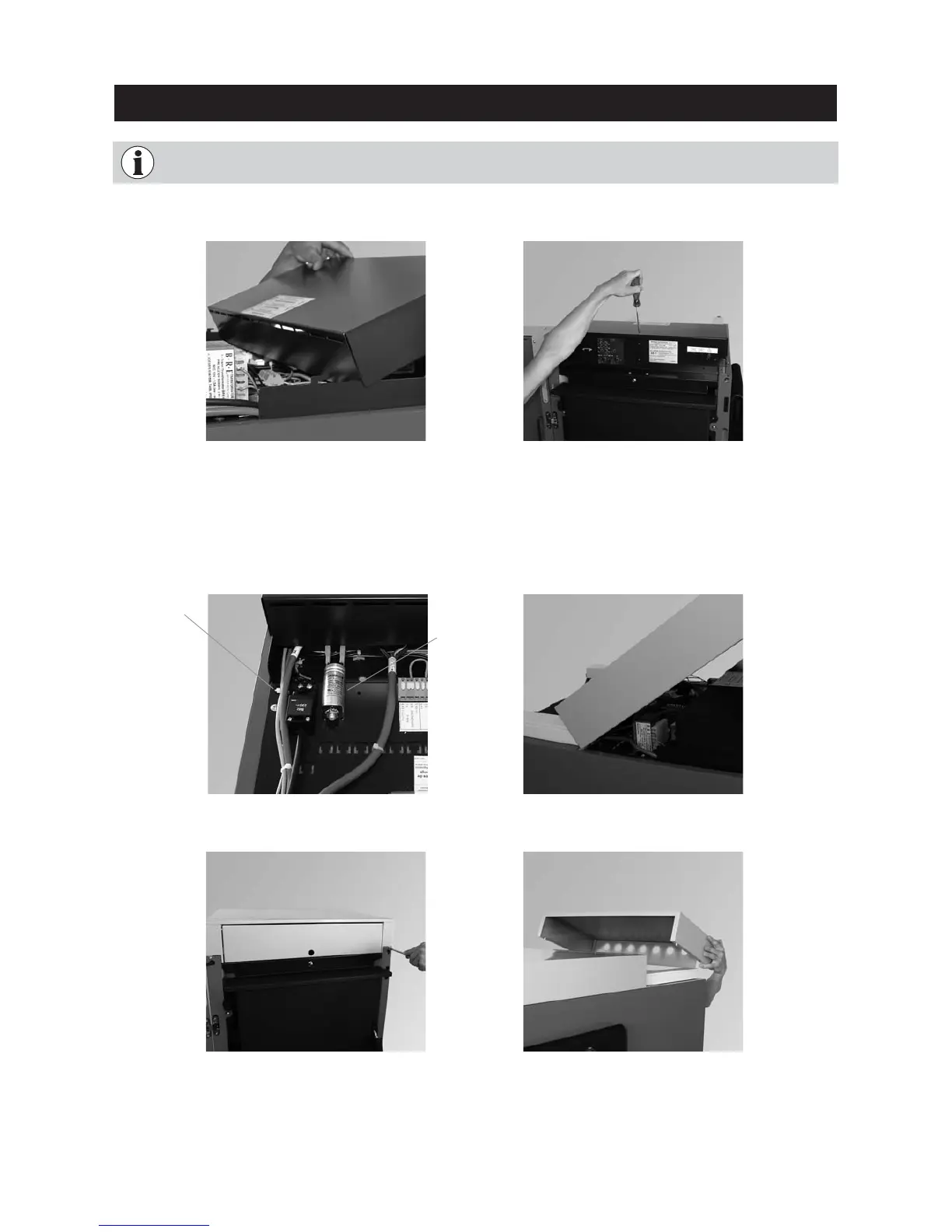

– After connecting the cables, hinge the control panel cover back in (Fig. 47), close and secure with 1 screw at
the front – Fig. 48.
For the Electrician
Electrical cables should be routed in the cable ducts intended for this purpose and are not allowed to
be routed over the cleaning cover. The space above the cover must be accessible for cleaning.
Fig. 49 Connecting plugs – rear view
Fig. 52 Putting on the rear boiler cover
Power plug
Fig. 47 Hinging in control panel cover
Fig. 50 Hinging in boiler cover
Fig. 48 Securing control panel cover
with 1 screw at the front
Fig. 51 Securing 2 screws at the front
– Connect the mains power plug at the rear of the control panel – Fig. 49
– Hinge in front boiler cover (Fig. 50) and secure at front again using 2 screws – Fig. 51.
– Insert the pins on the rear boiler cover into the holes provided in the side panel on the boiler – Fig. 52.
