Window Master CompactSmoke WSC 320 - 9 Cable Plan for Connection

12

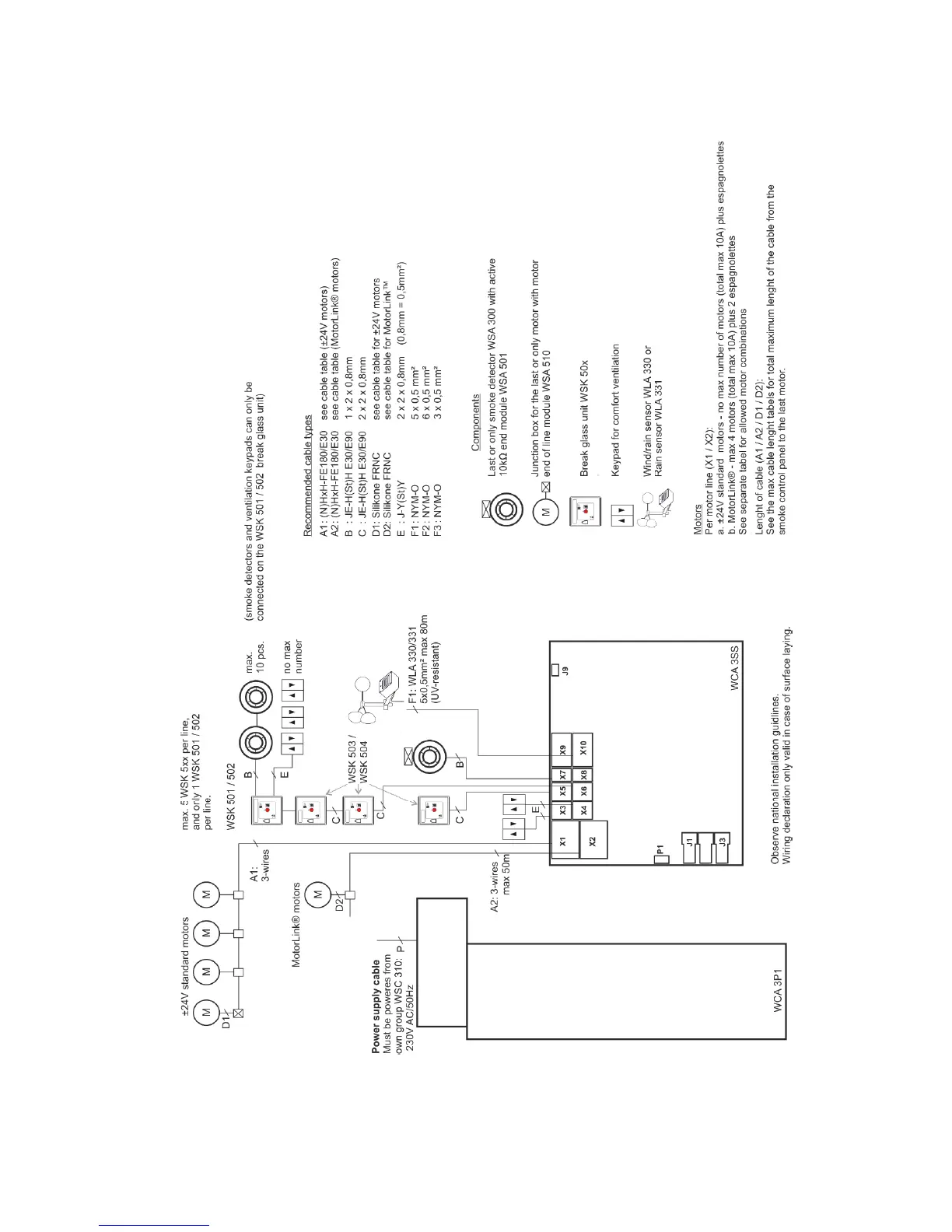

9 Cable plan for connection to WSC 310 / 320 Standard version
The above plan shows a WSC 310 panel, where the power supply unit is located in the left side of the panel wherefrom also mains
is pulled. The power supply unit for the WSC 320 panel is located underneath the main control card and mains is pulled from the
top right side. See section 10.1.
