10 Description of cards and mains connection
Each panel includes a power supply unit (SMPS) and a main control card.
The size of the power supply unit determines the size of the panel and the number and/or types of actuators, which can be
connected to the panel. See table with overview of max number of allowed actuators per motor line/panel (chapter 0).
The size of the power supply also determines the physical design of the panel inside the cabinet and thereby eg. where mains is
connected to the main control card (WCA 3SS).

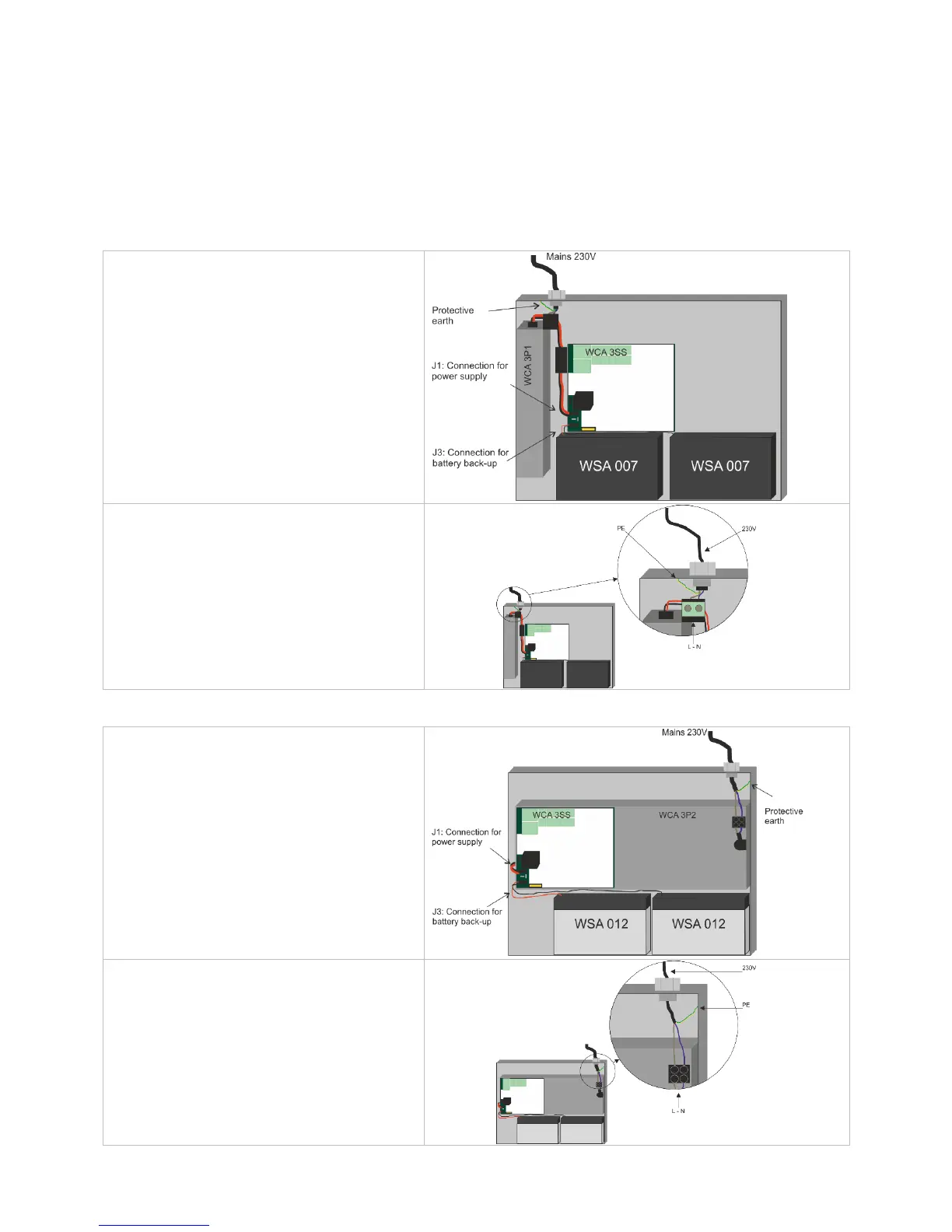

10.1 WSC 310 mains connection and power supply (WCA 3P1)
WSC 310 ā WCA 3P1
With 300W SMPS unit
The power supply is located to the left of the main
control card.
The cable inlet is in the top left corner of the panel.
The panel must be grounded by means of protective
earth on the top panel plate.
10.2 WSC 320 mains connection and power supply (WCA 3P2)
WSC 320 - WCA 3P2
With 600W SMPS unit
The power supply is located underneath the main
control card.
The cable inlet is in top right corner of the panel.
The panel must be grounded by means of protective
earth on the top right side of the panel.
