Window Master CompactSmoke WSC 320 - Page 15

15
All actuators on the same motor line will run/be operated simultaneously.
All actuators on the same motor line must be of the same type.
Connection / cable diameter: flexible max 6 mm² / solid max 10 mm².
Cable length: see the chapter "Cable dimensioning".
Standard ±24V actuators
Examples with 20A power
consumption
a) 20 pcs. WMX 826-1
b) 10 sets of 2 pcs. WMX 826-2
c) 4 pcs. WMU 885-1
d) 2 sets of 2 pcs. WMU 885-2
Cable monitoring
When using ±24V standard
actuators or non-WindowMaster
actuators and cable monitoring is
wanted a 10kΩ resistor is used. An
“end of line motor module” type
WSA 510 must be added in the last
junction box. Actuator are per
default monitored.

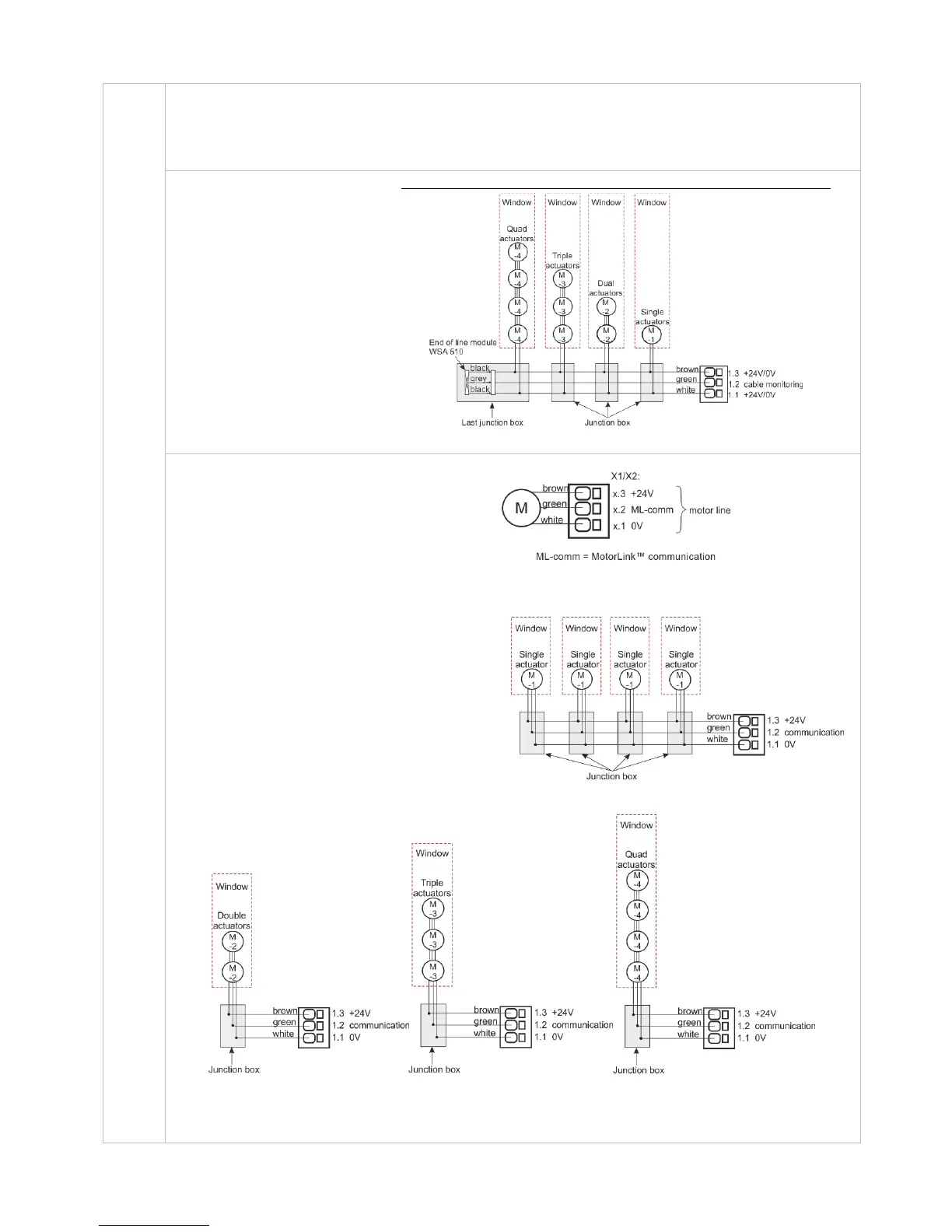

Connection of standard actuators on motor line X1 (with cable monitoring)
MotorLink
®
actuators
Examples with actuators per
motor line
Ex. 1: 4 pcs. WMX 823-1
Ex. 2: 2 pcs. WMX 885-2
Ex. 3: 3 pcs. WMU 826-3
Allowed actuator combinations on a MotorLink
®
motor line
The two motor lines on the SS card can each be connected to one of the below shown combinations.
-1 (single): one window with one single window
actuator. Up to four windows each with one
single window actuator can be connected
-2 (double): one window with two double window
actuators.
-3 (triple): one window with three triple window
actuators.
-4 (quad): one window with four quad window
actuators.
Cable monitoring
When using actuators with MotorLink
®
the actuators with MotorLink
®
are monitored by data communication.
When the team-size does not match, an error is indicated on the diodes.
