Maintenance
3303−3/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
3/ 6
2. Removal of bearing shell

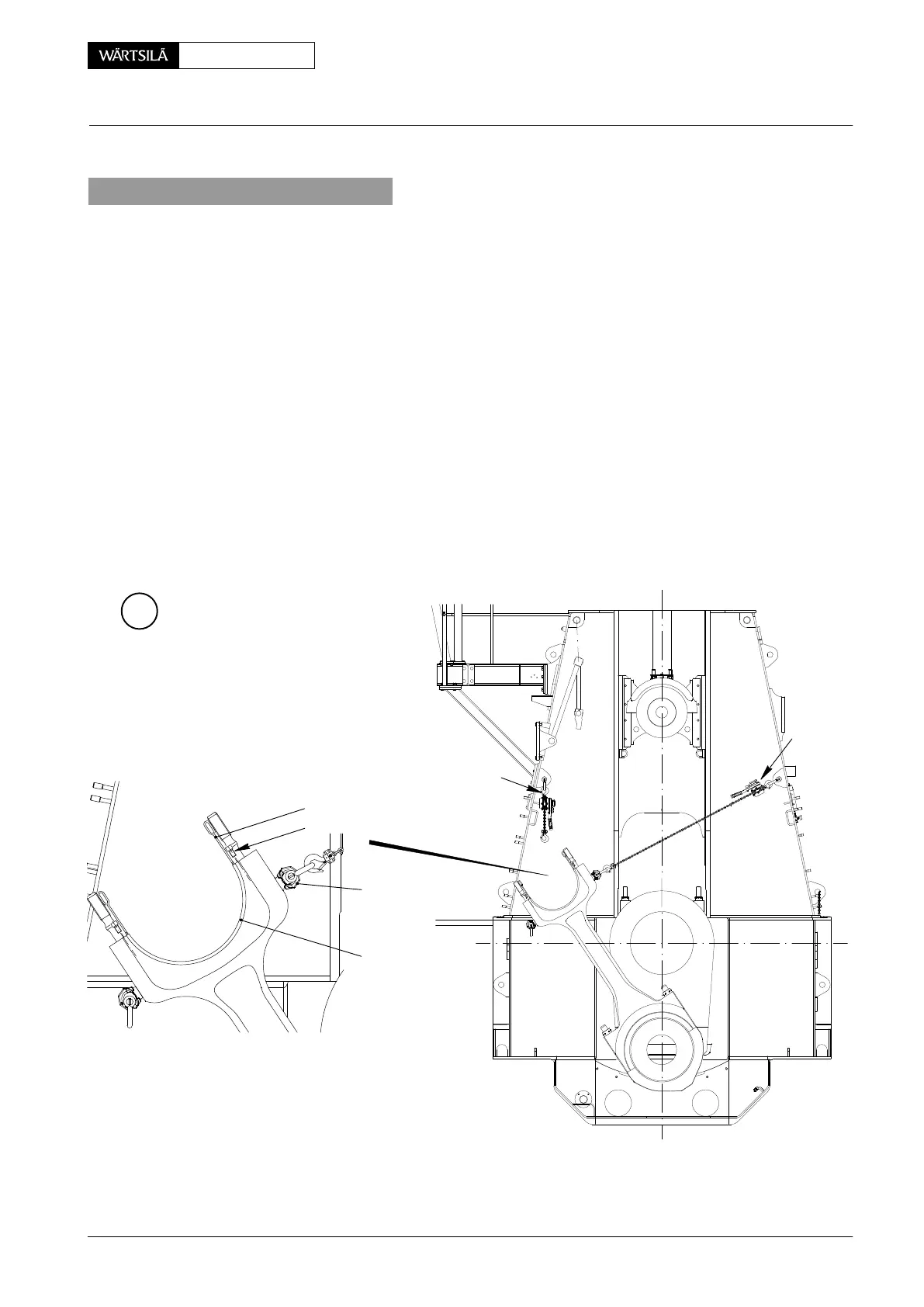

⇒ Swing the connecting rod with manual ratchets ’H1’ to fuel side, ensuring that
it will not tilt back to exhaust side.
⇒ Remove manual ratchet ’H1’ on fuel side and swing connecting rod to the
position as shown in the figure below.
⇒ Remove Allen screw 8 for positioning bearing shell 7.
⇒ Remove bearing shell by means of handle screws 94009-M8 which are
screwed into the front faces of the bearing shell.
⇒ Lift the bearing shell out of the connecting rod whereby the threads of the elas-
tic studs must be covered with lugs in order not to damage the bearing shell.
⇒ Place bearing shell on a wooden underlay.
C
7
8
94009−M8
RC2
WCH01028
H1
H1
94572C
94572C
V2 / 2013
Inspection, Removal and Fitting of Top End Bearing
