Maintenance5556−1/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
4/ 10
F
G
21
18
19
17
20
013.674/05
22

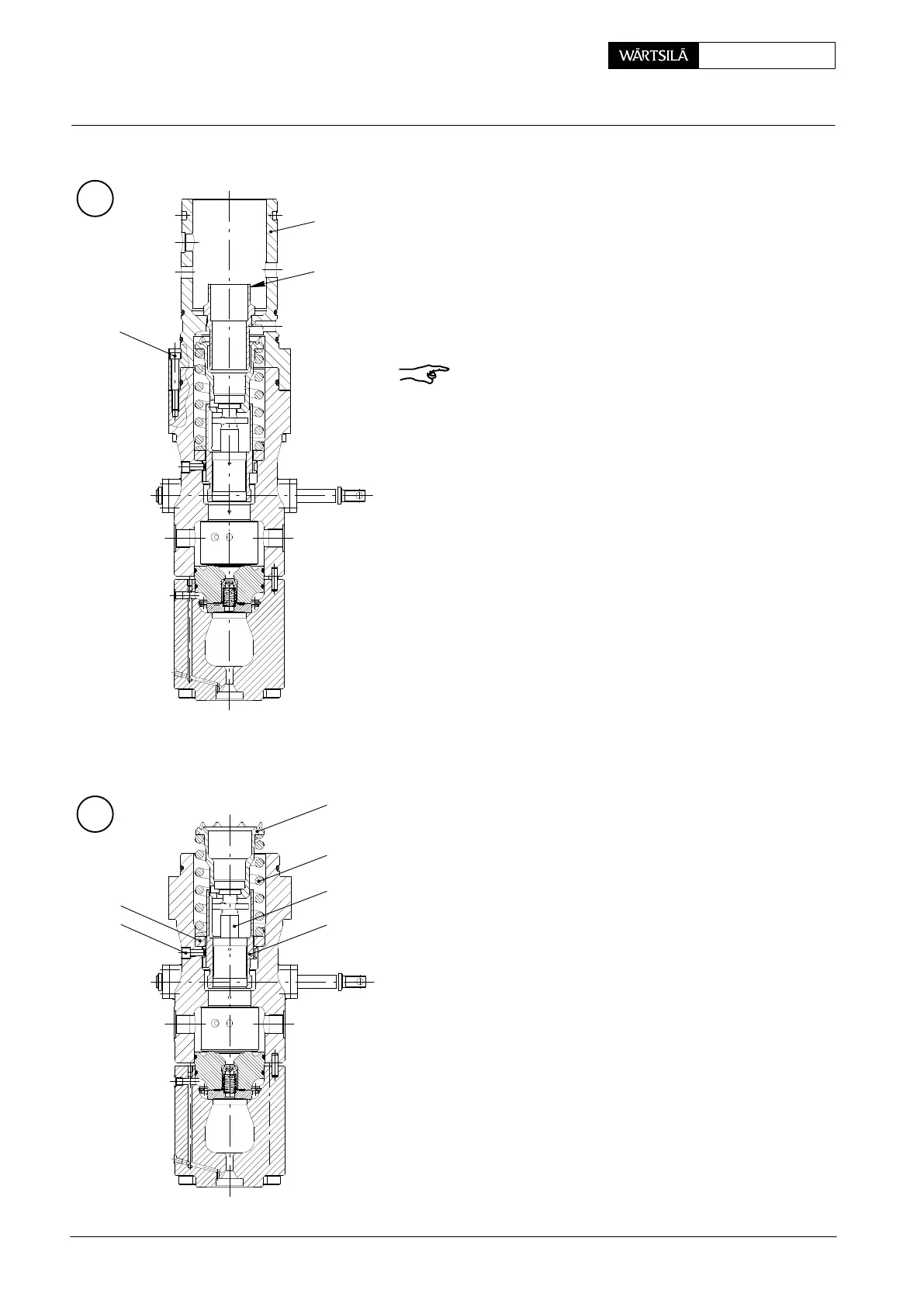

⇒ Dismantle lower spring carrier 17 together with
pump plunger 18.
Store the pump plunger in a manner not to damage
it.
⇒ Remove compression spring 19.
⇒ Remove regulating sleeve 21 together with upper
spring carrier 22.
⇒ Remove Allen screws 16.
⇒ Separate lower housing 6 from upper housing.
Remark: If bush 37 has to be replaced, the new one
must be secured with LOCTITE No. 648 and tightened
with a torque of 200 Nm.
6
16
013.673/05
37
2013
Fuel Pump: Dismantling and Assembling
