Maintenance
5556−1/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
5/ 10
H
I
5
32
29
33
4
39
35
30
31
34
25
233826
27 24
28
013.679/05
008.653/00

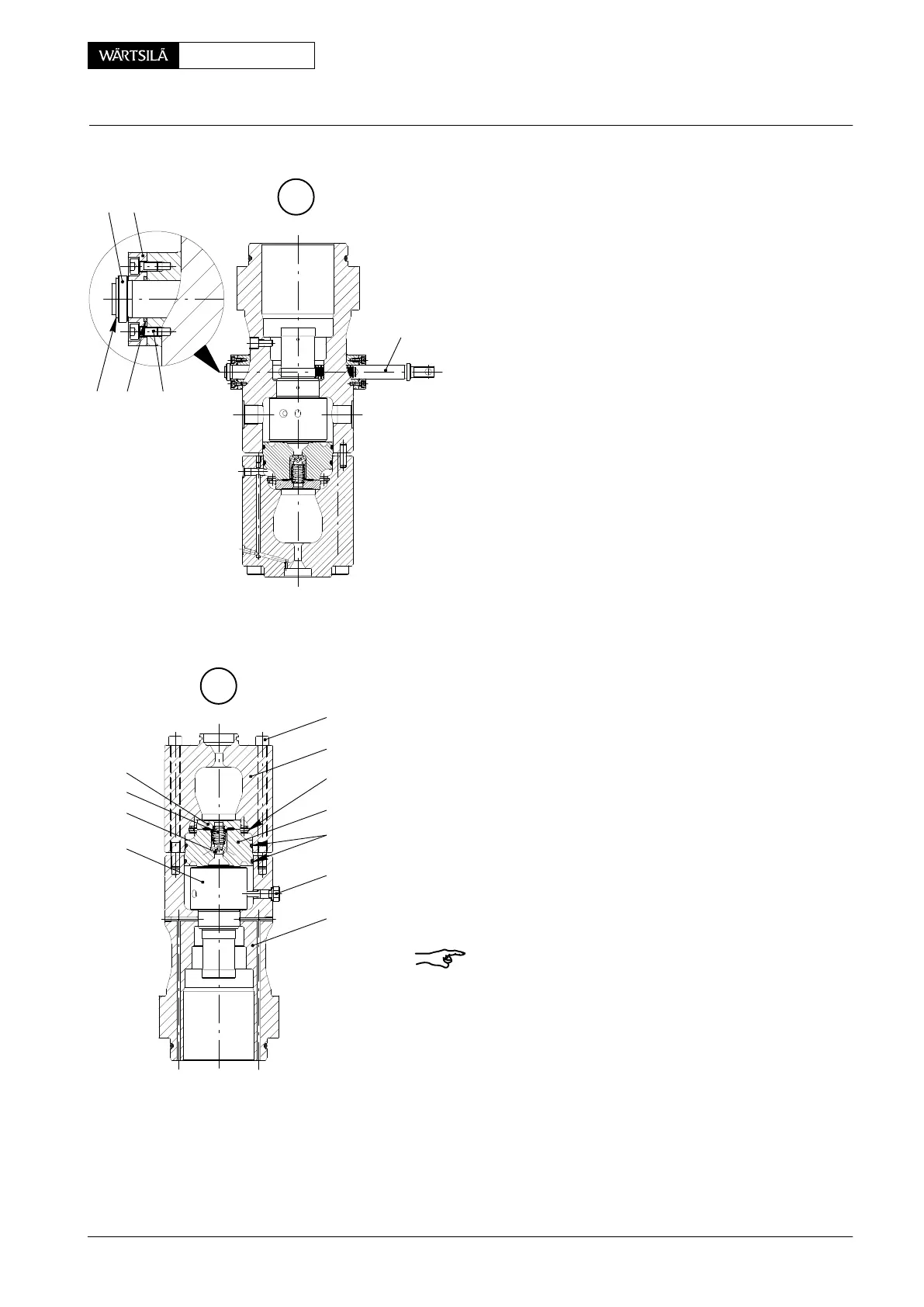

3.4 Removal of regulating rack
⇒ Unscrew all screws 23.
⇒ Remove circlip 26 and stop ring 27.
⇒ Remove flange 24 together wit rod seal ring 38, and
push out regulating rack 25.
3.5 Removal of pump cylinder
⇒ With pump cover 4 turned upwards, clamp the fuel
pump into the work bench.
⇒ Unscrew Allen screws 28.
⇒ Remove pump cover 4, valve block 29, valve body
30, and compression spring 31.
For removing intermediate disc 34 remove circlip
35.
⇒ Remove holding screw 32 and pump cylinder 33.
Remark: Pump cylinder 33 and pump plunger 18 are a
single unit and must not be interchanged.
Therefore they are not delivered separately.
2013
Fuel Pump: Dismantling and Assembling
