Maintenance5556−1/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
6/ 10

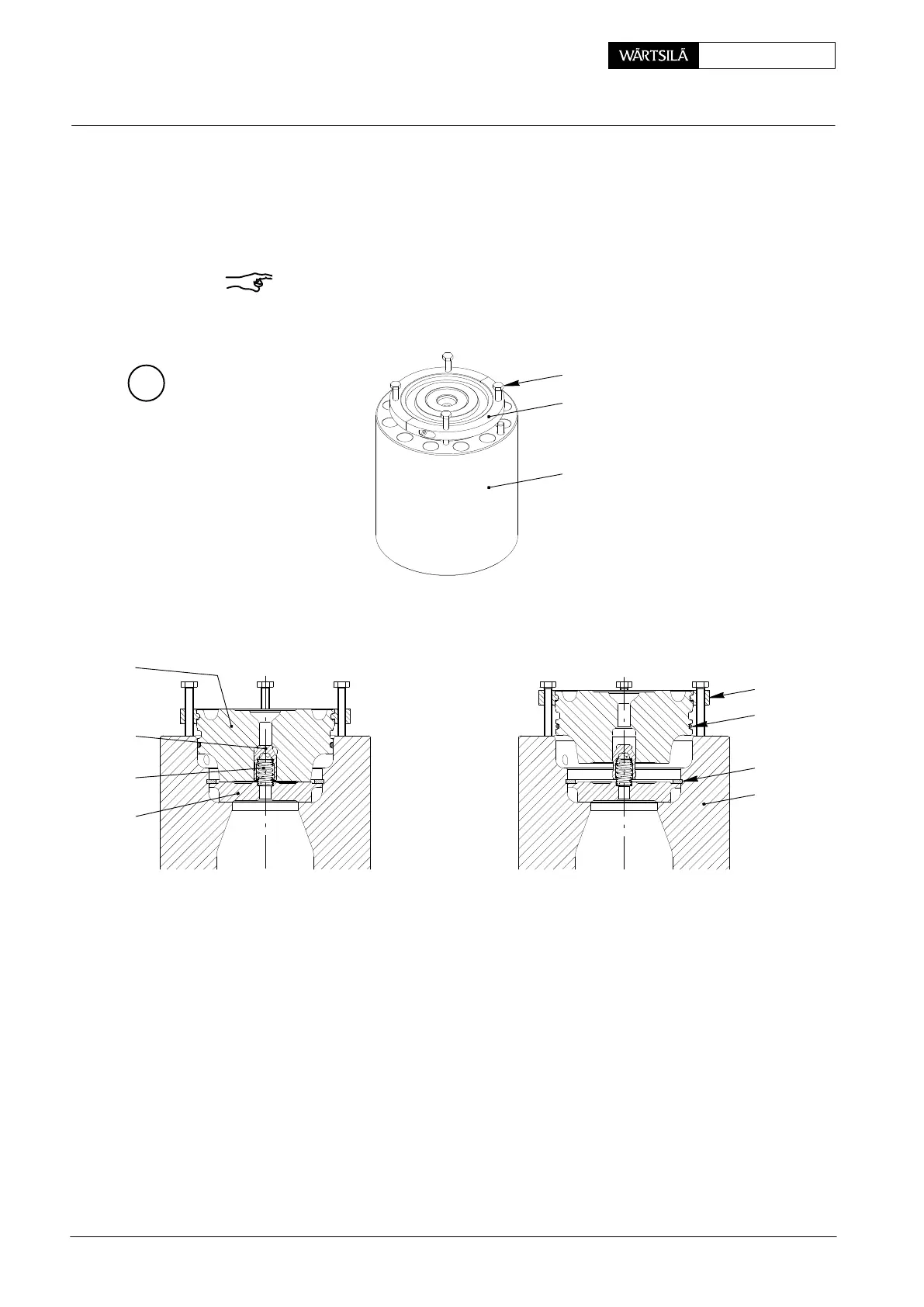

3.6 Removal of non-return valve
⇒ By means of 2-part clamping ring 94550 and the four screws M10x60 valve
block 29 can be withdrawn from pump cover 4.
⇒ Remove circlip 35 with a snap ring tong.
Remark: The non-return valve must be replaced as a unit only, i.e. valve block 29,
valve body 30, compression spring 31 and intermediate disc 34.
019.235/10
4
J
94550
M10x60
35
39
94550
4
30
29
34
31
2013
