Maintenance
9403−5/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
15/ 37
94272
94272B
94272B3
94272C
94272F
94273
1
1
1
1
1
1

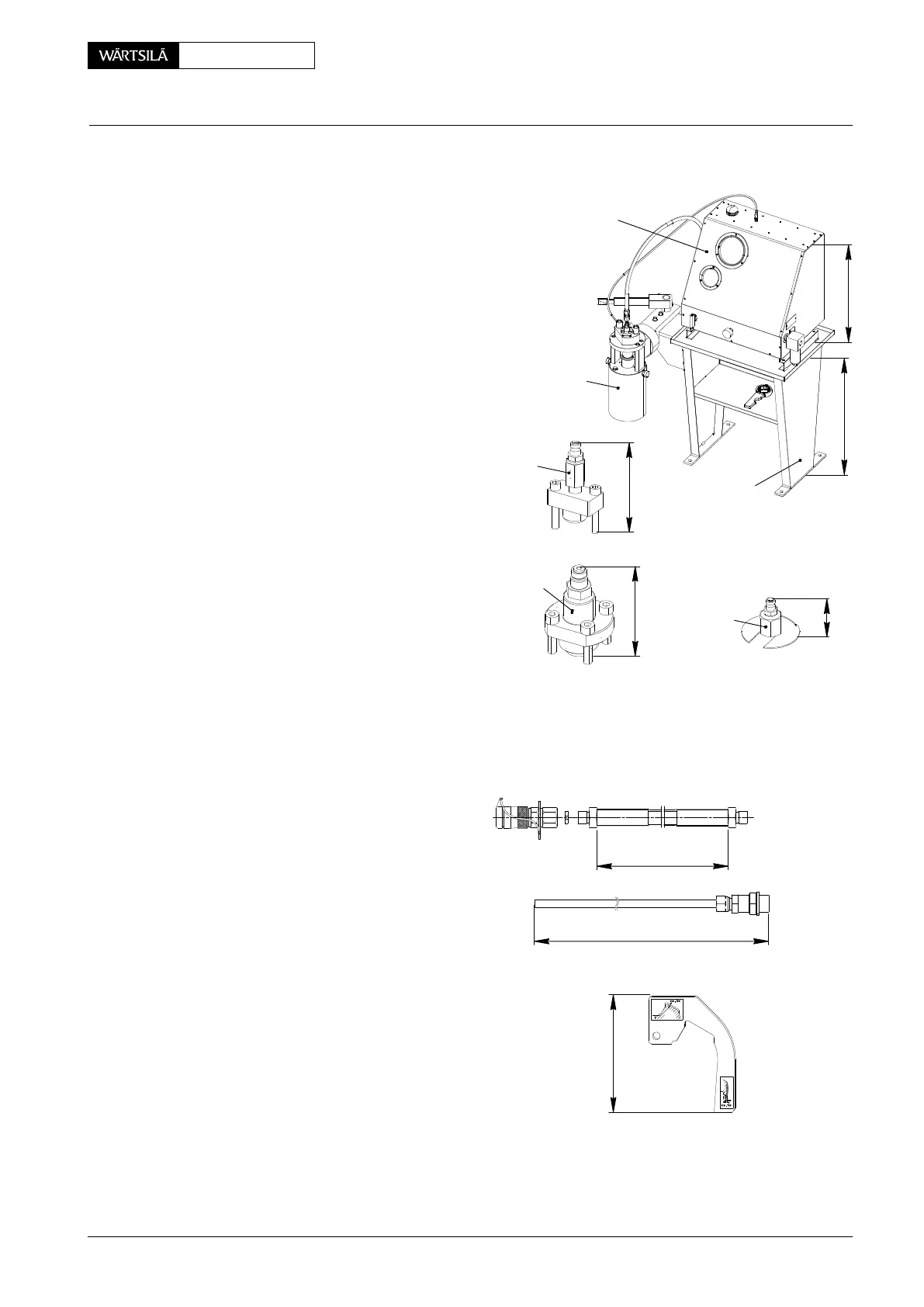

OBEL injector test bench
for setting and testing of:
− injection valve
− relief valve (cylinder cover)
− relief valve (PCV)
X = 606 mm
X = 149 mm
Connecting piece
for adjusting the injection valve
X = 124 mm
Connecting piece Mk3 ICU
for adjusting the injection valve
X = 90 mm
Safety valve holder
for checking and adjusting
Safety valve to cylinder cover
X = 68 mm
Support device
for injector test bench
Y = 852 mm
Valve holder
to injector test bench
for fastening FAST injection valve
94272B
X
94272C
X
X
Y
94272
94273
94272F
94272B3
X
WCH02509
WCH02509
WCH02510
WCH02509
94275 1 HP hose
To connectinjection valve and
hydraulic cylinder 94269B with
injector test bench
X = 1000 mm, Max. 1800 bar
WCH01208
X
94275A 1 Hose
Leak oil hose for injector test bench
X = 1500 mm
WCH02508
X
94279 1 Gauge
for checking wear and burn scar on
exhaust valve seat
X = 184 mm
002.563/98
X
Standard Tools
ER−3 / 2013-08
