Maintenance9403−5/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
18/ 37

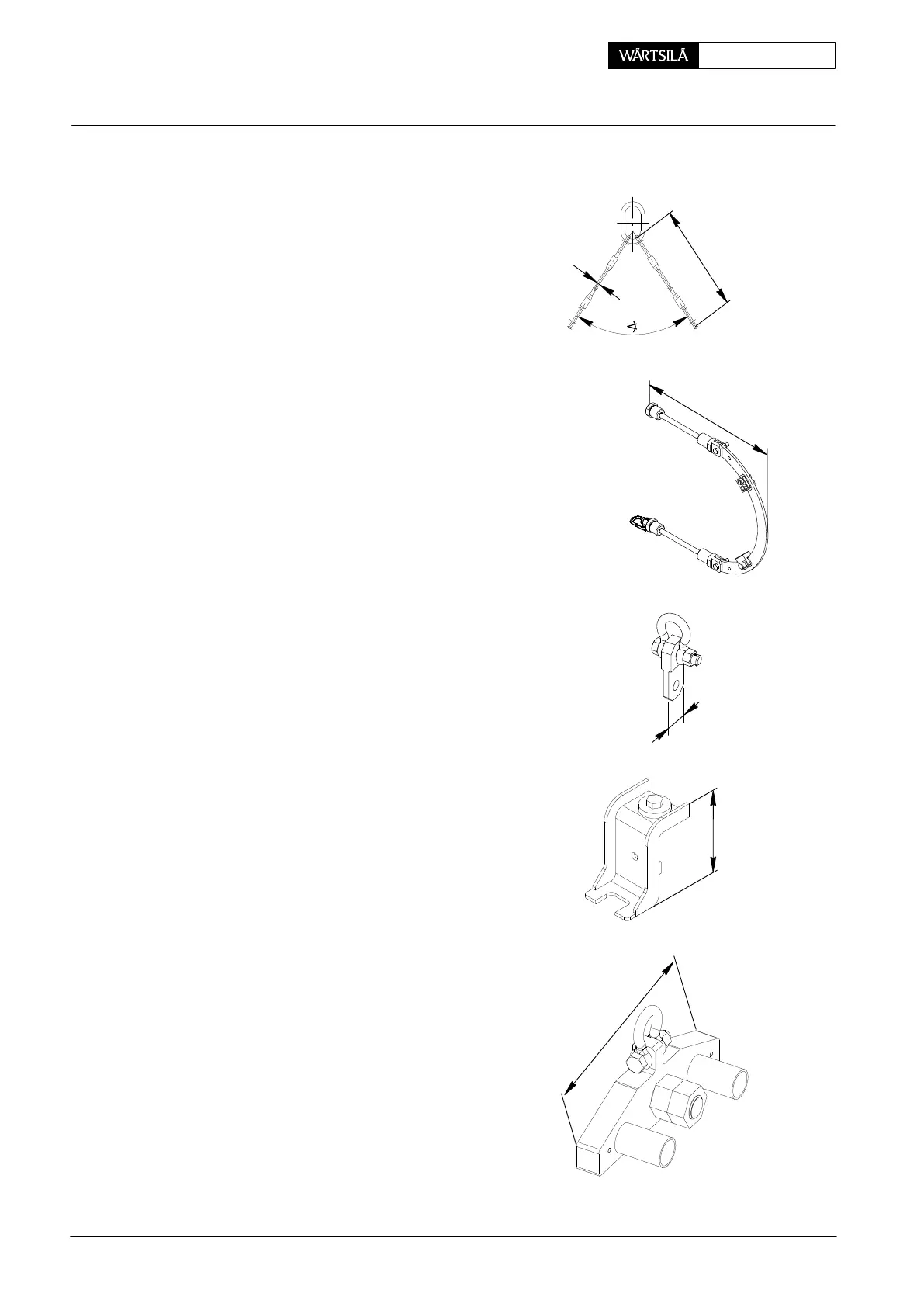

GF 94333D 1 Wire rope sling
for removal and fitting
of a crosshead pin,
and an expansion piece
X = 1238 mm
(WLL 1500 kg at 45...60_)
012.316/04
X
Ø
94334 1 Holder
for removal and fitting of connecting rod
including: 2 Fastening shafts
2 Threaded rods
1 Lifting lug
X = 1010 mm
WCH00317
X
94334A 1 Connecting element with shackle
X = 70 mm
X
GF 94335 1 Stop plate
with screw M12x40
for inspection to top end bearing
X = 215 mm
X
WCH00269
GF 94337 1 Lifting tool
for the connecting rod
X = 450 mm
(WLL 1900 kg)
X
2013 / V2
Standard Tools
