Maintenance
9403−5/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
19/ 37

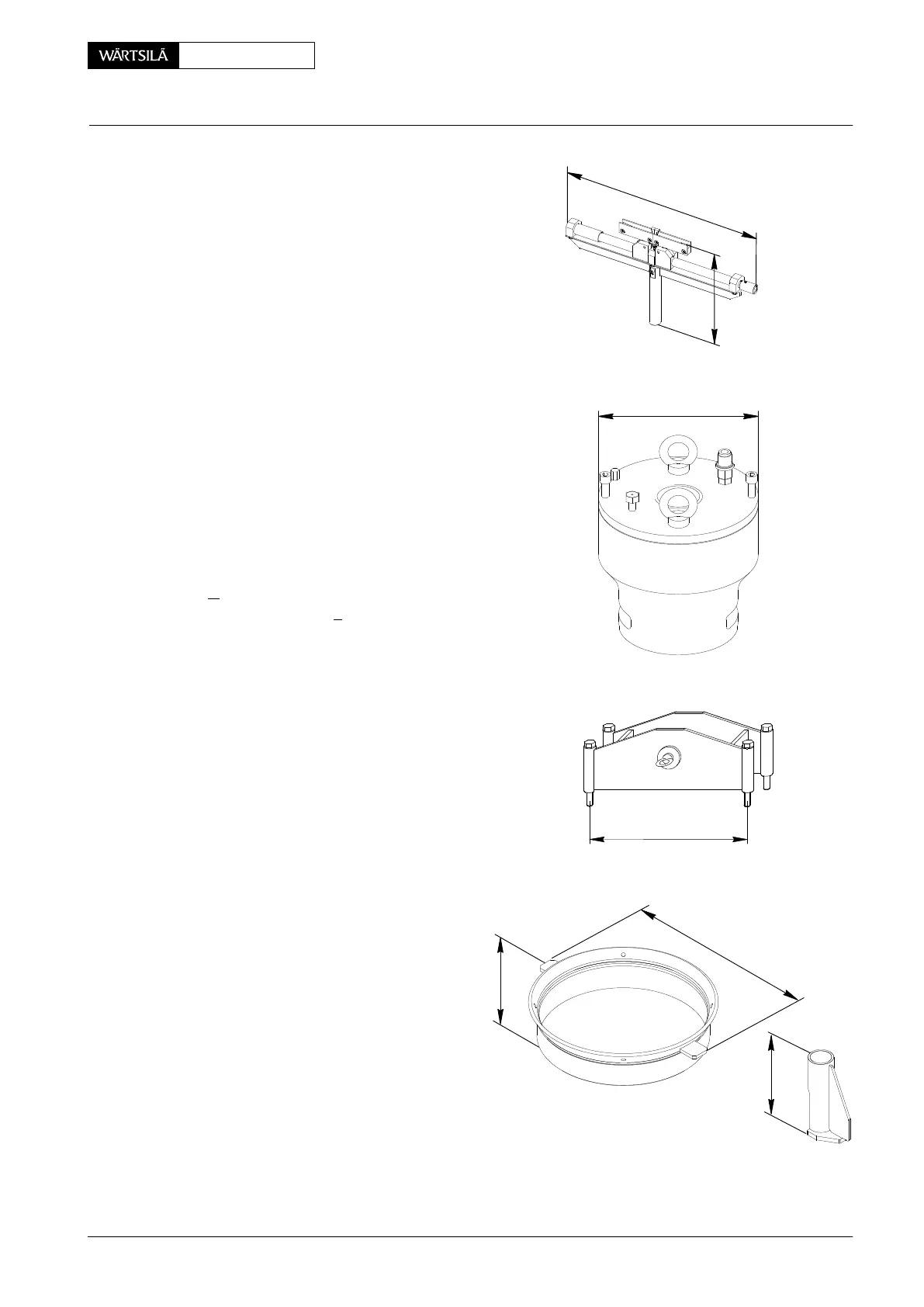

94338 1 Piston ring expander
X = 549.5 mm
Y = 285.5 mm
Y
X
17.830/08
94340
94340−KJ
2
1
Pre-tensioning jacks
for piston rod screw connection,
including a metal box
X = 110 mm
K
it with back-up and O-rings
for pre-tensioning Jack
X
010.400/02
94341 1 Piston suspension device
X = 469.8 mm
7056−03/F101197
X
GF 94342
GF 94343
1
2
Insertion funnel
for fitting the piston
X = 761.1 mm
Y = 160 mm
Mass approx. 22 kg
Locking devices
for fastening insertion funnel or
cylinder liner during removing a piston
X = 312 mm
X
Y
WCH00972
X
V2 / 2013
Standard Tools
