Maintenance
9403−5/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
25/ 37

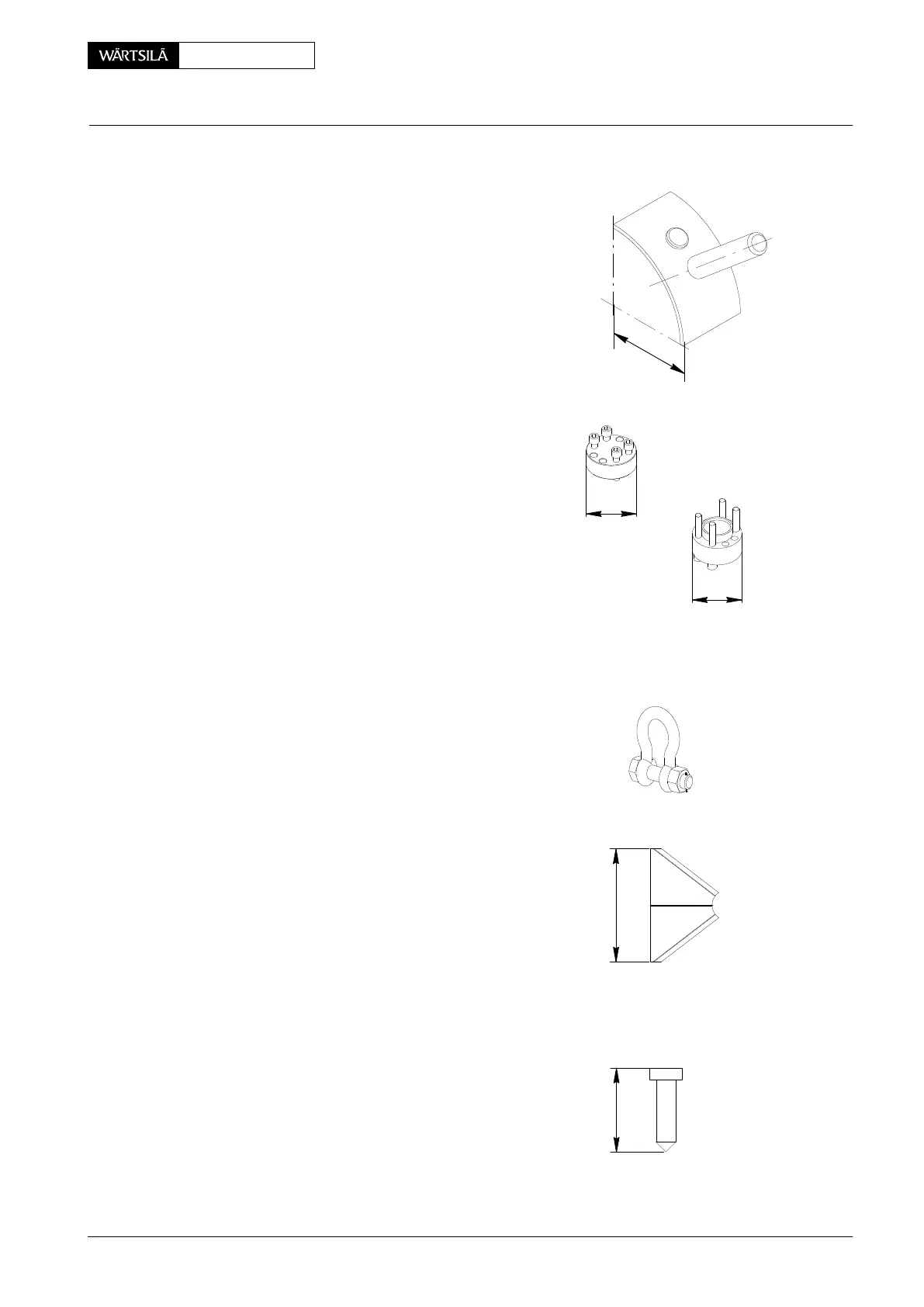

94567 1 Assembly template
for removal and fitting of bearing shells
to supply unit
X = 68 mm
701.013.609
X
013.609/05
GF 94569
GF 94569A
1
1
Blank flange
to fuel pump with
4 Screws M12x50 and
1 O-ring 42.52x2.62 mm
X = 93 mm
Blank flange
to valve housing at fuel rail with
4 Screws M12x80
X
1
= 92 mm
016.650/08
X
X
1
94572C
94572E
94572F
94572I
3
3
3
3
Shackles
(WLL 4750 kg )
Shackles
(WLL 3250 kg)
Shackles
(WLL 6500 kg)
Shackles
(WLL 2000 kg)
015.672/07
GF 94575 1 Adjusting scale
(for Heinzmann StG 10-01 Actuator)
for regulating linkage
X = 120 mm
including:
013.610/05
X
GF 94575A 1 Adjusting pin
(for Heinzmann StG 10-01 Actuator)
X = 51 mm
013.611/05
X
