Maintenance
9403−5/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
27/ 37

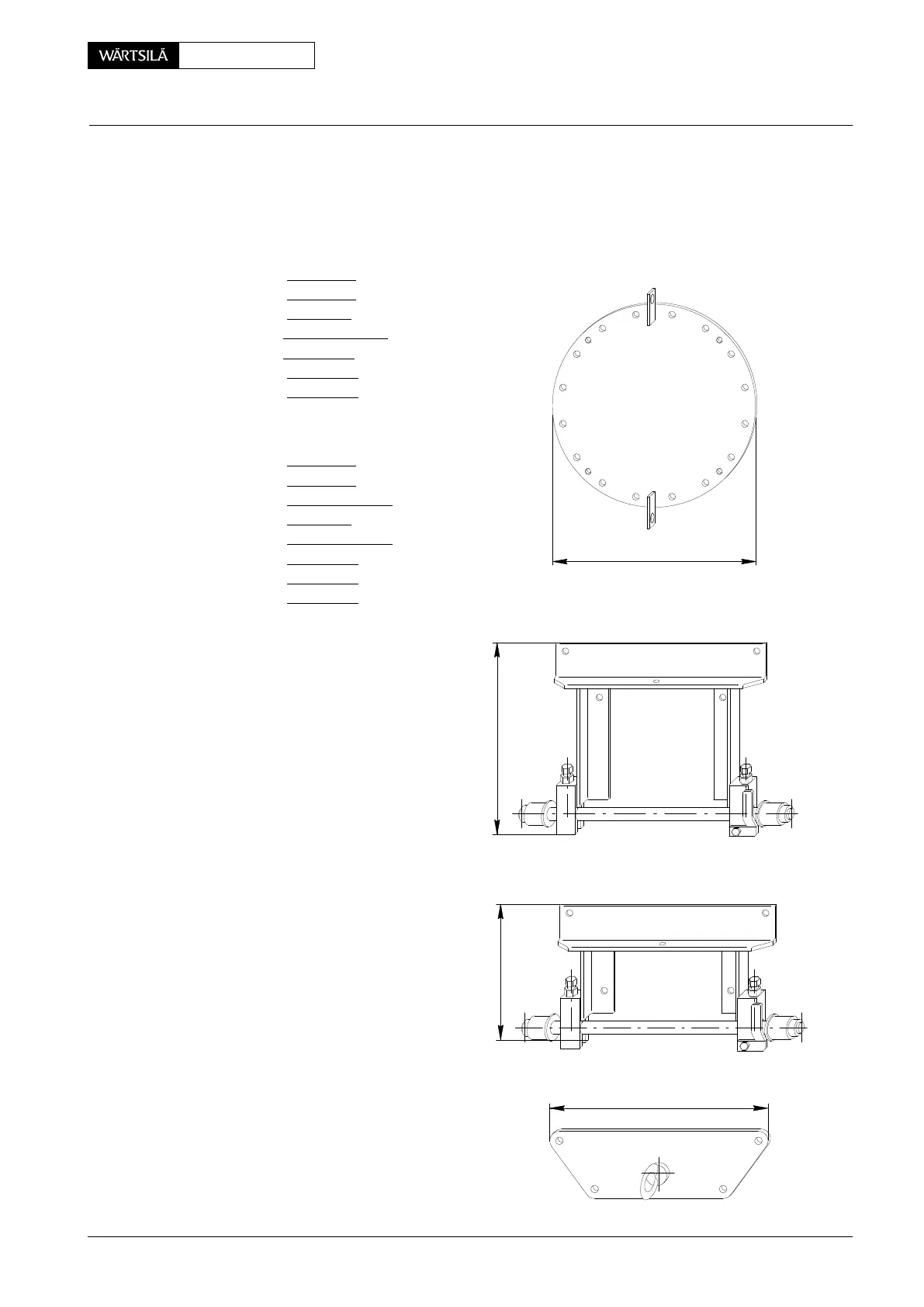

In case of a turbocharger breakdown
94653 2
1
Covers
to gas inlet housing and gas connection
X = 510 mm (TPL 73−B
)
X = 600 mm (TPL 77−B
)
X = 665 mm (MET 66S
)
X =600 mm (MET 60MA/MB
)
X =675 mm (ABB A170
)
X = 810 mm (ABB A175
)
X = 870 mm (ABB A180
)
Cover
to air connection at diffuser
X = 470 mm (TPL 73−B)
X = 555 mm (TPL 77−B
)
X = 460 mm (MET
53MA/MB)
X = 520 mm (MET 66S
)
X = 520 mm (MET 60MA/MB
)
X = 545 mm (ABB A170
)
X = 625 mm (ABB A175
)
X = 690 mm (ABB A180
)
X
000.487/93
94661 1 Pulley plate
for cooler type:
GEA 120/30/24/6
X = 605 mm
X
010.695/03
94662 1 Pulley plate
for cooler type:
GEA 150/38/24/6
X = 430 mm
X
010.383/96
94663A 1 Dismantling and assembling device
for cooler type:
GEA 120/30/24/6
X = 680 mm
004.019/96
X
Standard Tools
