Page 11
Winkhaus STV
Operating Manual EAV 0124653 0505
Subject to technical changes
Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de
Motor box for power-driven unlocking, control included,
without cable
• for transponder or wireless remote control
• optional: triggering unit for swing door opener via
floating contact
• available mounted or not mounted
Motor box EAV
1)
123 770 8
G2 motor box EAV mounted
2)
123 771 7
Motor box EAV (swing door)
3)
123 772 6
G2 motor box EAV (swing door) mounted
2) 3)
123 773 5
1)
for retrofitting simply screwing to the automatic
locking system
Caution: Pay attention to left-handed thread!
2)
if an automatic locking system + motor box EAV,
mounted, are simultaneously ordered supply of
the locking system with mounted motor box
3)
incl. signal (floating contact) for swing door opener.
NOTICE!
Please observe the following instructions when
using a swing door opener:
• Ensure that the motor can open the closing
member at any time.
• After unlocking, the control unit sends a
signal to the swing door opener which must
swivel out then immediately.
• If the swing door drive is triggered at another
point of time, malfunctions can be caused.
• If the main hook is unlocked manually, the
door may not be actuated electrically.

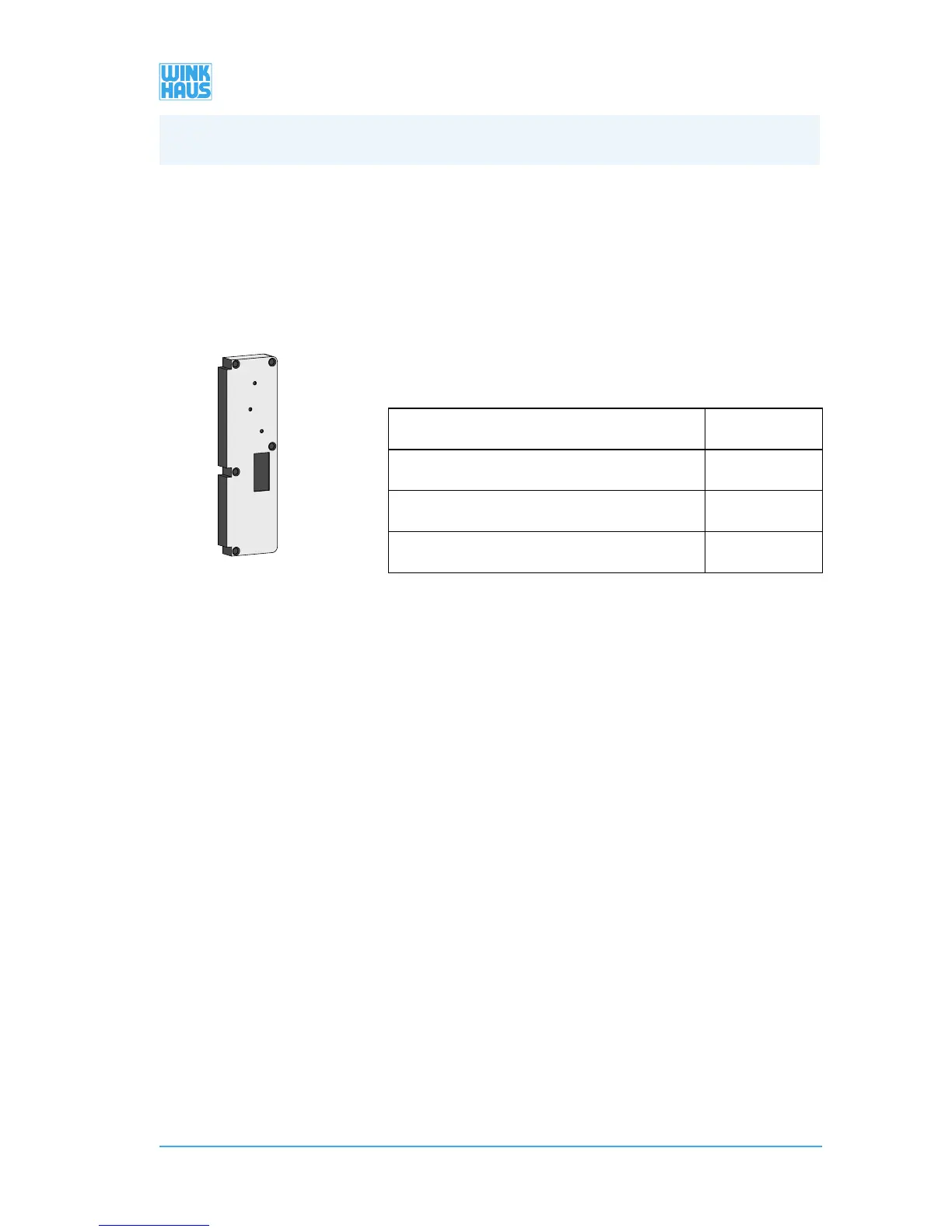

[2] Motor box
2. Product description
