3.3. Installations
DANGER!
The installation of electrical equipment requires expertise, thus
such work should only be carried out by electricians.
DANGER!
Generally, assemble and install only with the power off!
CAUTION!
It must be easily possible to lock the door mechanically, only then
check the electric function!
If you connect an intercom system take care that the button of
this system is designed as a floating contact! External voltage
must not be transmitted from the intercom system to the lock!
If the operating voltage has been applied (start-up), the motor brings the closing mem-
bers into the neutral position.

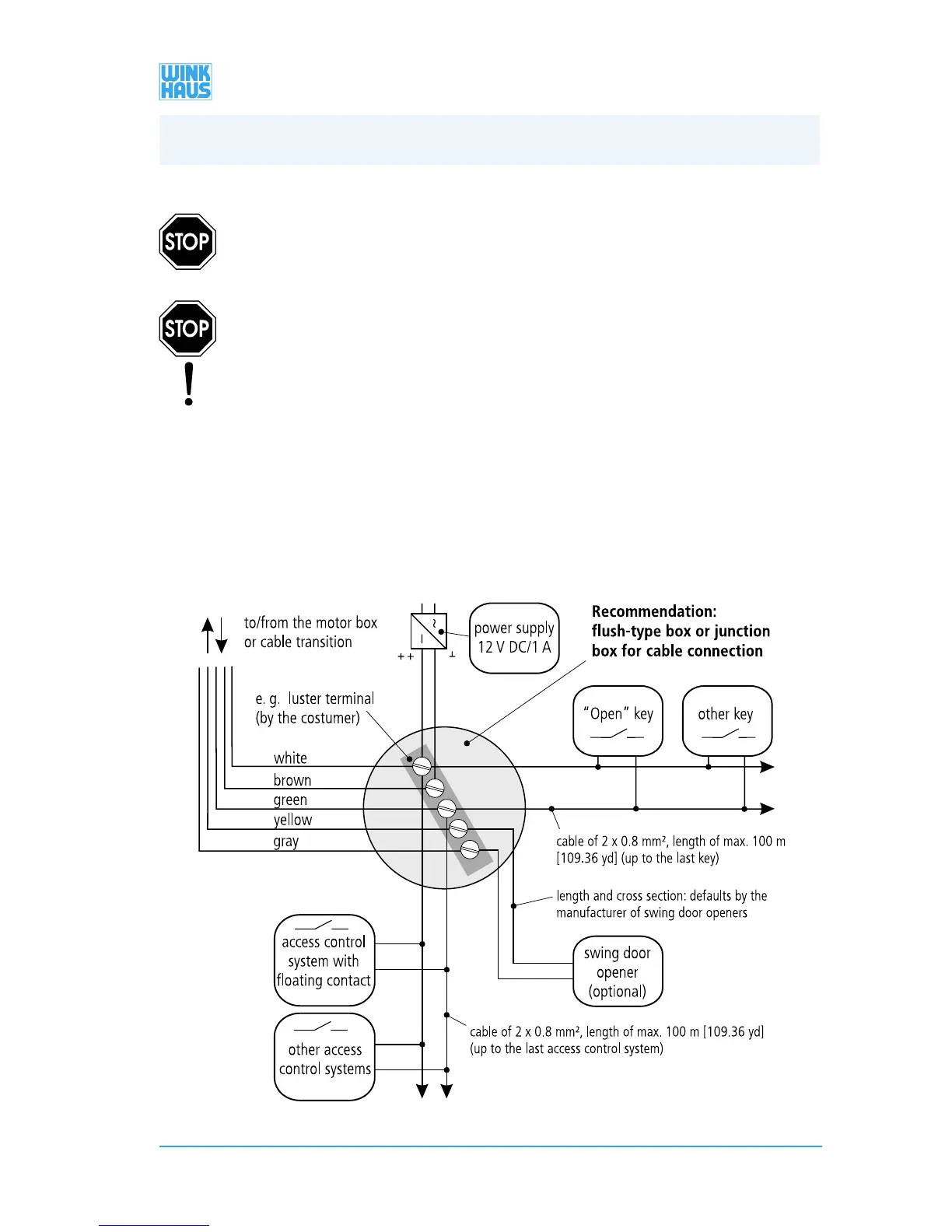

3.3.1. General connection diagram
Figure 3.3.1-1: General connection diagram
