Page 22
Winkhaus STV
Operating Manual EAV 0124653 0505
Subject to technical changes
Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de
12 V = delivery status 24 V

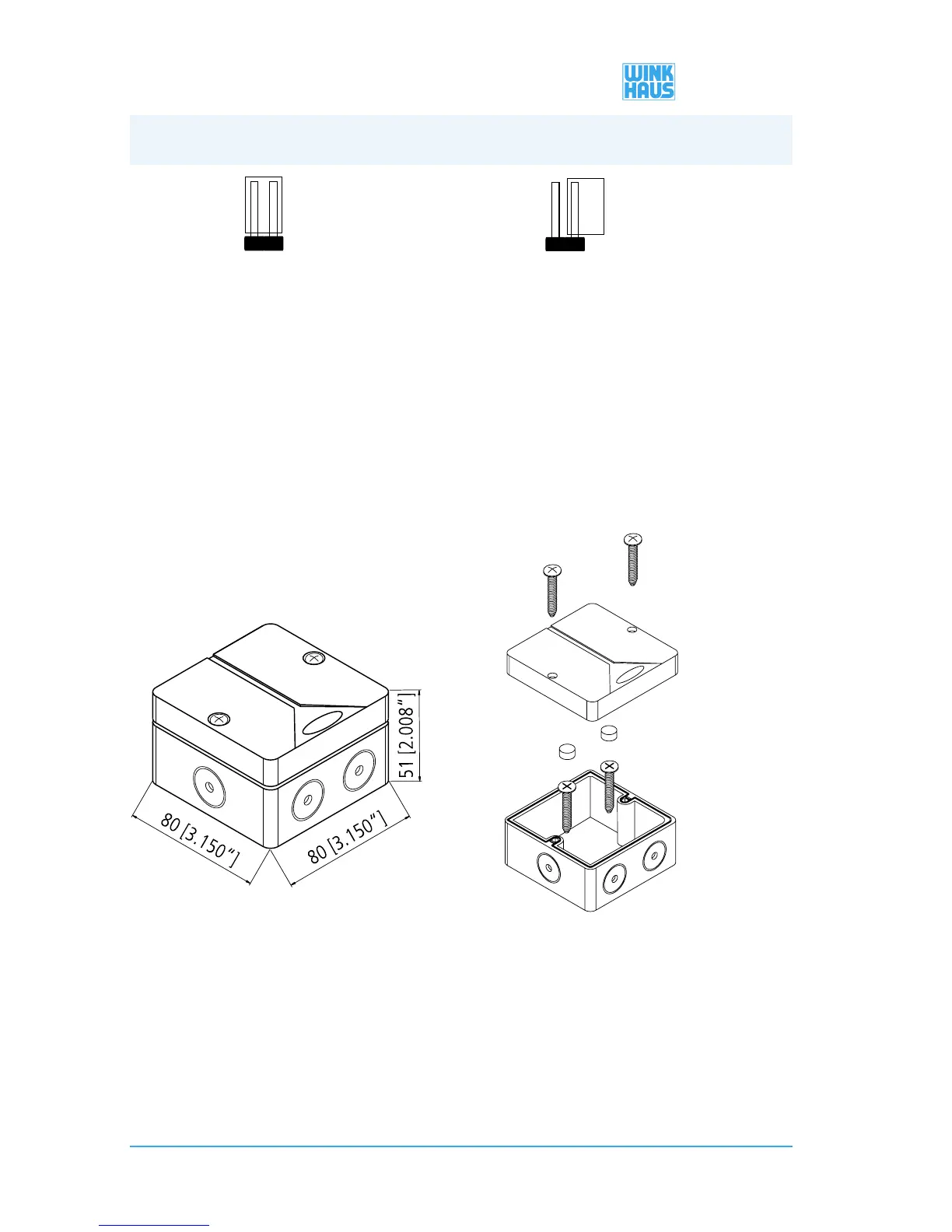

Figure 3.5.1-3: Adjustment of the jumper for voltage selection
• The default setting of the jumper is 12 V.
• The wireless receiver can be adjusted from 12 V to 24 V via the jumper.
NOTICE!
Check the proper position of the jumper before starting operation!
3.5.2. Wireless receiver (separate)
Separate wireless receiver for additional applications, such as garage door control units.
Figure 3.5.2-1: Installing the wireless receiver
Installation sequence:
• Remove the cover of the housing.
• Fasten the housing with screws.
• Push in the rubber plug (see Figure 3.5.2-1).
• Insert the circuit board of the receiver according to figure 3.5.2-2 and connect it
to the control of the additional application (for example to the garage door control
unit).
3. Installation
