Page 13
Winkhaus STV
Operating Manual EAV 0124653 0505
Subject to technical changes
Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de

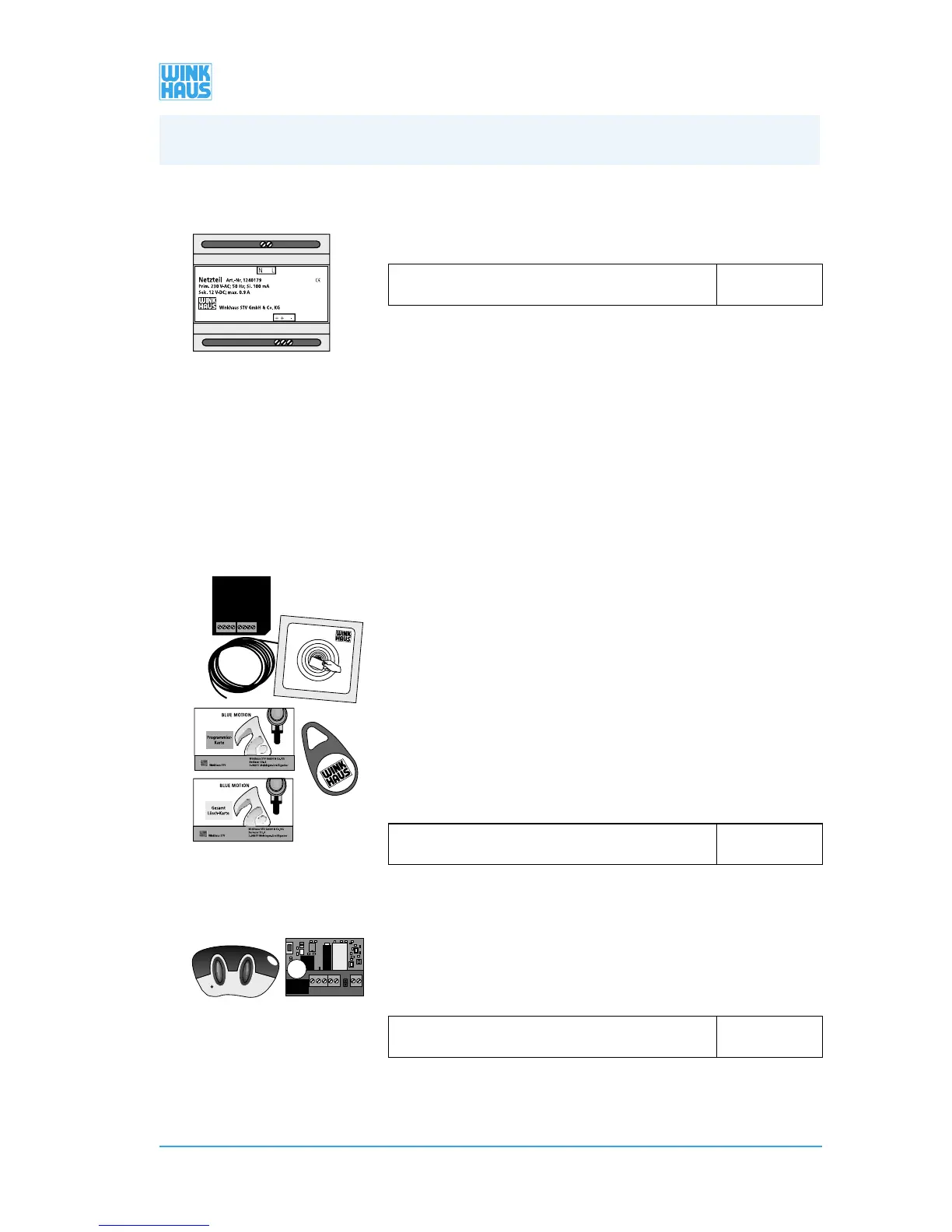

[6] Power supply
Power supply unit for EAV: 230 V, 50 Hz/12 V DC, to be
installed on a top hat mounting rail
Power supply 12 V DC/1 A 124 017 9
NOTICE!
Unless you are using a Winkhaus power supply unit,
please keep in mind the following information:
12 V DC (direct current), stabilized, min. 1 A
[7] Access control systems
From the outside the door is opened via the access control system (transponder, wireless
remote control).
Transponder set EAV
Consisting of:
• 1 reader/control unit (for flush-type box)
• 1 antenna for exposed installation (90 x 90 x 13 mm,
[3.543 x 3.543 x 0.512 “], color: white),
cable of 2.5 m [2.734 yd] fixed at the antenna
• 1 antenna sticker, weatherproof, resistant to UV light
• 3 transponder chips (key tags, color: blue, have not
been taught)
• 2 programming card transponders
(programming card = green; delete-all card = red)
Transponder set T02 EAV 123 774 4
Wireless remote control set
Consisting of:
• 1 wireless receiver (to be inserted in the flush-type box)
• 3 hand-held transmitters (taught, color: dark gray/gray)
• programming instruction + connection diagram
Wireless remote control F02, dark gray, set 3 + 1 123 775 3
NOTICE!
VdS acceptance: Only with VdS-tested access control systems!
2. Product description
