Winkhaus STV
Operating Manual EAV 0124653 0505 Subject to technical changes
Winkhaus STV GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen · Germany · www.winkhaus.de · stv@winkhaus.de
No. Terminals
1 12 V DC
2 0 V DC
3 serial interface
4 serial interface
5 antenna
6 antenna
7 floating contact C
8 floating contact NO

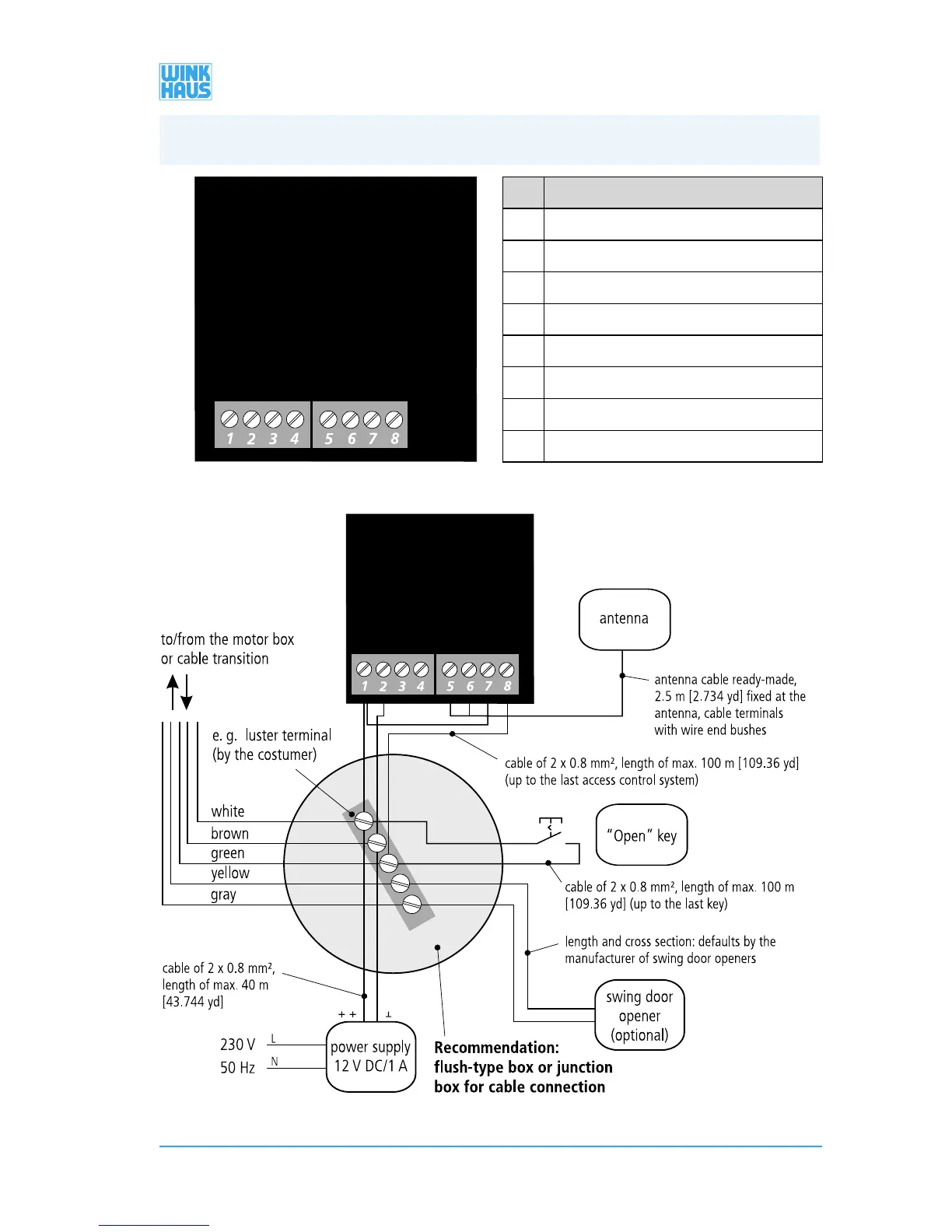

Figure 3.4-1: Terminal assignment of the transponder reader
Figure 3.4-2: Installation of the transponder reader
3. Installation
