11INSTRUCTION MANUAL AIR HEATER TYPE TR
• Make sure enough space remains to open the door
of the air heater.
• Make sure the wall can support the air heater.
• Ensure sucient clearance distance for the flue
system.

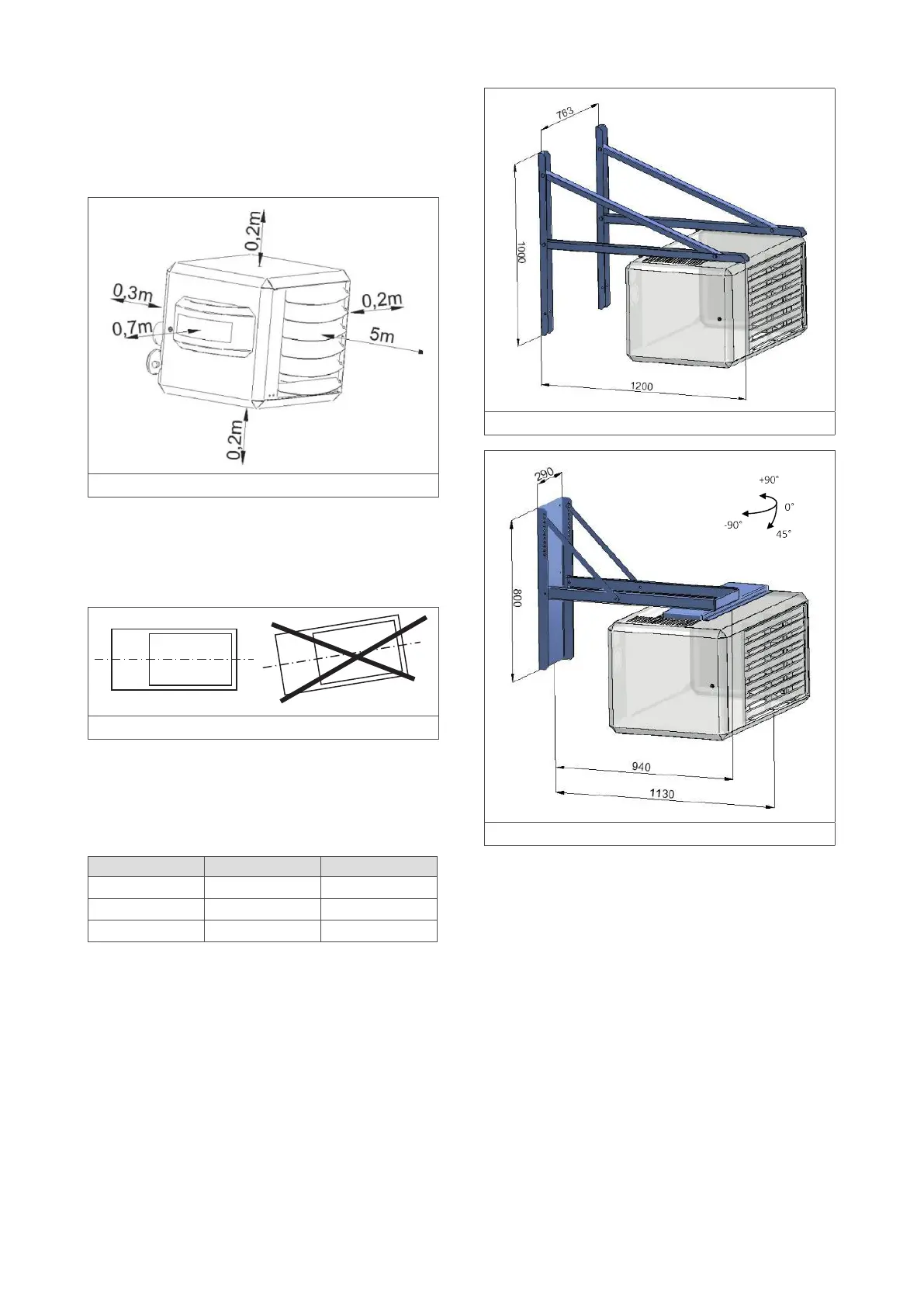

Figure 3 - Minimum clearances around the air heater
4.2.1 Orientation
• Install the heater horizontally without an inclination
(figure 4).
Figure 4 - A correct and incorrect horizontal orientation
4.2.2 Suspension
Depending on the model of your air heater, three types of
wall support can be used:
Model(s) Wall support Art. Nr.
TR10 until TR125 Standard GA8580
TR150 Standard GA8675
TR10 until TR50 Turnable* GA8670
*can be rotated horizontally or forward.
Figure 5 - Wall support (standard)
Figure 6 - Wall support (turnable)
The air heater is equipped with threaded sockets to
suspend the unit (see §3.3).
• Use the suspension kit that is compatible with your
air heater. The suspension kit is not delivered with
the air heater. Contact your supplier.
4.3 Gas type & connection
The unit is suited for the use of natural gas or propane gas.
The specific gas type that a heater is set up for can be
found on the packaging labels and on the heater badge.
The heater can be converted to another gas type. Contact
your supplier for more information.
The working and standing supply pressure must be
a minimum of 17 mbar, and a maximum of 50 mbar,
