9INSTRUCTION MANUAL AIR HEATER TYPE TR
3.3 Dimensions
A
B
H
F
4X M10
i
G
Gas O"
Electra
F
4X M10
K
Diam M
C
D
E
P
R
S
T
U

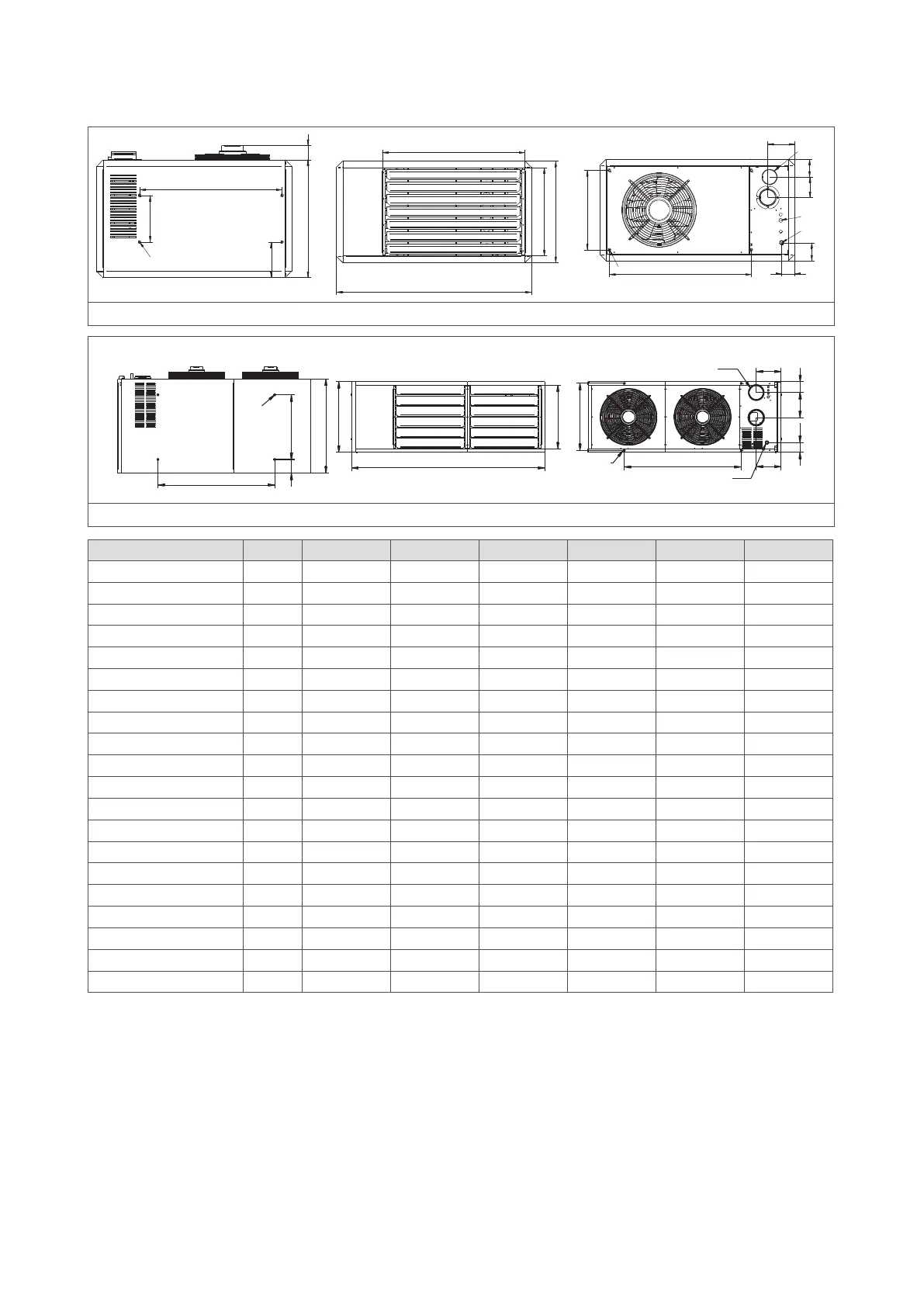

Figure 1 - Dimensions of the TR10 - TR50
A
B
C
F
H
I
K
Diam. M & N
Gas O
P
R
S
T
U
F
4x M10
G
4x M10
Figure 2 - Dimensions of the TR60 - TR150
Dimension (axial version) Unit TR10 TR15 TR20 TR24 TR28 TR40
A mm 1110 1110 1110 1040 1040 1130
B mm 290 290 290 540 540 540
C mm 630 630 630 630 630 700
D mm - - - 80 80 120
E mm 760 760 760 760 760 760
F mm - - - 763 763 763
G mm - - - 426 426 426
H mm 250 250 250 250 250 250
I mm 190 190 190 190 190 225
K mm 110 110 110 110 110 140
M mm Ø80 Ø80 Ø80 Ø80 Ø80 Ø100
N mm Ø80 Ø80 Ø80 Ø80 Ø80 Ø100
O mm 1/2" 1/2" 1/2" 1/2" 1/2" 3/4"
P mm 250 250 250 470 470 470
R mm 235 235 235 145 145 195
S mm 80 80 80 95 95 95
T mm 175 175 175 75 75 165
U mm 50 50 50 80 80 70
Suspension screw type - M10 M10 M10 M10 M10 M10
Weight kg 50 50 55 67 70 85
