Wintriss Shadow VI - Figure 2-6. Transmitter and Receiver Properly Aligned; Figure 2-7. Using Laser Alignment Tool to Properly Align Shadow

1107200 Shadow VI User Manual
page 34 Chapter 2 Installation and Checkout
receiver
phototransistor
(PT)
transmitter
funnel-
shaped
light path
If PT is in funnel-shaped
light path, Shadow is in
alignment, even if optic
heads are not
perfectly aligned.
light beams
plane of
alignment

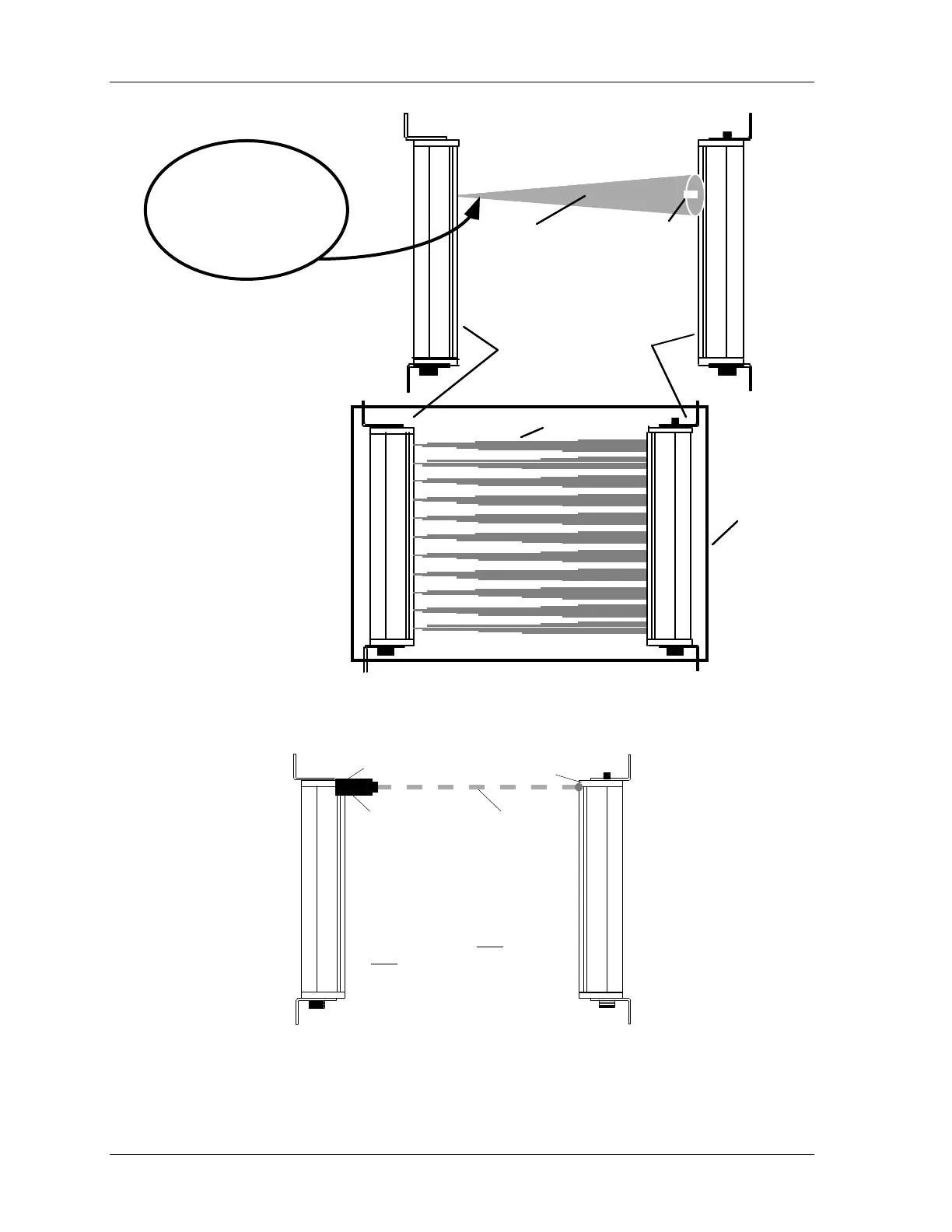

Figure 2-6. Transmitter and Receiver Properly Aligned
receiver
transmitter
Laser
Alignment
Tool
laser's
alignment path
Laser Alignment Tool is used
to achieve optimum alignment.
Installing it at the very
top and
very
bottom of optic head will
not block any beams.
Figure 2-7. Using Laser Alignment Tool to Properly Align Shadow
