Fixed and Floating Blanking Chapter 3 page 73
intend to blank more than 1 beam, install the master blanking window on the lowest
blanked beam at this time. (The next section explains how to install the slave.)
3. Position the master blanking window over the front of the receiver. Loosen the
thumbscrew on the right side. This will allow it to slide down easily.
receiver
master
blanking
window
cable attaches
at top
thumbscrew
mating
hole
remove protective
cap to attach cable
(must not
interfere with
light beams)
alignment
indicators
blanking window connector

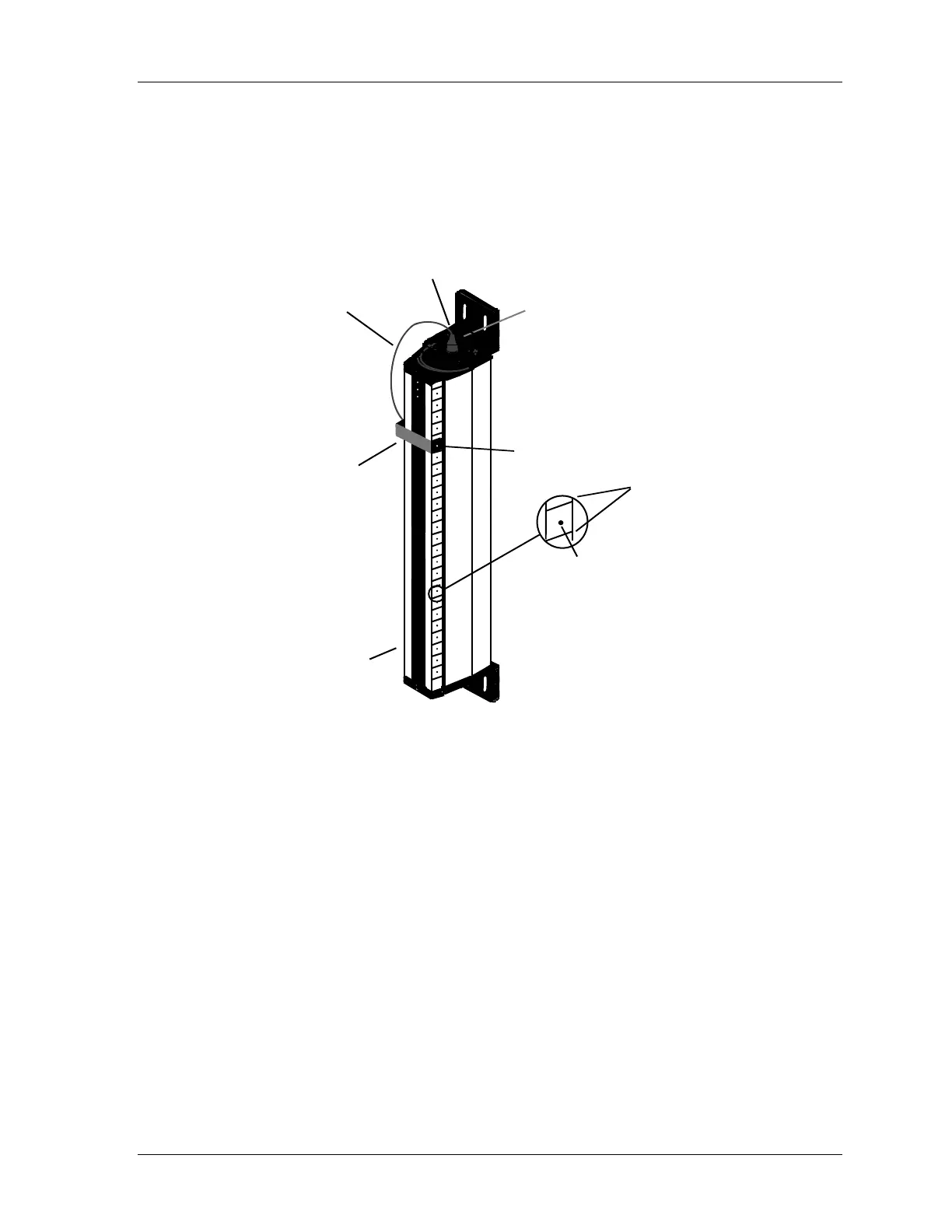

Figure 3-1. Connecting Master Blanking Window
