Wintriss Shadow VI - Figure 2-14. Location of Components, Shadow VI Control

1107200 Shadow VI User Manual
page 44 Chapter 2 Installation and Checkout
TB2
1
1
TB1
TB4
FSD1 FSD2 STAT
MPCE1 MPCE2 RESET XMTR INT
J15
J14
INT
DS8
GND
DS6
ON OFF
PWR UP
RESET
DISABLE
RESET ON
INTERRUPT
S4
S1
FLOATING
WINDOW
STAT=GRN
OPTIONS
TRANSMITTER 2
VCR VCC GND SHUTDOWN SYNC SHIELD
VCR VCC GNDSHUTDOWNSYNCSHIELD
TRANSMITTER 1
TB3
1
FWIN VCC GND 2A SYNC SHIELD2B
FWIN VCC GND 1A SYNC SHIELD1B
RECEIVER 2
RECEIVER 1
1 SET
J12
DS5
TB5
1
GRN AMB RED YEL V-OUT
J13
F2
F3
K1 K2
F1
S2
115 V
DS1
DS2
K3
F4
CAUTION
POWER
TRANSFORMER
POWER TB1
VOLTAGE
SWITCH
J11
DISPLAY
CONNECTOR
OPTIC HEADS
POWER LED
DS4
OPTIC HEADS
POWER LED
DS3
OBSTRUCTION
LEDS
SS INDICATOR
OUTPUTS
1 SET/2 SETS
JUMPERS
UPPER 1 - 10 (#1)
UPPER 1-10
UPPER 1 - 10 (#1)
STOP CIRCUITS
TRANSMITTER
RECEIVER
LOWER 11 - 20 (#2)
LOWER 11 - 20
LOWER 11 - 20 (#2)
STATUS
RELAY
KEYLOCK
SWITCH
CONNECTOR
FUSES
MPCE1
JUMPER
MPCE1 LED
MPCE2 LED
MPCE2
JUMPER
TRANSMITTER
ACTIVE
LED
RESET ON
LED

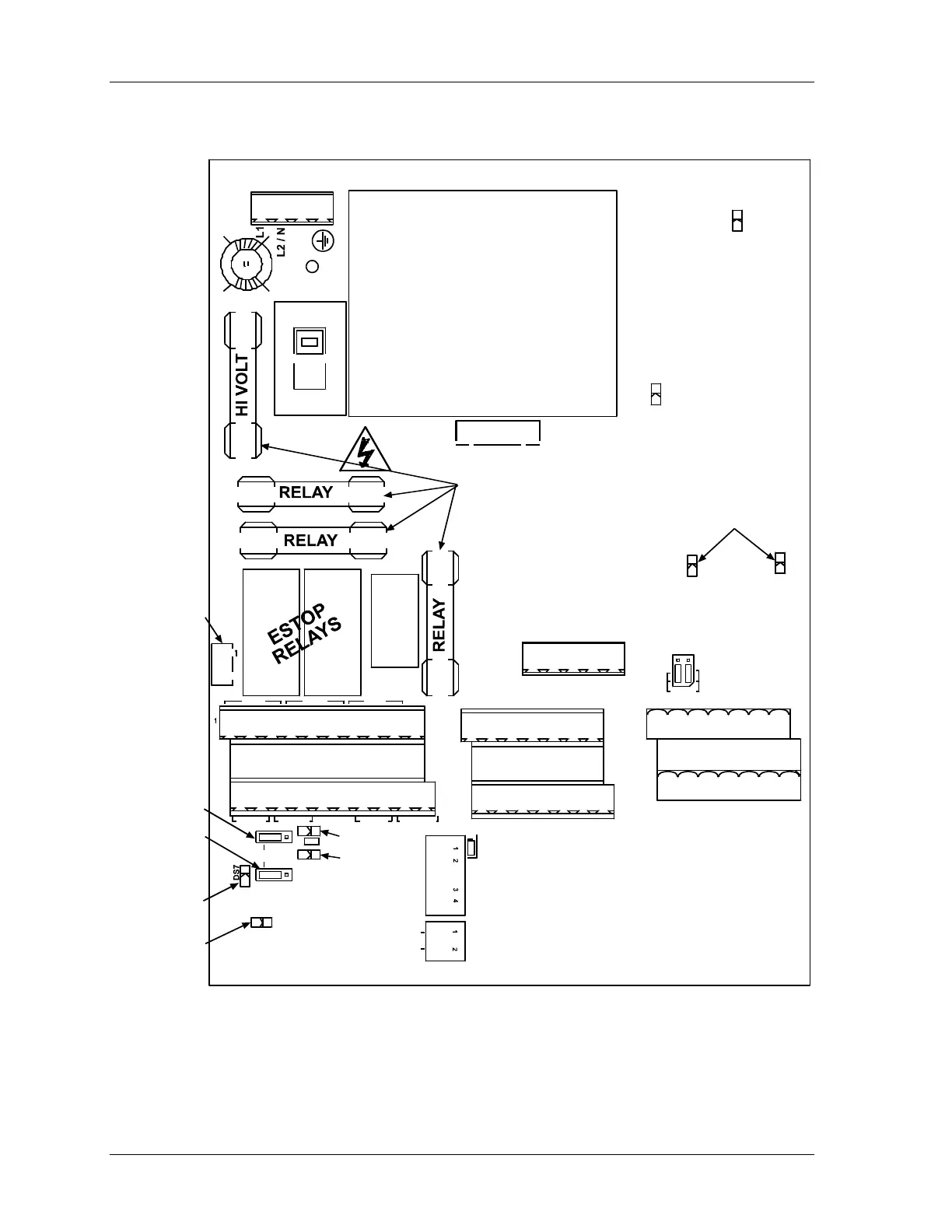

Figure 2-14. Location of Components, Shadow VI Control
(Important components shown and labeled)
