10 Wire
definition

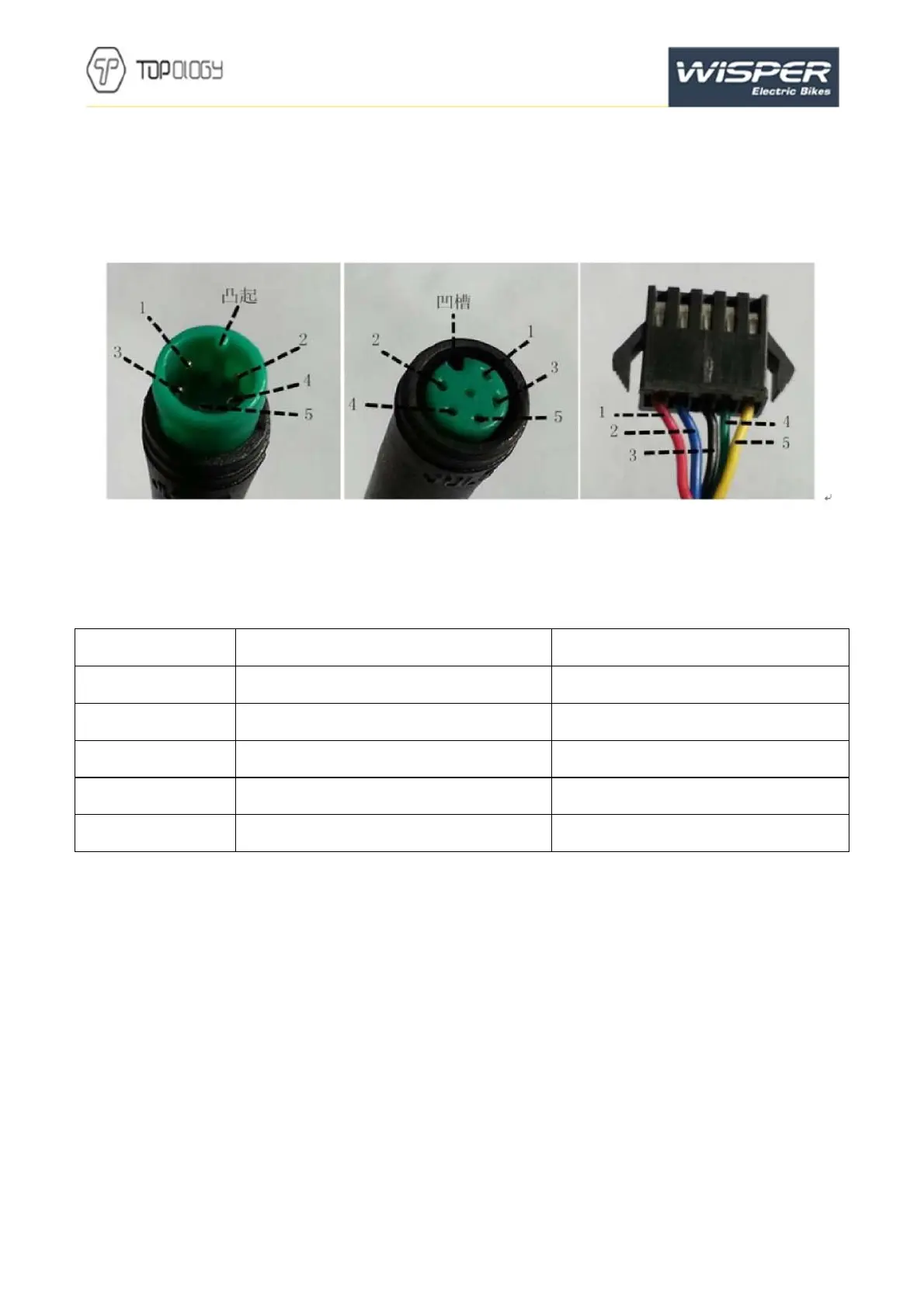

Wires out of the display
wires connect to the display connector to controller
Table 1 wires definition
No. Color Function
1 Red(VCC) VCC
2 Blue(Kp) Power control wire of the controller
3 Black (GND) GND of display
4 Green(RX) Data receive of the display
5 Yellow(TX) Data transmit of the display
C. Note
Pay attention to the security, do not plug the display in and out the when the power is on
Try to avoid exposure to harsh environments like heavy rain, heavy snow and strong sunlight
When the display can’t be used normally it should be sent for repair as soon as possible
