Operating Manual V-Drive
+
/V-Drive economy
Page en-8
Index: 11 2022 D005924 Release: 30.04.2019
4.4 Performance Statistics
Please refer to our catalogue or our Internet page for the maximum permitted torques and
speeds: www.wittenstein-alpha.de/en.
 Please consult our Customer Service Department (see 1.1) if your gearbox is older
than a year. In this way you receive valid data.
4.5 Noise emission
Depending on the gearbox type and product size, the continuous sound pressure level is up
to70 dB(A).
Please contact our Customer Service Department if you need information regarding your
particular product.

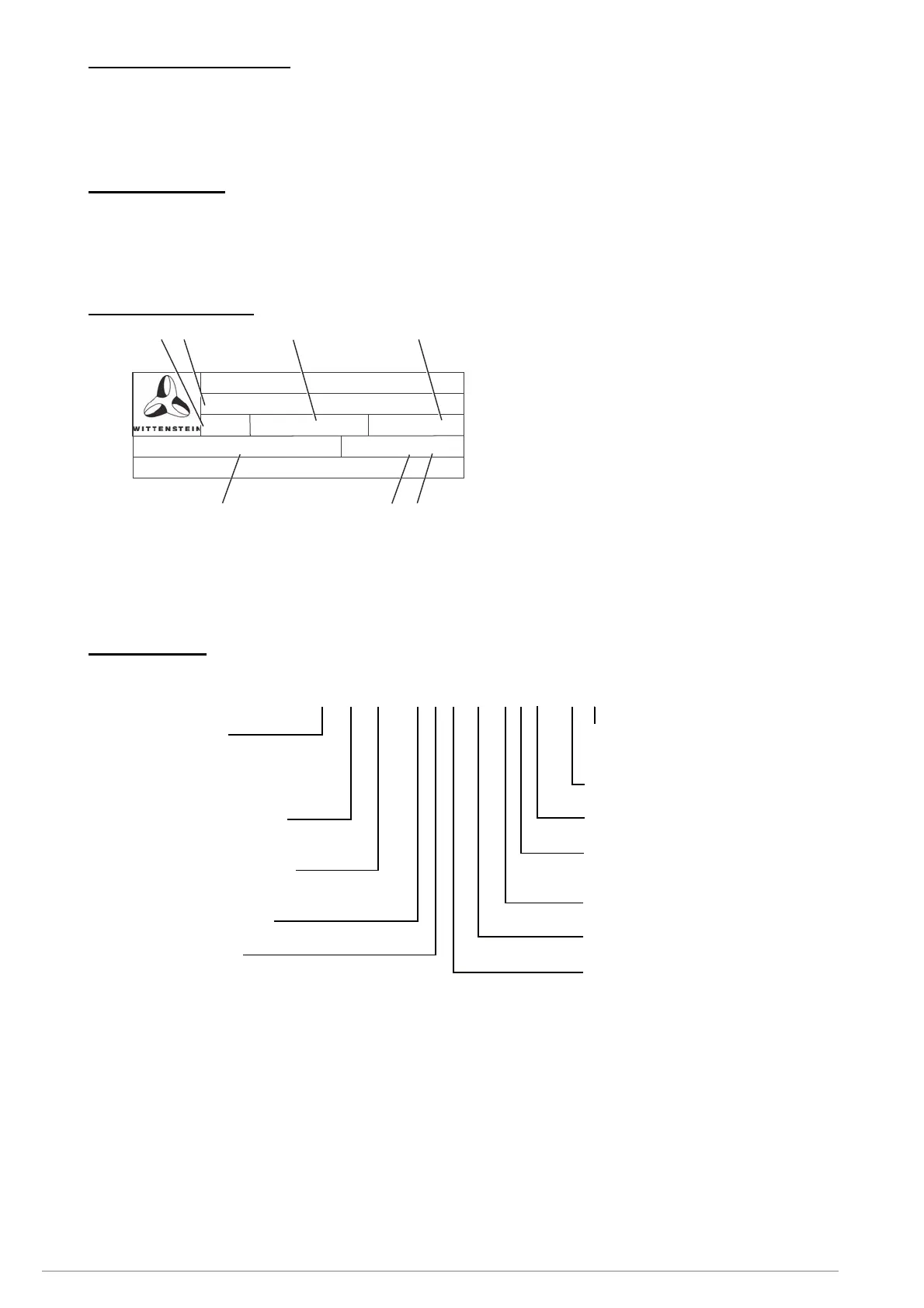

4.6 Identification Plate
Fig. 4.4
The following specifications can be found on
the identification plate:
A Ordering Key
B Ratio
C Article Code
D Serial number
E Lubricant
F Mounting position
G Lubricant quantity for the designated
mounting position
4.7 Ordering Key
Fig 4.5
.
A
WITTENSTEIN alpha GmbH - Walter-Wittenstein-Str.1 - 97999 Igersheim
Article Code: 20019045
Ratio: 40
Type: VDH 063-MF1-40 -141-0G
Serial No.: 1234567
Lubrication: Oil Castrol Tribol 800/220
Mounting Pos.: G 1000 ccm
Tightening Torques: Before Mounting See Operation Manual !
Lubrication: Oil Castrol Optigear Synthetic 800/220
B C
D
E
F
G
Gearhead type
VDT = Flange
VDS = Solid shaft
VDH = Hollow shaft
Gearhead type design
e = economy (VDSe, VDHe)
Distance between axes
040, 050, 063, 080, 100
Gearhead variations
Gearhead model
VDH
+
/VDHe - Number of
shrink discs
Mounting position
Backlash
Clamping hub bore hole
diameter
Output shape
Ratios i
Number of stages
VDT _ 050 - M F 1 - 7 - 0 3 1 - AC 0
