Operating Manual V-Drive
+
/V-Drive economy
Page en-6
Index: 11 2022 D005924 Release: 30.04.2019
4.1.3 “VDS
+
“ with output shaft on both sides
The output shaft is available in the following forms:
• Smooth face or
• With groove for a feather key (according to DIN 6885).
4.1.4 “VDSe“ with output shaft
The output shaft is available in the following forms:
• Smooth face or
• With groove for a feather key (according to DIN 6885).
4.1.5 “VDSe“ with output shaft on both sides
The output shaft is available in the following forms:
• Smooth face or
• With groove for a feather key (according to DIN 6885).

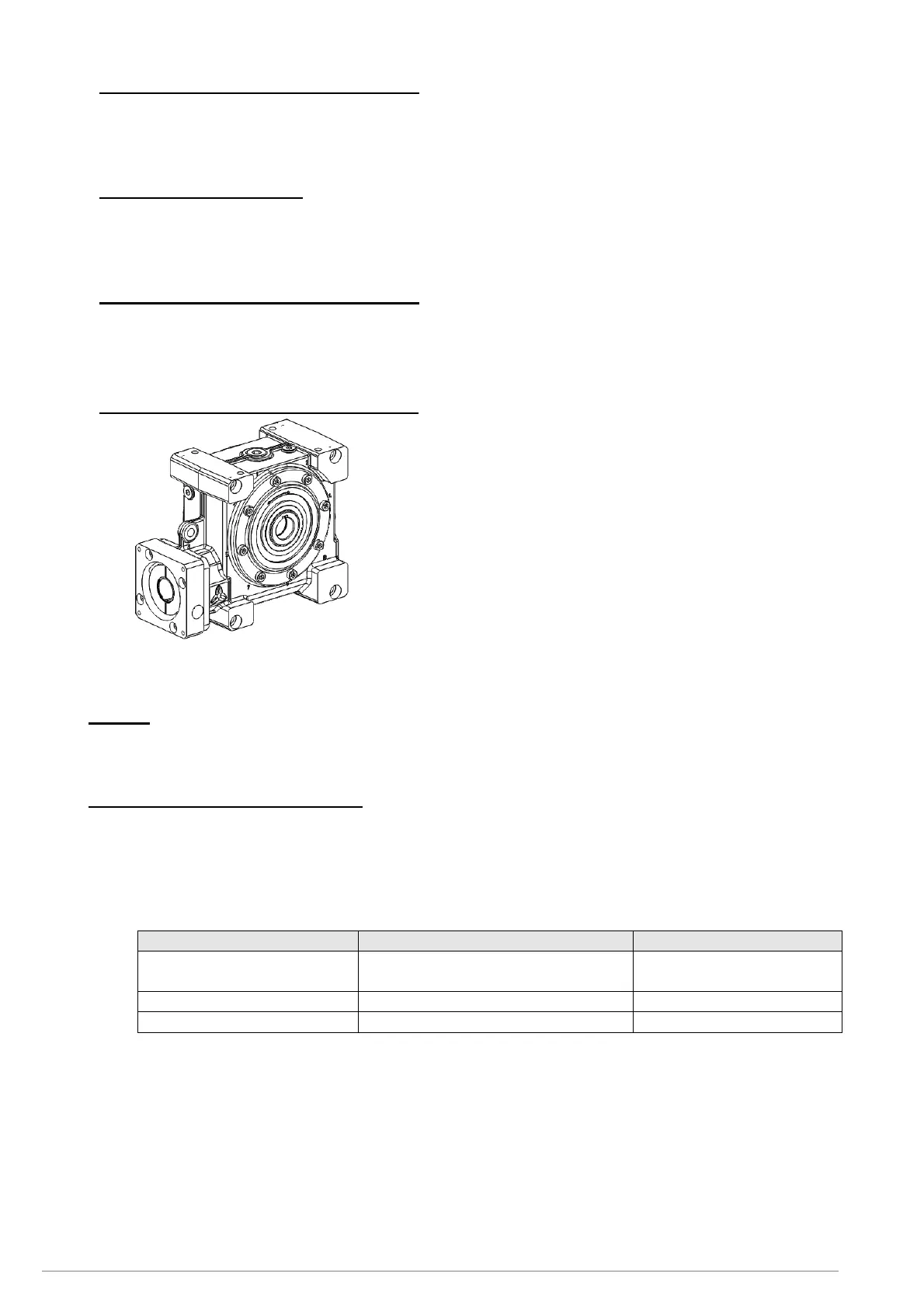

4.1.6 “VDH
+
/VDHe” with hollow output shaft
Fig 4.3
The output shaft is available in the following forms:
• Smooth face or
• With groove for a feather key (according to DIN 6885).
For the load shaft, we recommend the tolerance h6
(DIN ISO 286). The material must have a minimum yield
stress of 385 N/mm².
4.2 Weight
The weight of the gearbox ranges from 4 to 62 kg.
 The tables in section 5.2 help you in a more exact specification of the weights.
4.3 Quantity of lubricant and types
 Please observe the instructions in the “General Safety Instructions” in
section 3.3.1 .
All gearboxes are filled by the manufacturer with synthetic gear oil of viscosity class
ISO VG 220.
The following table specifies all permitted oils of the viscosity class ISO VG 220. You can find
additional information from the manufacturer at the specified Internet addresses.
Manufacturer Lubricant Internet address
Castrol
OPTIGEAR SYNTHETIC 800/220
(formerly: Tribol 800/220)
www.castrol.com
Fuchs Renolin PG 220 www.fuchs-oil.de
Klüber Klübersynth GH 6-220 www.klueber.com
Table 4.1
The filled lubricant and the required lubricant quantities are specified on the identification
plate. These apply for the mounting position stated with the order.
 Correct the lubricant quantity, if required, according to the following tables.
The ambient temperature may not be under -15 °C and not over +40 °C. Operating
temperature may not exceed +90 °C.
Divergent operating conditions may make different lubricant quantities and different
lubricants necessary.
 In these cases, please consult our Customer Service Department (see 1.1).
