Operating Manual V-Drive
+
/V-Drive economy
Page en-22
Index: 11 2022 D005924 Release: 30.04.2019
9.3 Disassembling the motor

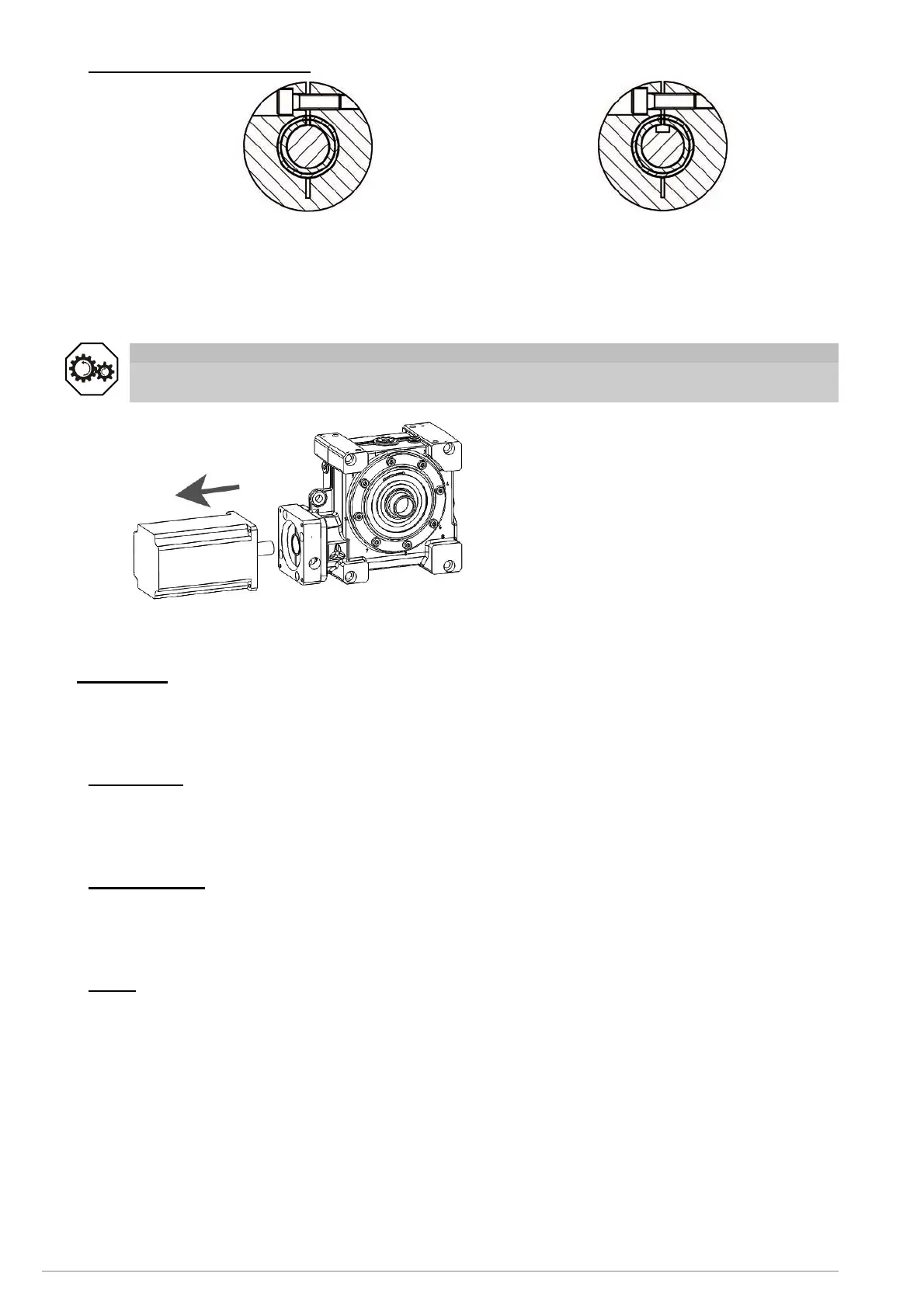

Smooth shaft with spacer sleeve Grooved shaft with spacer sleeve
Fig.9.2
For gearboxes with motor mounting, the motor shaft and the gearhead's drive shaft were
connected with a clamping hub. A slotted spacer sleeve was additionally used for certain
motor shaft diameters and applications (see fig. 9.2).
Attention
Distortion can damage the motor and the gearbox.
Ensure that the motor is dismantled in a vertical position.
Fig. 9.3
Remove the plug stoppers from the
mounting bores of the adapter plate.
Loosen the screws in the clamping hub.
Loosen the screws between motor and
adapter plate.
∇ The motor must allow itself to be removed
“easily”.
Separate the motor and the gearbox.
The adapter plate and the spacer sleeve are
part of the gear unit. Should you wish to return
the gear unit, please include these parts.
10 Disposal
If our product is no longer of use and you wish to dispose of it, refer to the instructions here.
If you have any questions regarding ecological disposal methods, please consult our
Customer Service Department (see 1.1).
10.1 Lubricants
Please observe the instructions in the „General Safety Instructions” in section
3.3.1.
Allow all the lubricant to drain out and dispose of it according to regulations.
10.2 Sealing rings
Remove the sealing rings from the gearbox, and clean them
of oil and grease residues.
Dispose of the sealing rings as composite material (metal/plastic)
10.3 Metal
Divide up the remainder of the gearbox, if possible, into:
- iron
- aluminium (e.g. adapter plate), and
- non-ferrous heavy metal (e.g. motor windings).
