V-Drive
+
/V-Drive economy Operating Manual
Page en-9
Release: 30.04.2019 2022 D005924 Index: 11
5 Delivery Status, Transport, Storage
5.1 Delivery Status
The gearboxes are wrapped in foil (PE) and foamed (diphenylmethane) into the cardboard
box.
Please dispose of packing material according to the valid national regulations.
All gearboxes are treated with an anti-corrosion agent at the gear input and output.
The gearboxes are filled with lubricant by the manufacturer.
5.2 Transport
No special direction or position is prescribed to transport the gearbox.
The tables shown below are designed to help you specify the weights of your gearbox.
The masses refer to the gearboxes with standard adapter plates and the least oil level. With
a different adapter plate and/or a different oil level, the actual mass can deviate by up to
10%.
Weight [kg]
Size 040 050 063 080 100
Version
VDT
+
–
8.8 14.5 31 62
VDS
+
–
8.5 15 32 61
VDSe 4.1 7.7 12.5 – –
VDH
+
4
7.4 12 26 50
VDHe 4 7.4 12 – –
Table 5.1
5.2.1 Transport using hoisting equipment
DANGER!
Falling loads or breakage of fastening equipment can cause injury.
Do not stand under suspended loads.
Keep as safe a distance as possible from securing equipment.
Attention
Falling or hard placement can damage the gearbox.
Only use hoisting and securing equipment which is permitted for the size/weight of your
gearbox.
Ensure that the load is slowly and carefully handled and placed.

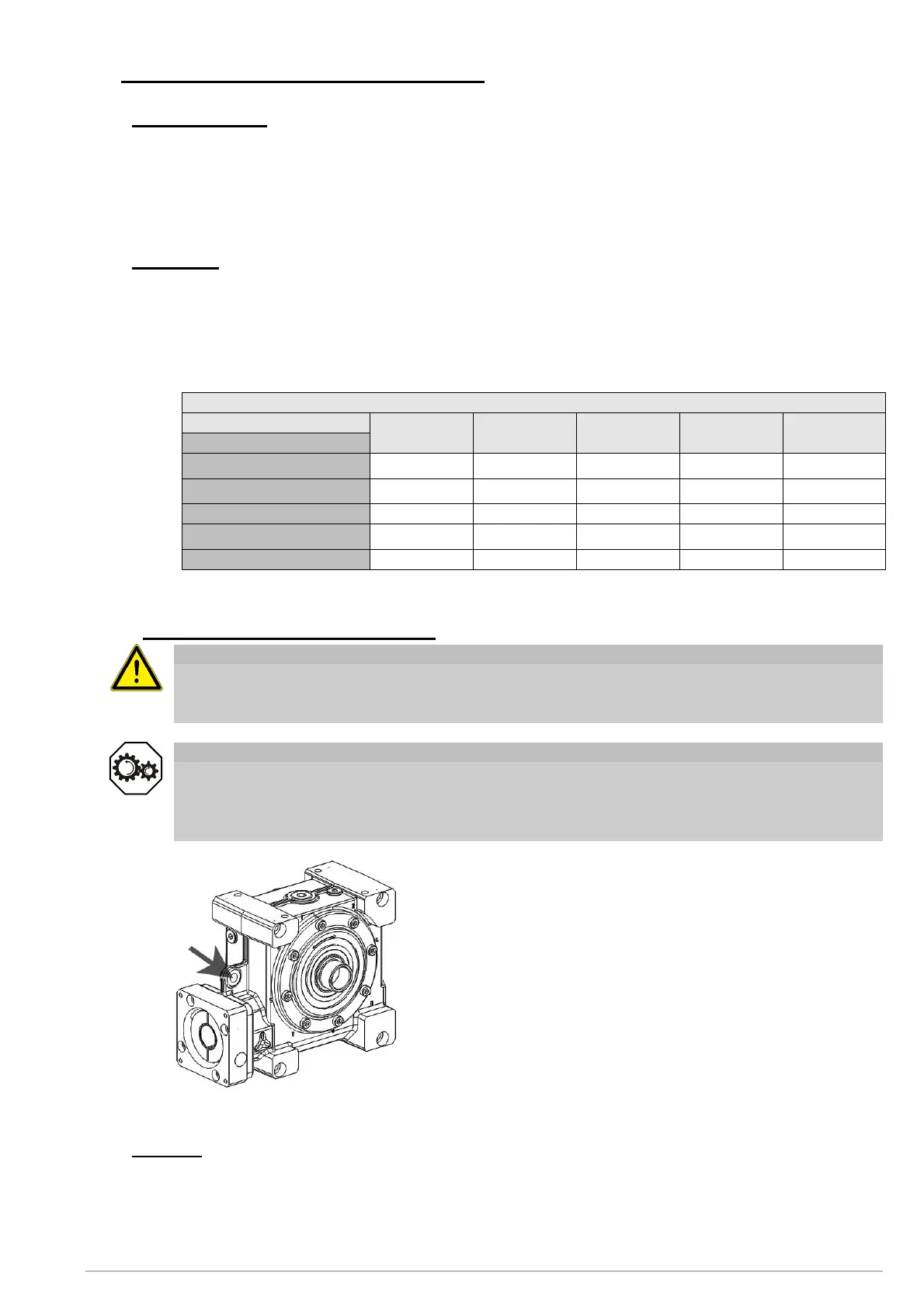

Fig. 5.1
For gearboxes as of model V-Drive+/V-Drive economy 050,
there is an eyelet for securing equipment.
5.3 Storage
The gear reducer can be stored dry and in a horizontal position in the original packing for a
maximum of 2 years at a temperature between 0 °C and +40 °C. As storage logistic, we
recommend the “first in - first out” principle.
