Induction Cooktop

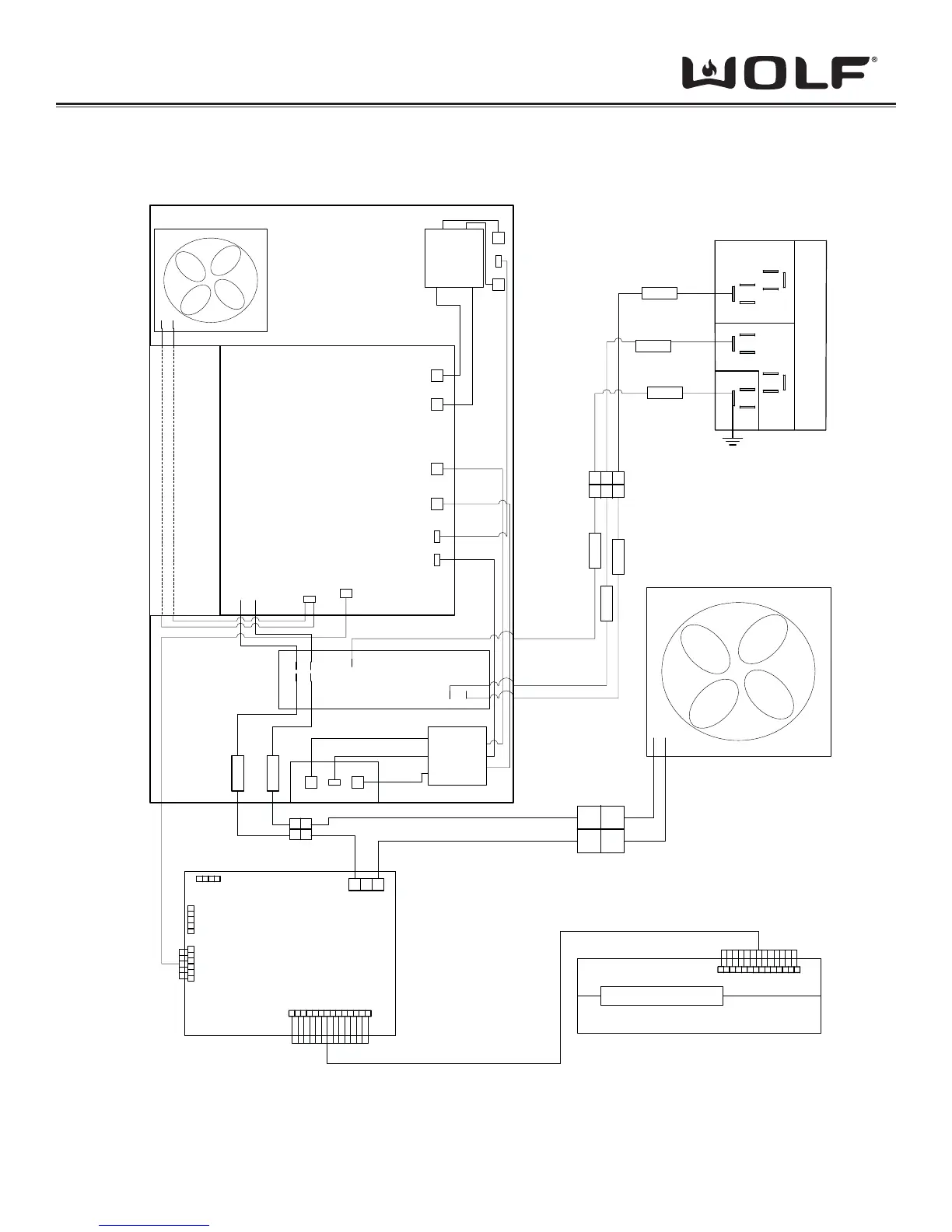

Wiring Diagrams
7-2
Induction Plate
Induction Plate
Generator Board
Filter Board
Control Board
TERMINAL BOX
Keyboard
Display Board
Plug into each other
J1
J3
J2
J6
J1
J4
L1
L2
L2
L1
L2
L1
GND
L1
L2
GND
15” Induction Cooktop Wiring Diagram
