Wood-mizer LX150 Safety, Operation, Maintenance & Parts Manual

Parts
Pivot Head
Parts 12/19/19 2-2
2

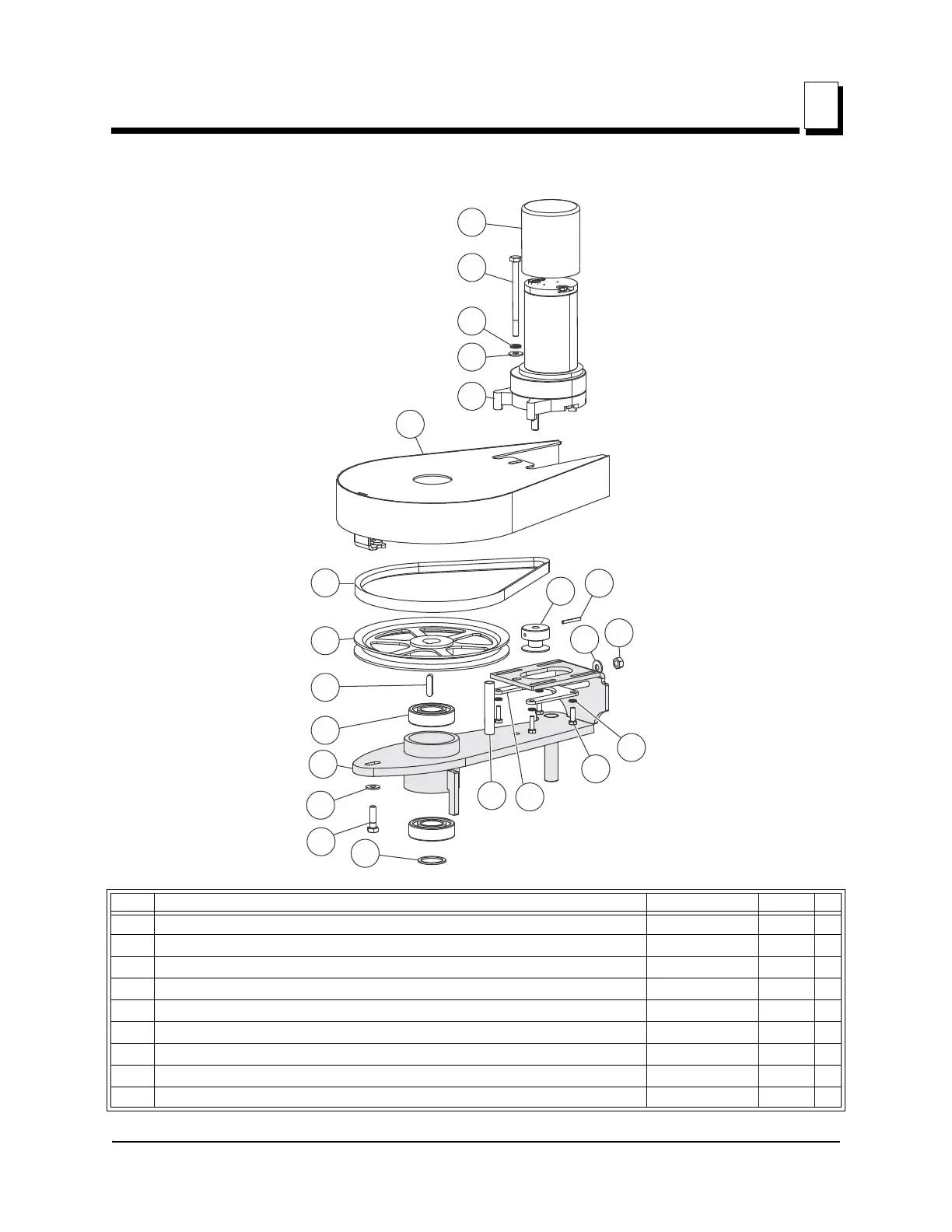

2.2 Pivot Head
REF DESCRIPTION ( INDICATES PARTS AVAILABLE IN ASSEMBLIES ONLY) PART # QTY.
1 CAP, RUBBER, 2.5 ID X 3 023720 1
2 SCREW, 1/4-20 X 3 1/2” HEX HEAD CAP GRADE 5 F05005-54 1
3 WASHER, 1/4” SPLIT LOCK F05011-14 1
4 WASHER, 1/4”SAE FLAT F05011-11 1
5 MOTOR, CURRENT APPLICATIONS 1/30HP 12VDC GEAR 079214 1
6 GUARD WELDMENT, LT35 DEBARKER 076161 1
7 BELT, 4L280 P04031 1
8 PULLEY, 7" X 20MM ID 076052 1
9 KEY, 6 X 6 X 25MM 076051 1
LX15048-4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
