Woods Batwing BW15.50E - Page 43

.60 Series Parts 43
MAN1246 (04/10/2018)

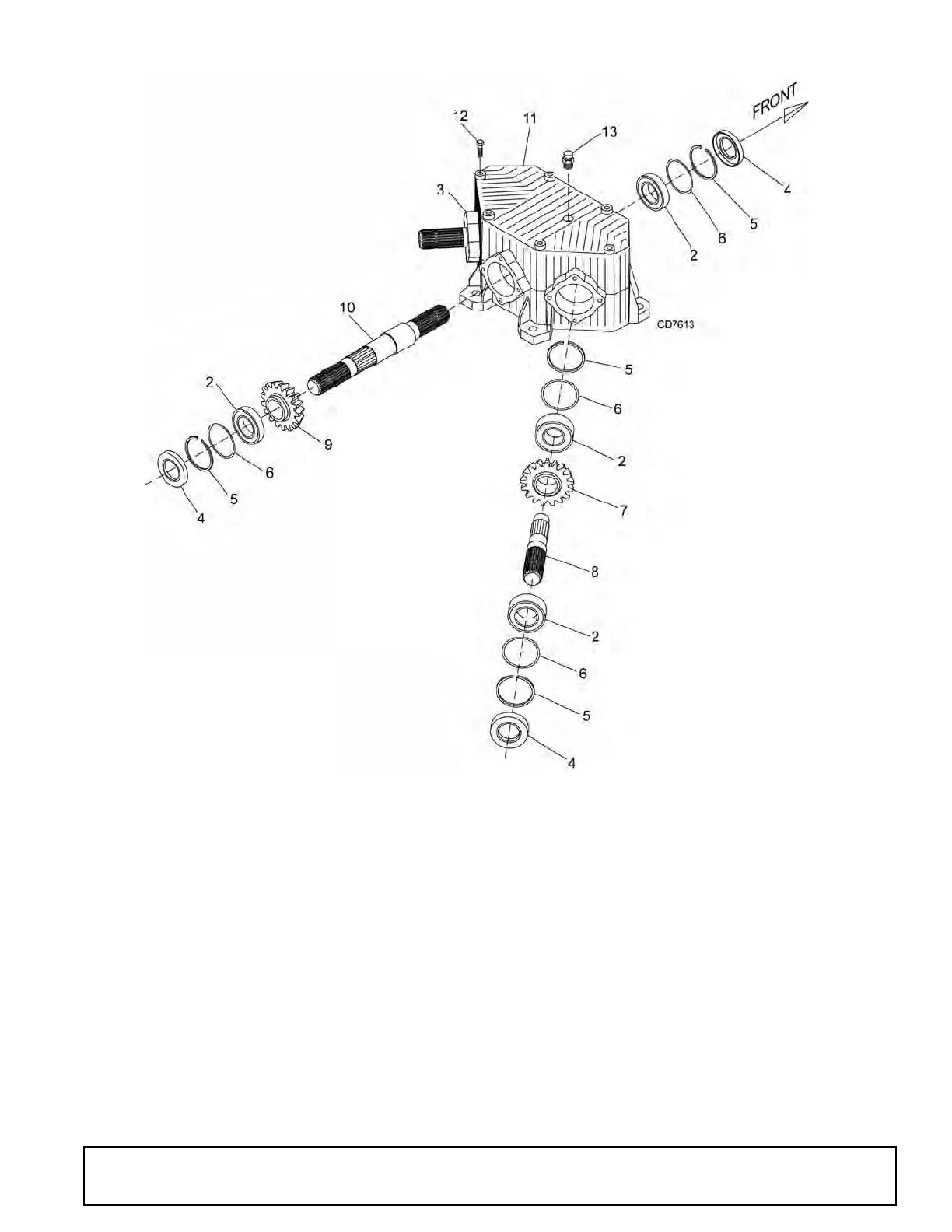

SPLITTER GEARBOX ASSEMBLY
REF
PART
540 RPM
PART
1000 RPM
QTY DESCRIPTION
1 1031185 1031186 - Complete splitter gearbox
2 39411 39411 6 Bearing
3 ------ ------ 1 Housing
4 1031175 1031175 4 Oil seal, 45mm x 85mm x 10mm
5 1002494 1002494 6 Snap ring 85 mm dia
6 57471 57471 6 Shim
7 1031176 1031178 2 Pinion gear
8 1031177 1031177 2 Shaft 1-3/4 - 20 spline, wing
9 1031178 1031176 1 Gear
10 1031179 1031179 1 Shaft 1-3/4 - 20 spline, centre
11 1031180 1031180 1 Cover
12 ------ ------ * M10 x 30mm HHCS CL8.8
13 57076 57076 1 1/2" Breather
* Standard hardware, obtain locally
