Woods Batwing BW15.50E - Series Models

.60 Series Parts 39
MAN1246 (04/10/2018)

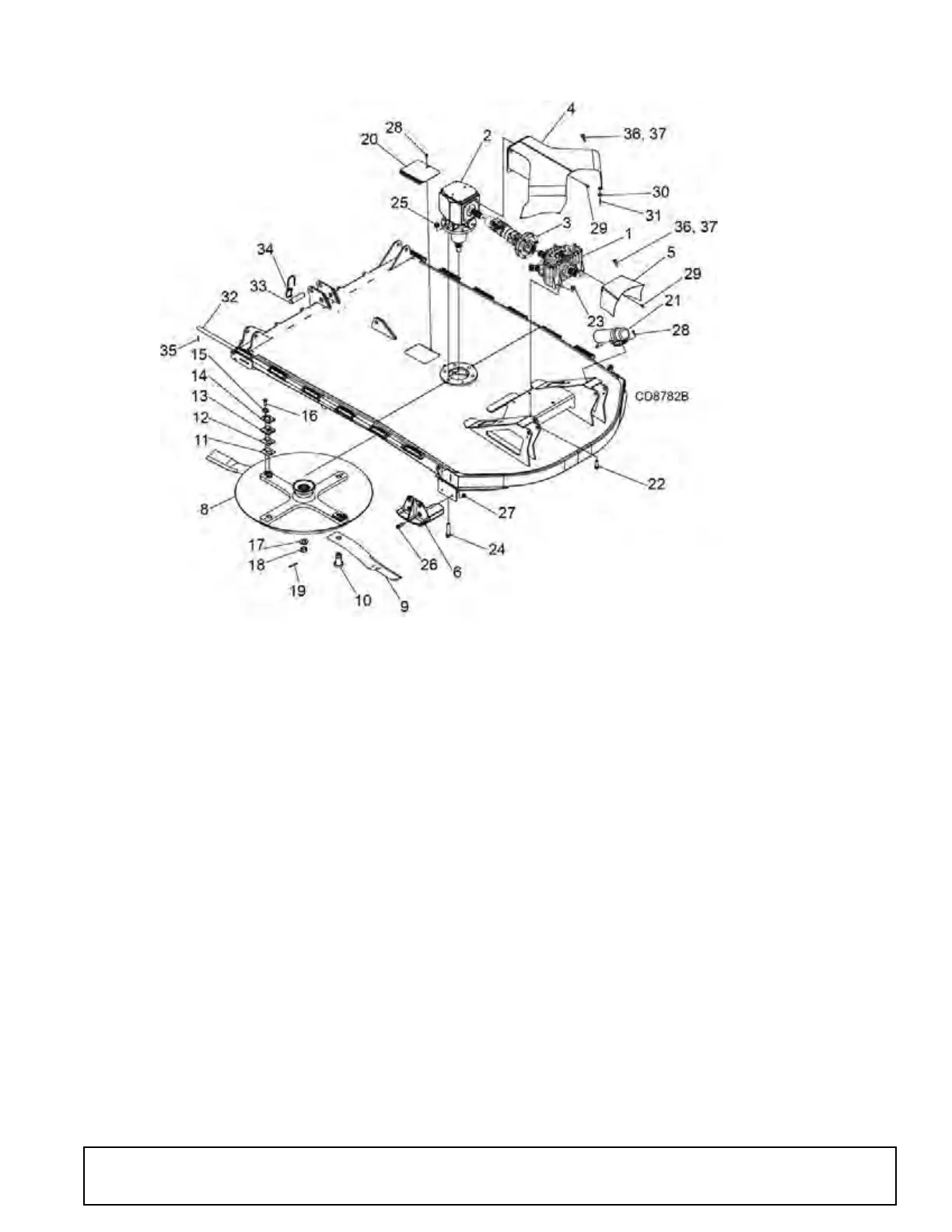

CENTRE FRAME ASSEMBLY
REF PART QTY DESCRIPTION
1 1031185 1 Splitter gearbox - 540 RPM
(see page 43) -OR-
1 1031186 1 Splitter gearbox - 1000 RPM
(see page 43)
2 1045806 1 Gearbox - 540 RPM
(see page 46) -OR-
2 1045804 1 Gearbox - 1000 RPM
(see page 46)
3 1045076 1 Driveline complete, 2400, 1.75-20
6.88 w/clutch
4 1046080RP 1 Splitter gearbox shield
5 1046056RP 1 Input drive shield
6 1044390 1 Front skid, right
7 1044391 1 Front skid, left (not shown)
8 1044815RP 1 Crossbar assembly
9 19160KT 1 Blade kit, CCW
10 1045034RP 2 1-1/2 Blade pin
11 10520RP 2 Shim, 18 GA, 1-1/2 blade pin
12 13946RP 2 Shim, 20 GA, 1-1/2 blade pin
13 1028824RP 2 Spacer, 5/16 thick
14 32603 2 Keyhole plate - special
15 32604RP 2 Blade pin lock clip - special
16 3379RP * 2 1/2 NC x 1-1/2 HHCS, GR5
17 1045695 1 Washer, 1.22 x 2.205 x .236
18 1045894 1 M30 x 2.0P Castle Nut
19 6185 * 1 1/4 x 2-1/4 Cotter pin
20 57050 1 Access hole cover
21 1003828 1 Manual tube
REF PART QTY DESCRIPTION
22 19024 4 5/8 NC x 1-3/4 HFS, GR5
23 19025 * 4 5/8 NC Flanged lock nut
24 1043460 6 3/4 NC x 3-1/2 HFS, GR5
25 1045611 6 3/4 NC Flanged lock nut
26 1028902 8 1/2 NC x 1-3/4 HFS, GR5
27 11900RP * 8 1/2 NC Flanged lock nut
28 N/S * 3 5/16 NC x 1 Hex whiz bolt, GR5
29 1041071 4 M8 - 1.25P x 16 mm HFS, CL8.8
30 1041077 2 .216 x .977 x 3.14 Magnet
31 1041073 2 .188 x .565 Aluminum rivet
32 1043438 2 Hinge Pin
33 1044831 1 Pin Transport Lock
34 52204 1 Lynch pin with chain
35 66016 4 1/4 x 1-1/2 spring pin
36 603778 3 8 mm screw
37 603779 3 8 mm retainer
1045874 Complete decal set
1045875 English safety decal set
605877 French safety decal set
605878 Spanish safety decal set
605879 Italian safety decal set
605880 German safety decal set
N/S
Not Serviced
* Standard Hardware, Obtain Locally
HHCS Hex Head Cap Screw
HFS Hex Flange Screw
