Woods Batwing BW15.50E - Page 45

.60 Series Parts 45
MAN1246 (04/10/2018)

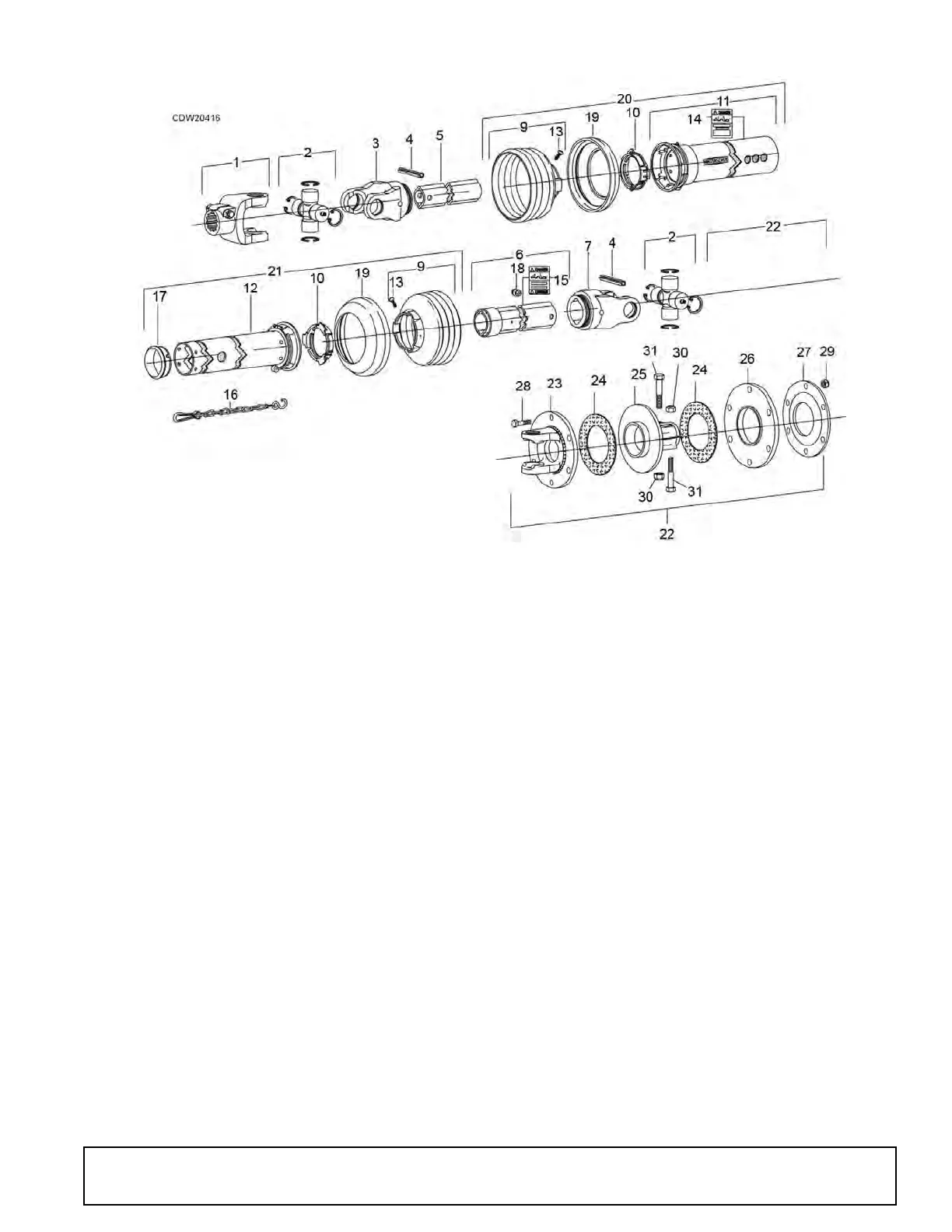

WING DRIVE ASSEMBLY
REF PART QTY DESCRIPTION
A 1045077 1 Complete wing drive assembly
1 1019111 1 Yoke 1 3/4"-20 SPL. I.C.
2 1045581 2 Cross & Bearing Kit
3 90317916 1 Inboard Yoke 1B
4 40764 2 Spring pin 10 x 80
5 40587 1 Inner Profile 1B
6 1045582 1 Profile & Sleeve WA-2AL
7 38353 1 Inboard Yoke 2A
9 2 Guard Cone 4 Rib
10 40766 2 Bearing Ring SC25
11 1 Guard Tube Outer
12 1 Guard Tube Inner
13 40778 2 Screw-In Item 9
14 18864 1 Decal Outer - In Item 11
15 33347 1 Decal Inner - In Item 6
16 40777 1 Restraint Chain
17 40767 1 Support Bearing
18 40779 1 Zerk - In Item 6
19 N/S 2 Reinforcing Collar
20 1045579 1 Outer Guard Half - Incl.
- - - Items 9-11, 13, 14, 19
21 1045580 1 Inner Guard Half - Incl
- - - Items 9, 10, 12, 13, 16, 17, 19
REF PART QTY DESCRIPTION
22 1019114 1 Friction Clutch 1-3/4, 20 spline
23 1027217 1 Flange yoke
24 57432 1 Friction disc (package of 2)
25 57440 1 Hub, 1-3/4, 20 spline
26 57434 1 Thrust plate
27 57439 6 Belleville spring plate
28 57259 6 M10 x 1.5P x 55mm HHCS
29 57260 6 M10 x 1.5P Hex lock nut
30 57261 2 M12 x 1.75P Hex lock nut
31 57262 2 M12 x 1.75P x 65mm HHCS 8.8
N/S Not Serviced
