.60 Series Parts 47
MAN1246 (04/10/2018)

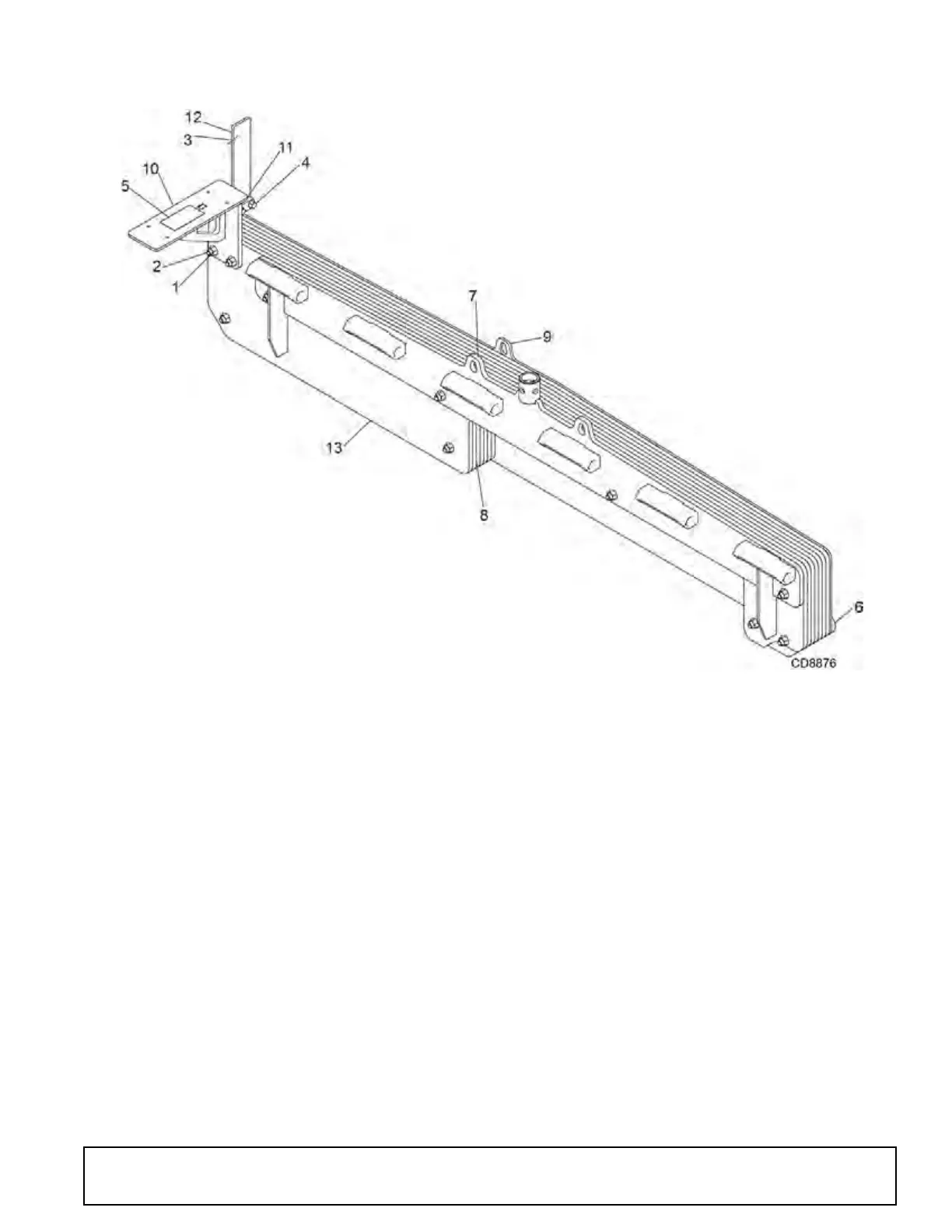

BW10.60E / BW10.60QE WEIGHT BOX ASSEMBLY
REF PART QTY DESCRIPTION
1 13563 10 HHCS 1/2 NC x 6 GR5
2 57123 1 Dcl 2 x 9 rear reflector
3 1033958 2 Screw .375 NC x 1 - .25 HEX FLNG SER
4 1041910 1 Decal, notice, light kit
5 1045084RP 1 Plate, WT box skid
6 1045088RP 1 WA, WT box hinge
7 1045090RP 4 Plate, WT box inner
8 1045091RP 1 Plate, WT box outer
9 1045095RP 1 WA, WT box mount
10 1045624 10 Nut, HFN 1/2 NC, Dri-loc patch
11 1045628 2 Nut, HFN 3/8 NC, Dri-loc patch
12 1045879RP 4 Plate, WT box inner 70
13 1045883RP 1 Lug, WT box reflector
14 1046095RP 1 Plate, WT box inner notch
HHCS Hex head cap screw
