Woods Batwing BW15.50E - Page 49

.70 Series Parts 49
MAN1246 (04/10/2018)

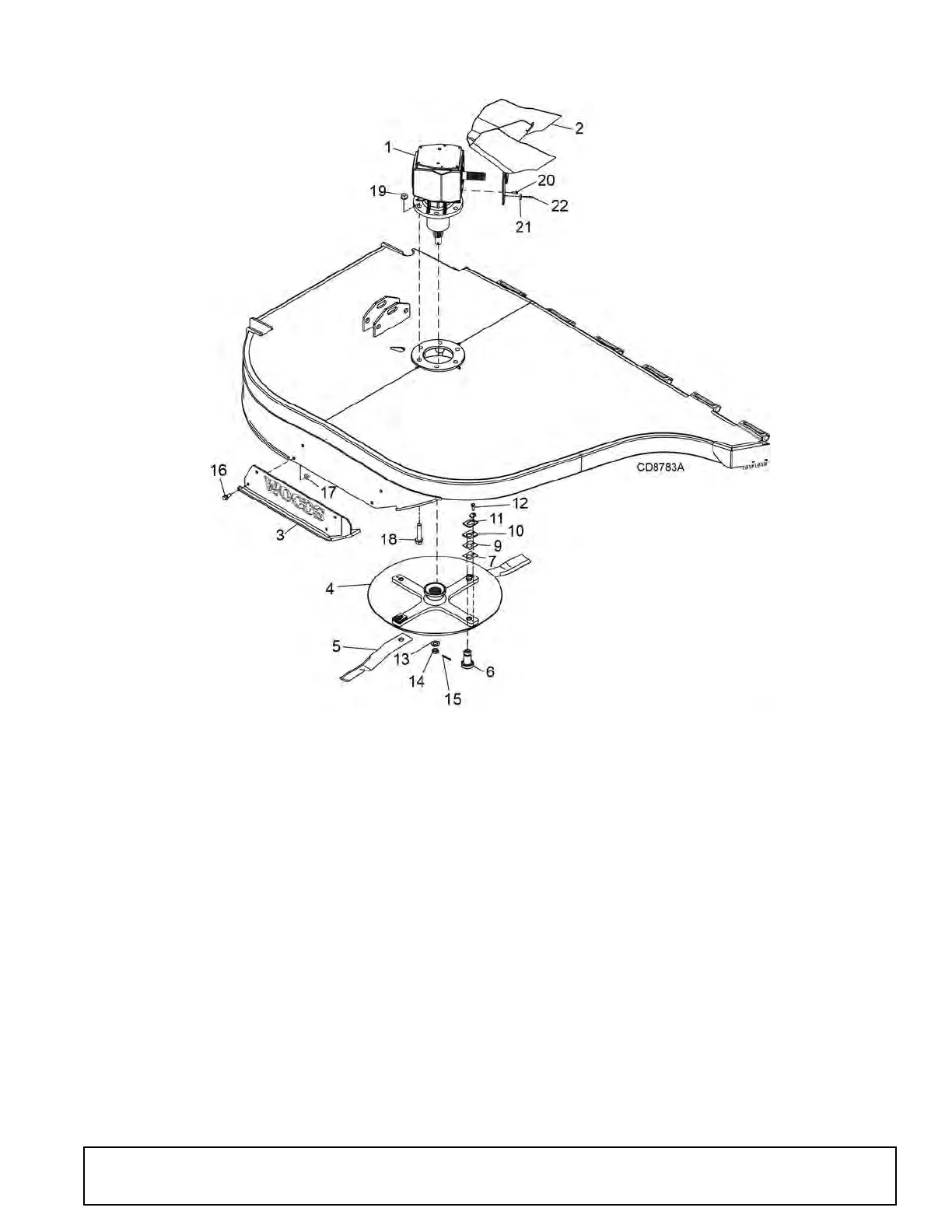

WING ASSEMBLY
REF PART QTY DESCRIPTION
1 1045807 1
Gearbox, right wing (see page 55) -OR-
1 1045805 1 Gearbox, left wing (see page 55)
2 1046059RP 1 Clutch shield, hinged
3 1044990RP 1 Skid, right wing -OR-
3 1044991RP 1 Skid, left wing
4 1044820RP 1 Crossbar assembly
5 19160KT 1 Blade kit, CCW (right wing) -OR-
5 19161KT 1 Blade kit, CW (left wing)
6 1045034RP 2 1-1/2 blade pin
7 10520RP 2 Shim, 18 GA, 1-1/2 blade pin
8 13946RP 2 Shim, 20 GA, 1-1/2 blade pin
9 1028824RP 2 Spacer, 5/16 thick
10 32603 2 Keyhole plate - special
11 32604RP 2 Blade pin lock up - special
REF PART QTY DESCRIPTION
12 3379 * 2 1/2 NC x 1-1/2 HHCS, GR5
13 1045695 1 Washer, 1.22 x 2.205 x .236
14 1045894 1 M30 x 2.0P castle nut
15 6185 * 1 1/4 x 2-1/4 cotter pin
16 1031225 4 1/2 NC x 1-1/4 HFS, GR5
17 11900 * 4 1/2 NC flanged lock nut
18 1043460 6 3/4 NC x 3-1/2 HFS, GR5
19 1045611 6 3/4 NC flanged lock nut
20 1041071 4 M8 - 1.25P x 16 MM HFS, CL8.8
21 603778 2 8 mm screw
22 603779 2 8 mm retainer
* Standard hardware, obtain locally
HHCS Hex head cap screw
HFS Hex flange screw
