Correct cable is available from Woodward, Belden, or other suppliers providing
an equivalent cable.
Woodward part number 2008-349
Belden
PO Box 1980
Richmond IN 47375
telephone (317) 983-5200
Belden Part
Number
Description
9207 PVC 20 AWG shielded. NEC Type CL2, CSA Cert. PCC FT 1.
89207 Teflon 20 AWG shielded, Plenum version. NEC Type CMP, CSA Cert. FT 4.
YR28867 PVC 22 AWG shielded.
YQ28863 Plenum 22 AWG shielded.
Cable Length and Number of LinkNet I/O Modules
Specification 0 to 55 °C –20 to +55 °C –40 to +55 °C
Maximum network cable length 150 m 150 m 50 m
Maximum number of I/O modules 60 32 20
Maximum stub length 300 mm 300 mm 300 mm

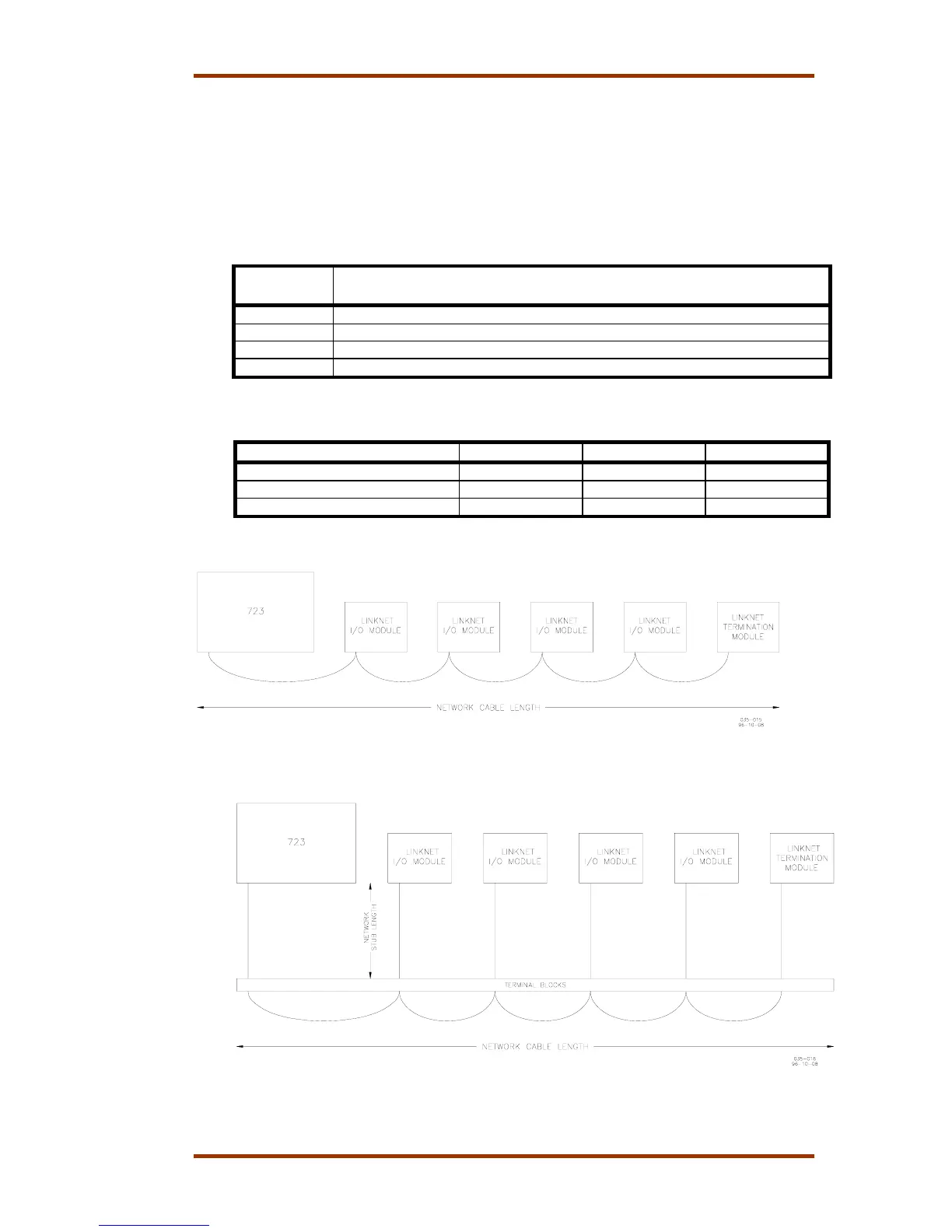

Figure B-16. Direct Wired Network
Figure B-17. Network Wired Via Stubs
