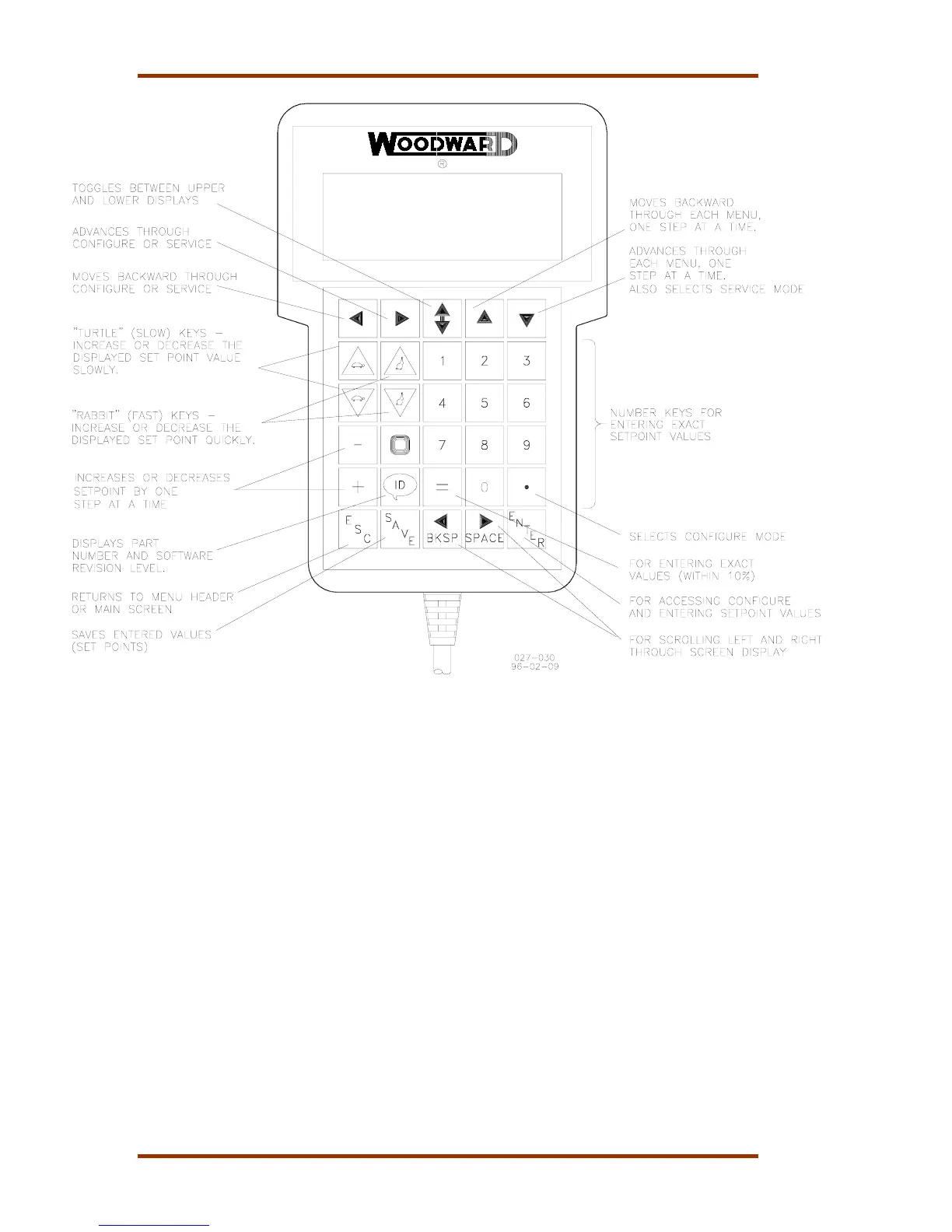

Figure 4-1. Hand Held Programmer Functions
Configuration Menu Descriptions
CFIG Option
1. USE REV ACTUATOR should be set to TRUE for reverse acting actuators
and FALSE for forward acting actuators (default is FALSE). Forward-acting
actuators require increased current to increase fuel. Reverse-acting
actuators require decreased current to increase fuel (reverse-acting
actuators should always incorporate a mechanical ballhead backup
governor, such as the Woodward EGB).
2. USE 2nd DYNAMICS should be set TRUE to bring into view the 2nd
SPEED DYNAMICS menu and permit the use of the 2nd Dynamics function.
Set to FALSE to disable the 2nd Dynamics function and conceal the 2nd
SPEED DYNAMICS menu.
To Next Page
