Product Information
9
Greenstar 4000 – 6 720 891 161 (2020/09)
3.4 Product identification
Data plate
The data plate includes the product performance information, approval
data and serial number. The data plate location can be found in the
product overview.
Additional type plate
The product name and the most important product data are shown on
the additional data plate. The additional type plate can be found on the
outside of the product in an easily accessible location.
The additional type plate can be found on the underside of the appliance.
3.5 Pipework positions and flue outlet

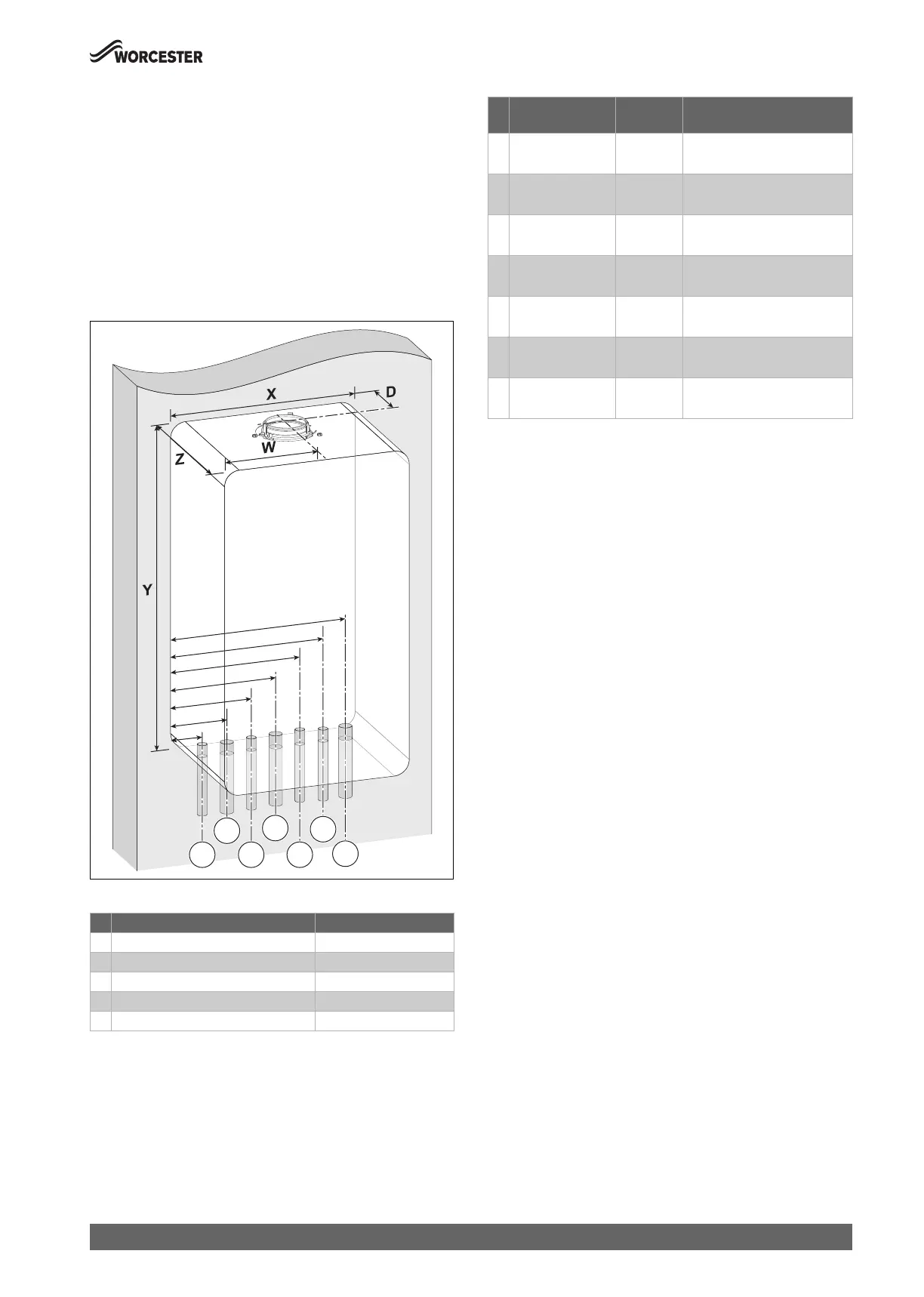

Fig. 2 Pipe and flue outlet dimensions
Table 3 Appliance and flue outlet dimensions
Table 4 Pipe dimensions
Description Dimensions (mm)
X Appliance width 400
Y Appliance height 724
1)
1) 724mm to middle of top panel.
710mm side panel height.
Bottom panel is removable and not part of minimum clearance height
requirements.
Z Appliance depth 310
W Flue centre from appliance left side 200
D Flue centre from rear of appliance 135
0010023464-001
1
2
3
4
5
6
7
# Function From left
case edge
Diameter of pipe
1 Condensate Outlet 38mm 22mm
• Rubber push fit connection
2 CH Flow 70mm 22mm
•Compression fitting
3 DHW Outlet 135mm 15mm
•Compression fitting
4 Gas 200mm 22mm
•Compression fitting
5 DCW Inlet 265mm 15mm
•Compression fitting
6 PRV Discharge 296mm 15mm
• Fittings not supplied
7 CH Return 330mm 22mm
•Compression fitting
