Worcester Greenstar 40CDi Classic Regular - Page 34

34

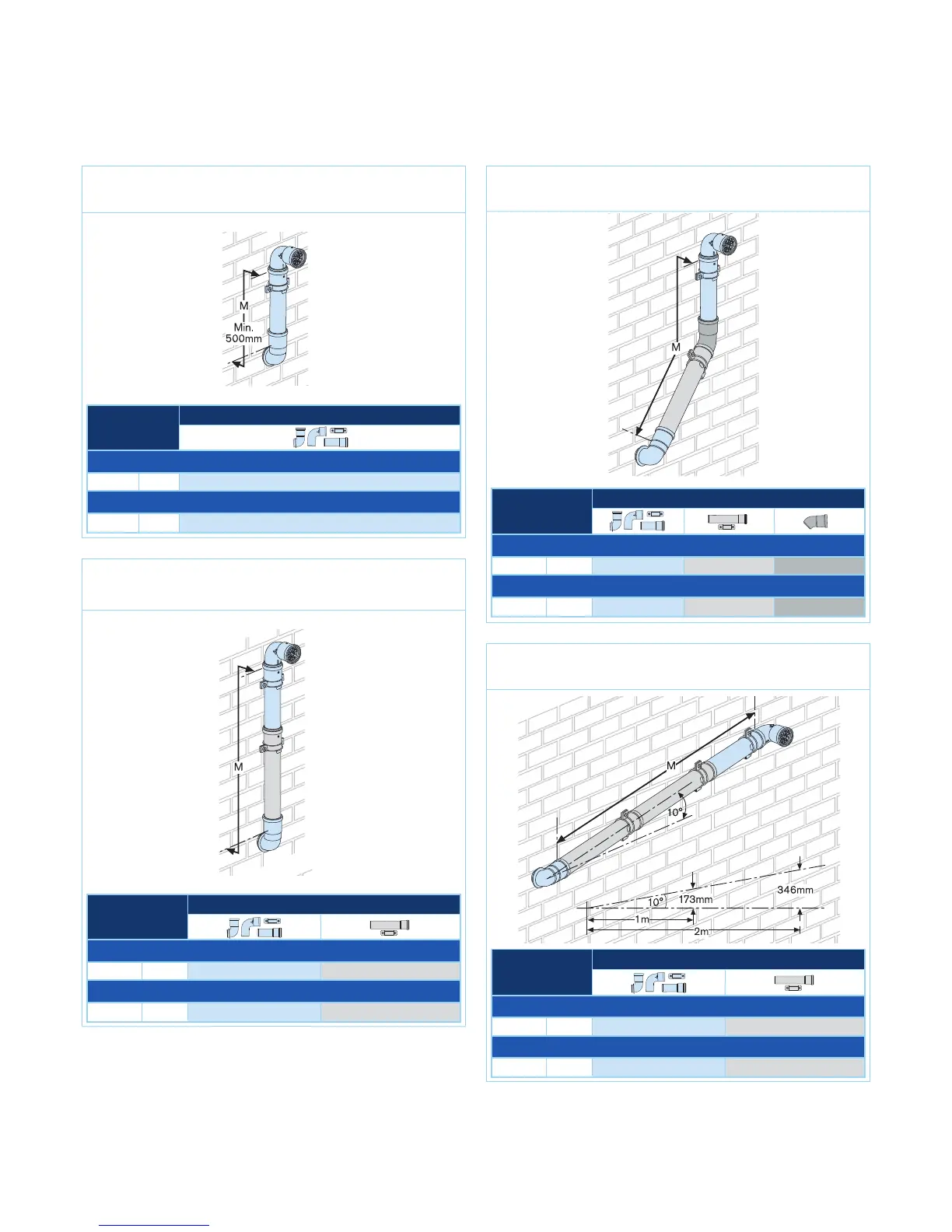

Option 1
Plume management system
Minimum
Components required
length (mm)
Greenstar Ri series
60mm 500 1
Greenstar CDi Classic Regular series
60mm 500* 1
Option 2
Plume management system with extensions
Maximum
Components required
length (mm)
Greenstar Ri series
60mm 4,500 1 up to 4
Greenstar CDi Classic Regular series
60mm 4,500* 1 up to 4
Option 4
Plume management system with angled termination
Maximum
Components required
length (mm)
Greenstar Ri series
60mm 4,500 1 up to 4
Greenstar CDi Classic Regular series
60mm 4,500* 1 up to 4
Option 3
Plume management system with extensions and 45º bend
Maximum
Components required
length (mm)
Greenstar Ri series
60mm 3,750 1 up to 4 1
Greenstar CDi Classic Regular series
60mm 3,750* 1 up to 4 1
*NOTE: You must refer to the table and graph on page
33 to calculate your horizontal flue lengths and plume
management length.
