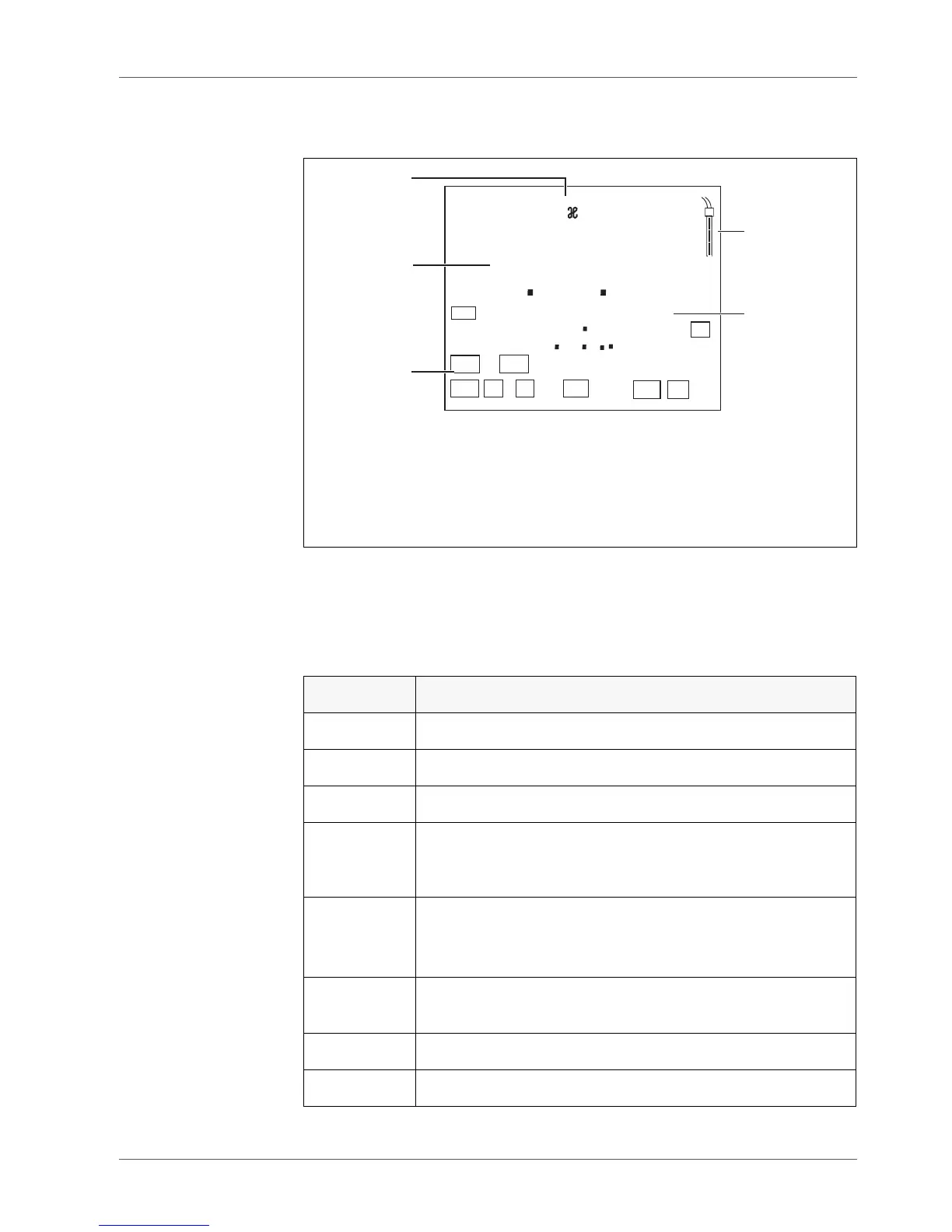

4.1.2 Display
4.1.3 Status information
1 Status information
2 Measured value (with unit)
3 Measured parameter
4 Sensor symbol (calibration evaluation, cleaning interval)
5 Measured temperature (with unit)
Time
1/cm
8
88
8
8
8
8
8
°F
C
°
TDS
Sal
S/cm
MW
LoBat
Tref25
Tref20
ARng
CalnLF
AR
TP
µ
3
2
4
5
1
*cm
Lin
Display Meaning
[AR] Stability control (AutoRead) is active
[TP] Temperature measurement active
[Time] Setting of calibration interval
[ARng] Automatic range switchover
The meter always measures with the highest possible reso-
lution.
[nLF], [Lin] The temperature compensation is active
• [nLF]: Nonlinear temperature compensation
• [Lin]: Linear temperature compensation
[Tref20],
[Tref25]
Reference temperature 20 °C or 25 °C
[Cal] Calibration
[LoBat] Batteries are almost empty
