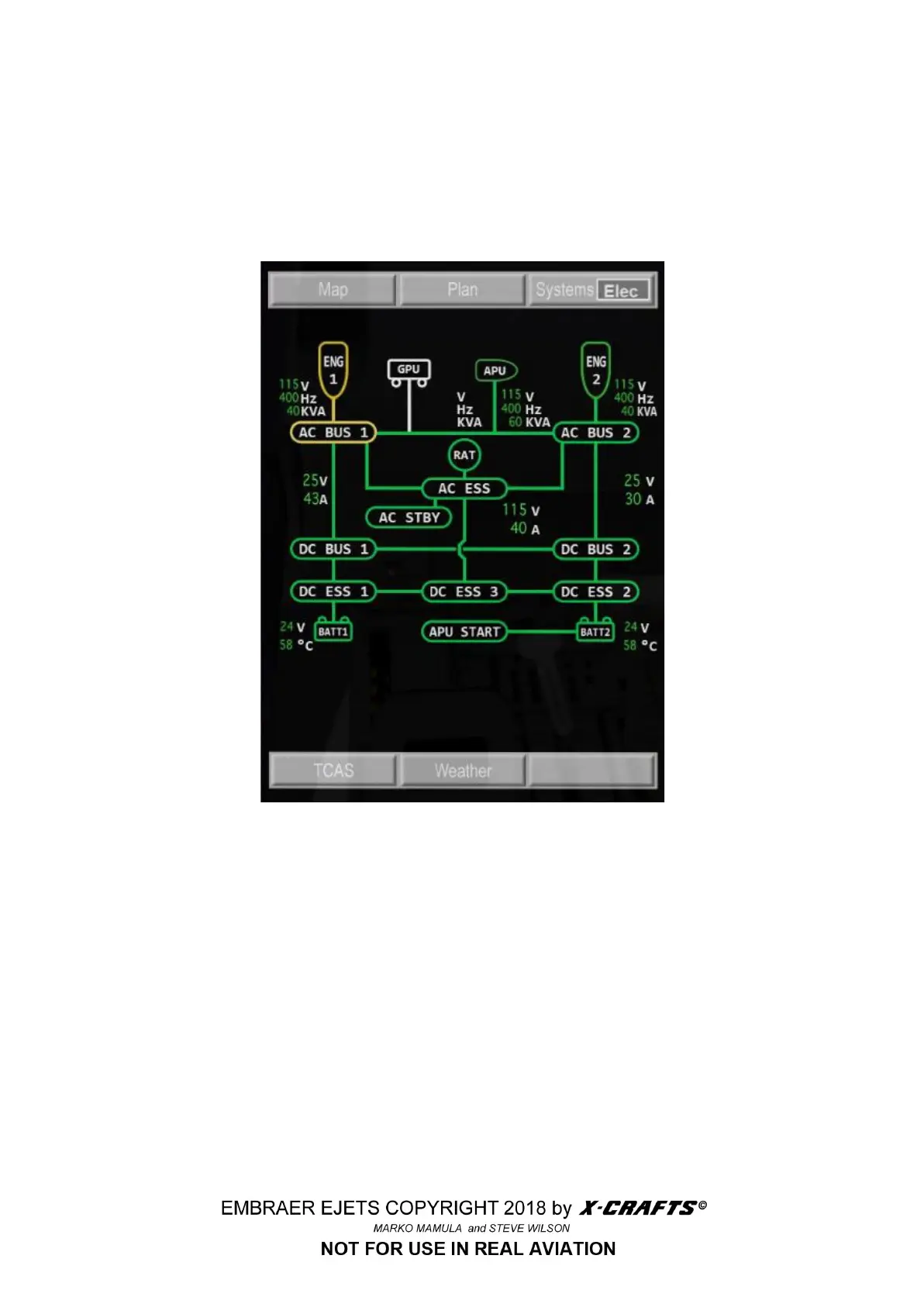

3.6.2.6 ELECTRICAL SYNOPTIC PAGE
The electrical synoptic display provides a visual representation of the electrical system operation.
● White lines and black crosses mean the system is disconnected or not active on busses and
TRUs.
● Green lines and green crosses mean the system is connected or active on busses and TRUs.
NOTE: Amber lines mean the system is NOT in a normal operation condition. It does not mean that
the system is not working correctly.
35
