FUSE REPLACEMENT
NOTE: Your 115VAC instrument may have a “twist-off” type fuse
carrier not shown below. If this is the case, replace fuse
with a 500ma, ¼” x 1-¼” type.
A spare fuse is located in the fuse carrier if required.
To replace fuse:
1. Turn power off (O) and remove detachable line cord.
2. Insert small flat-blade screwdriver into left edge of fuse carrier and pry
out.
3. Remove blown fuse from carrier clip and discard.
4. Remove spare fuse from carrier compartment and place in fuse clip.
5. Reinsert fuse carrier into fuse cavity. Make sure carrier is firmly
seated.
6. Reinstall detachable line cord.

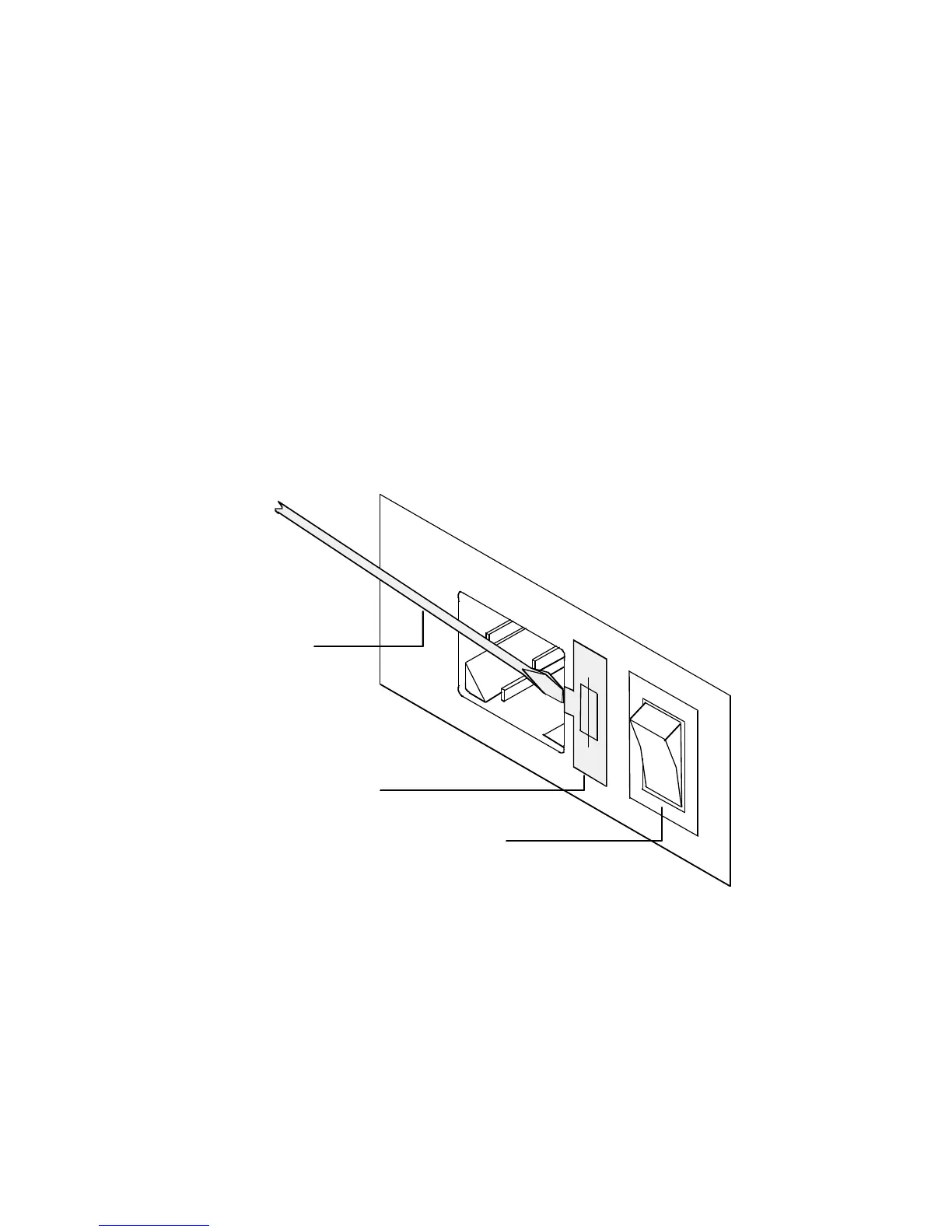

Flat-blade Screwdriver
Power Switch
Fuse Carrier
