XENO XDR4 range User Manual

User’s Manual | 14

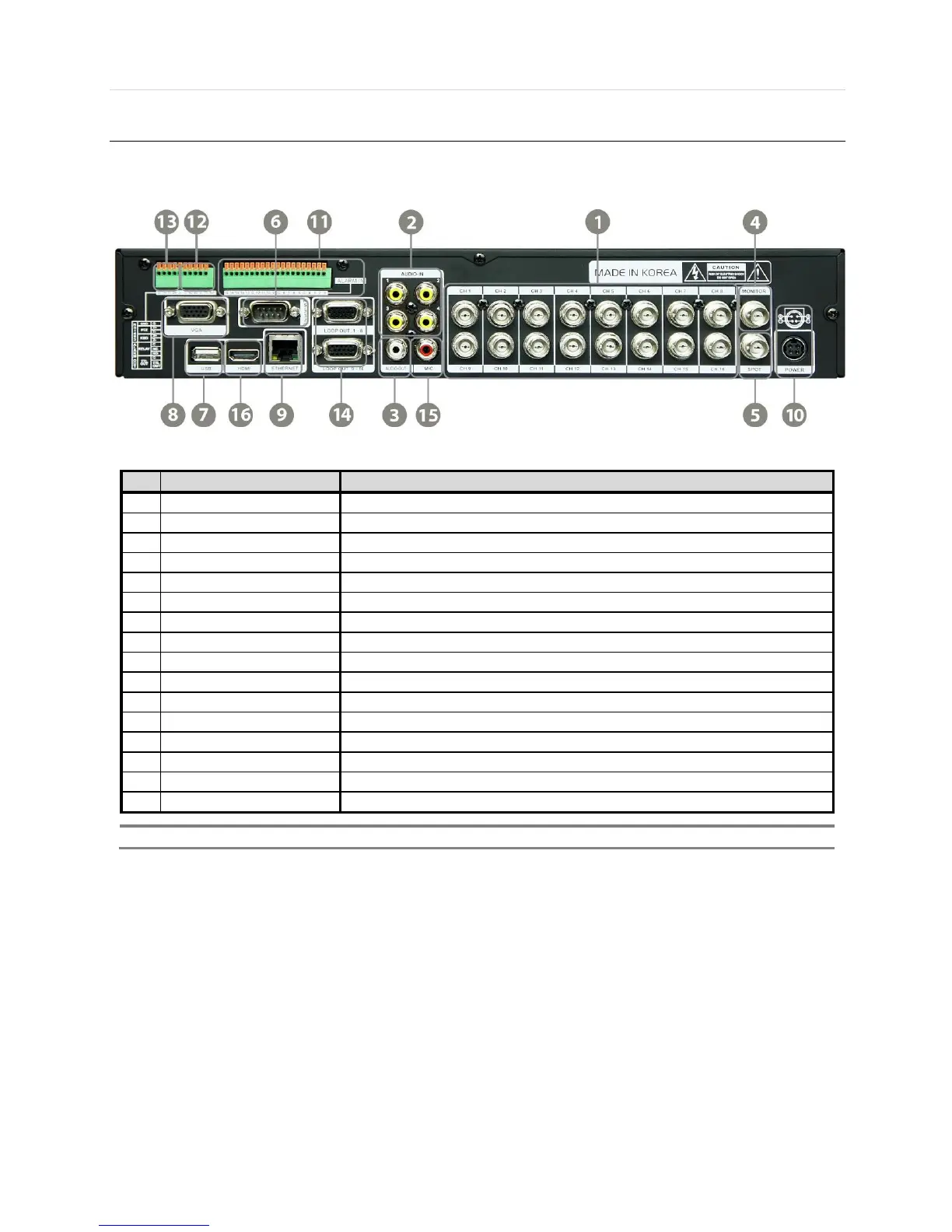

2.2 Rear Panel
[4/8/16CH with DVD±RW (W)360x(H)66x(D)380mm]
4 BNC ports available on 4CH model and 8 BNC ports available on 8CH model
No.
Name
Description
1
Video-In
Camera (Supports NTSC/PAL)
2
Audio-In
Audio input device (with amplifier)
3
Audio-Out
Audio output device (with amplifier)
4
Video-Out
Composite Monitor
5
Spot-Out
Composite Spot Monitor
6
RS-232 Port
RS-232 input device
7
USB Port
USB port (Ver 2.0) for mouse operation and backup Device or firmware update
8
VGA Port
VGA Monitor
9
LAN Port
10/100 Ethernet connection terminal
10
Power Input
Power supply connection (Default : 12 V, 3.33A/6.67A)
11
Sensor Input
Sensor input
12
Alarm Output
Alarm output
13
RS-485 Port
PTZ camera or external keyboard
14
Loop Out
Loop Out Port
15
MIC-In
MIC input device
16
HDMI Port
HDMI Port Out
NOTE
Carefully check whether the specification of the peripheral devices matches the DVR‟s specification.
