51 | Chapter 1 : DVR User Manual
1. Check if the protocol of the connected PTZ camera is correct.
2. Check if the communication settings, including the baud rate, of the connected PTZ camera are in accordance with
the assigned value for that P/T/Z protocol.
3. Check if the address of the connected PTZ camera is correct.
4. Check if the wiring to the P/T/Z controllers are correct.
Preset
The system supports the number of preset from 1 to 255.
Baudrate
User can select the baud rate level from 1,200bps up to 115,200bps.
4.3 Record
Users can configure various record settings such as Continuous, Event, and Panic for each individual camera channel in the
Record Setup Menu. Network Stream settings are independently configured from the Record settings in this menu as well.
Therefore, the user can optimize the bandwidth used by configuring the resolution, IPS, and image quality separately.

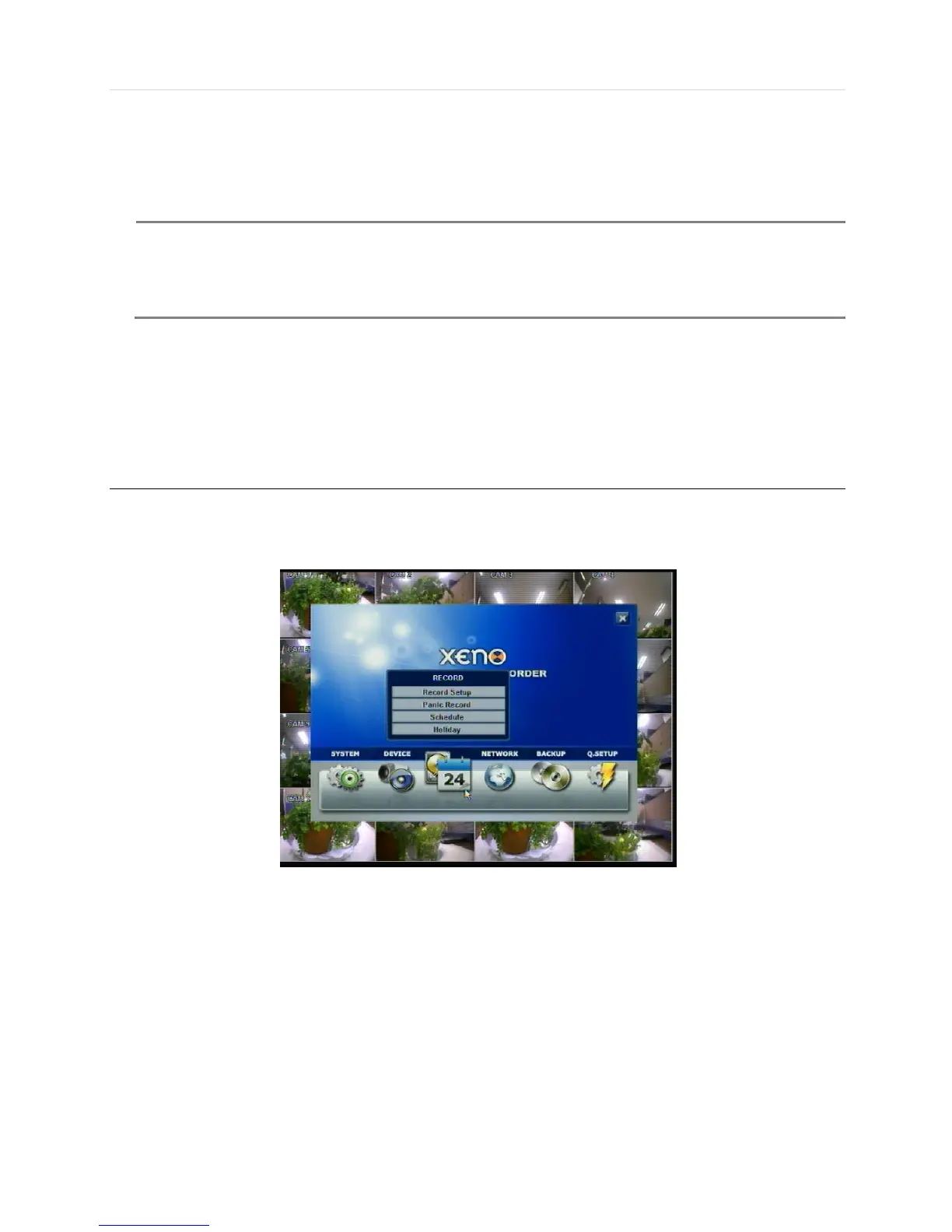

4.3.1 Record Setup
The Record Setup menu consists of two main schedule settings such as Schedule1 and Schedule2. A schedule simply
refers to the Record Setup page. Users have the option of setting one (1) schedule, or a combination of both Schedule 1 and
Schedule 2. This feature enables the user to create a more detailed record setting for each camera channel.
How to setup PTZ camera with Pelco-D protocol (example)
1) Make sure the serial communication with the PTZ camera is through RS-485 port.
2) Select “Pelco-D” at the protocol list, and set the address.
3) Select Baud Rate to be the same as the PTZ camera
4) Click the “Save” button to confirm this configuration.
To Next Page
