General Procedures / Information
6-48 12/04 FaxCentre F110
GP 14 Power Supply

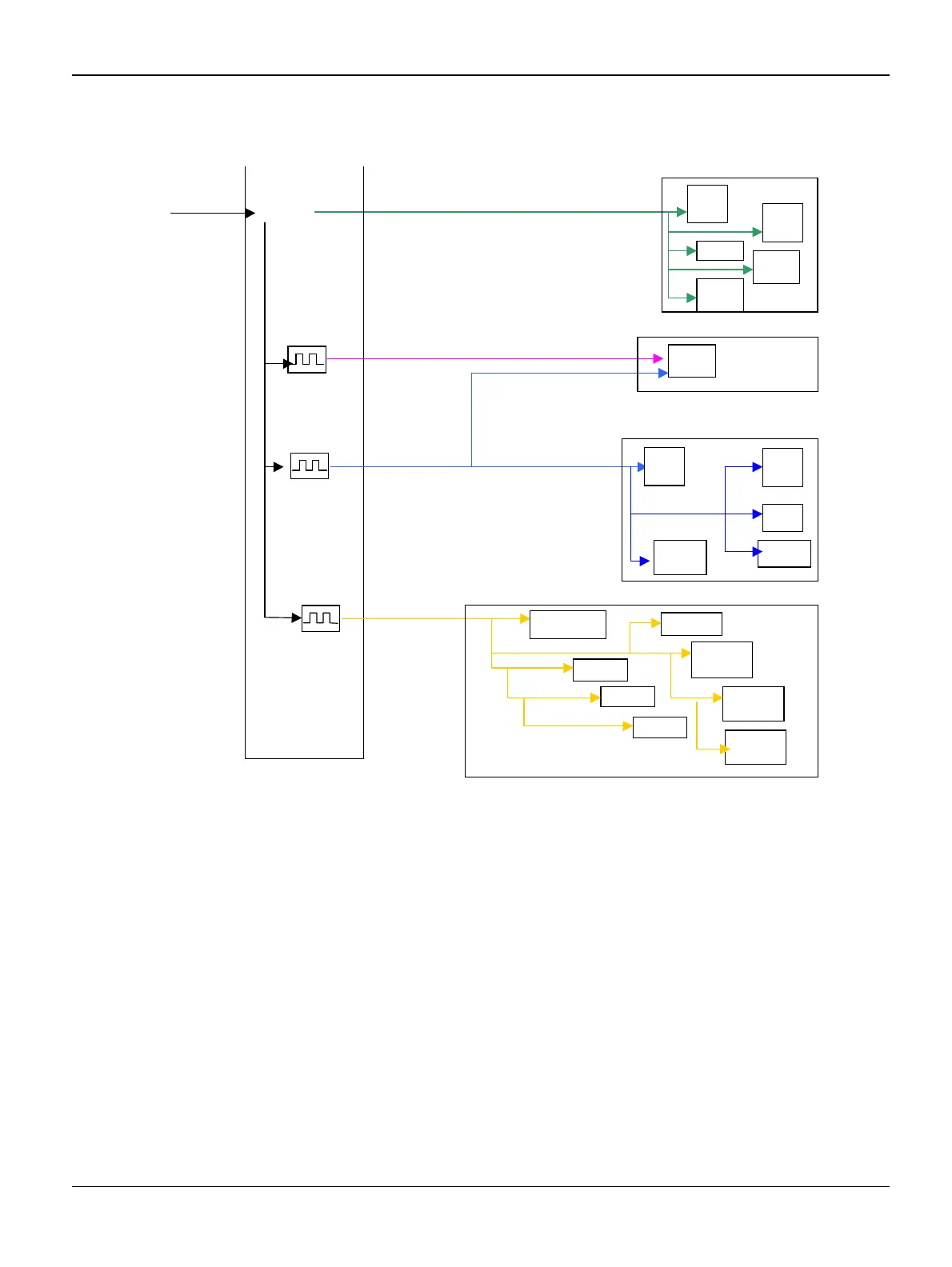

Figure 1 Power supply connections
Power save mode
To reach the lowest possible power consumption some parts are switched off or set to low-power
mode.
During power save mode, the following parts are switched off:
• Paper motor driver
• LSU and polygon motor
•OPU
• Loudspeaker amplification
• Paper sensors
•ADC Z350
Power Board
24V DC
24 V
5V
3.3V
230 AC
Polygon
motor
CIS
LED
ADF
motor
Video
ADC
LCD
Flash
SDRAM
Digicolor2
Speaker
Datapump
DP2Vxx
Codec
CSP1034C
Buffer
LIU
sensors
Chip Card
--5 V
LSU
Paper
motor
Solenoi
LIU
Codec
STL7550
