Spare Parts List
FaxCentre F110 12/04 5-5

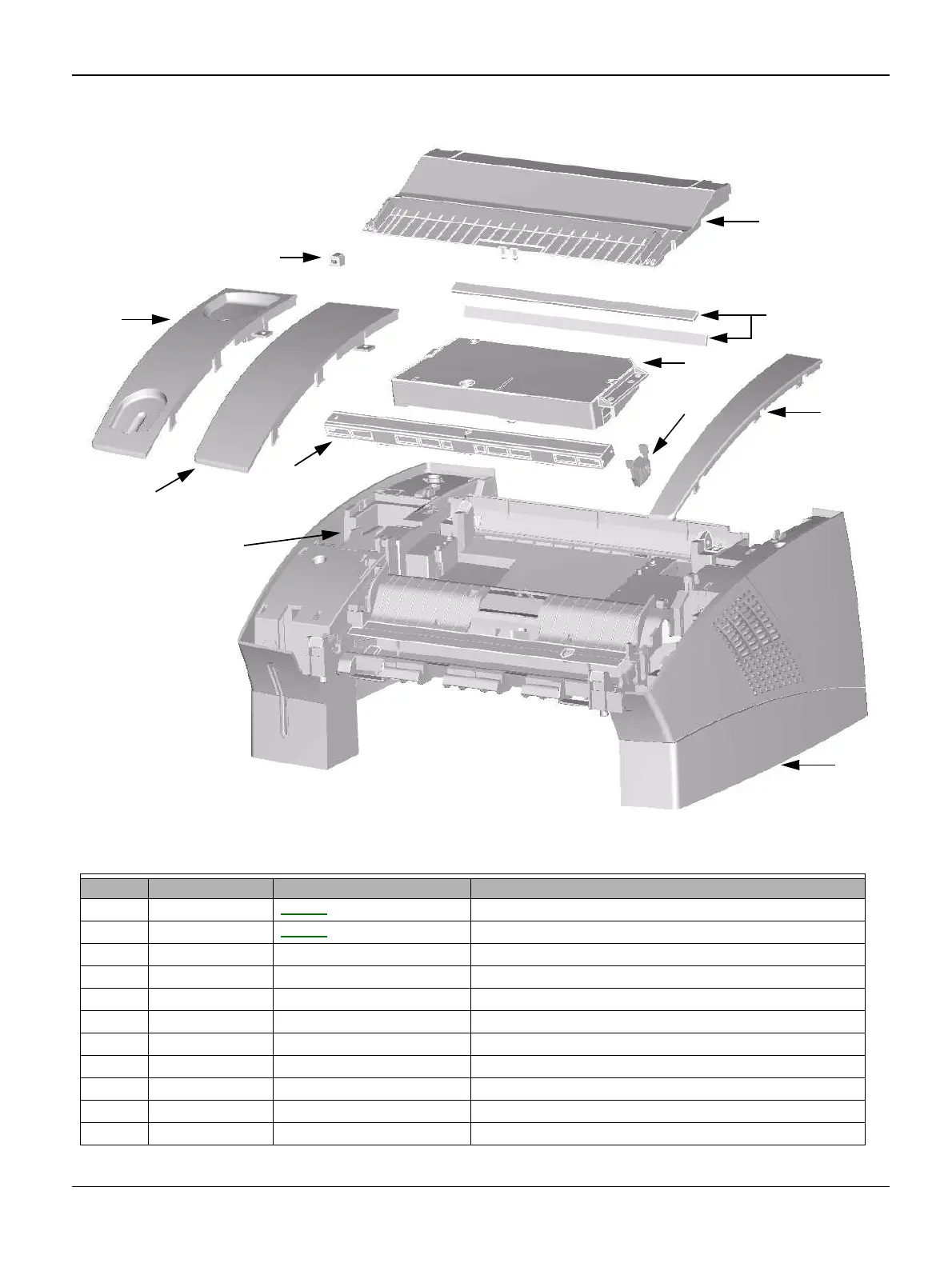

PL 3 Housing and Scanner
INDEX PART NO COMMENT DESCRIPTION
1,6 002N02361 REP 5
MAIN HOUSING WITH LSU, ASSY
2 062N00255 REP 4
CIS 300DPI
3 019N00817 CIS - HOLDER
4 002N02362 COVER - RIGHT
5a 002N02370 HANDSET COVER PS WHITE (220V)
5b 002N02363 COVER LEFT WITHOUT HANDSETFORM (110V)
6 Part of item 1 LASER SCANNER UNIT
7 062N00256 MIRROR - LSU BV2
8 002N02364 COVER - LSU
9 002N02365 USB COVER
10 130N01374 NOT SHOWN LOUDSPEAKER 50MM / L100
2
5b
5a
9
8
4
3
6
1
7
10
