Repairs/Adjustments
4-14 12/04 FaxCentre F110
REP 8 Fuser Unit Removal
Parts List on PL 5
1. Perform REP 7.
2. Remove 2 screws.

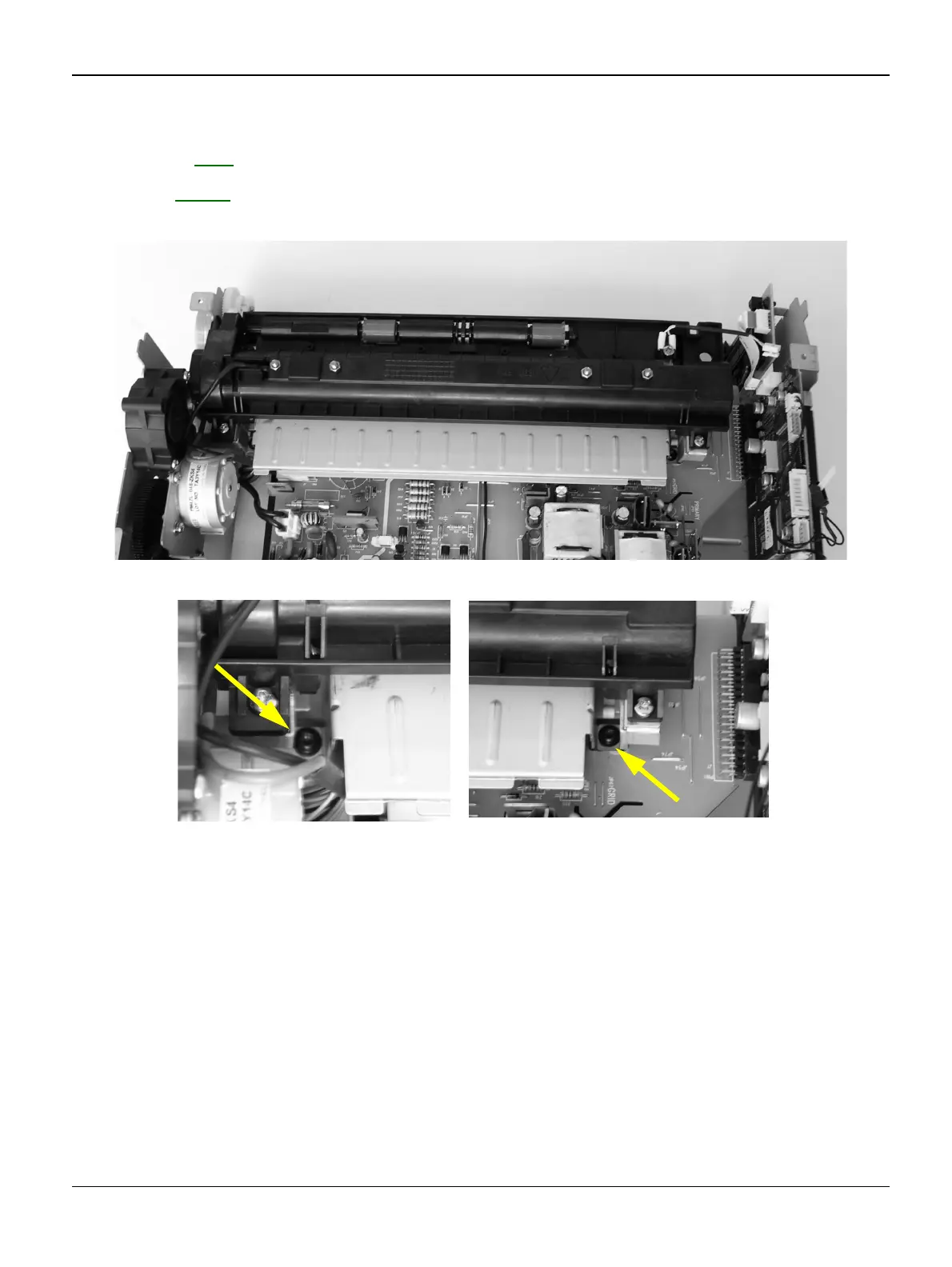

Figure 1
3. Carefully lift the Fuser from the backside to release the hinge at the front.
