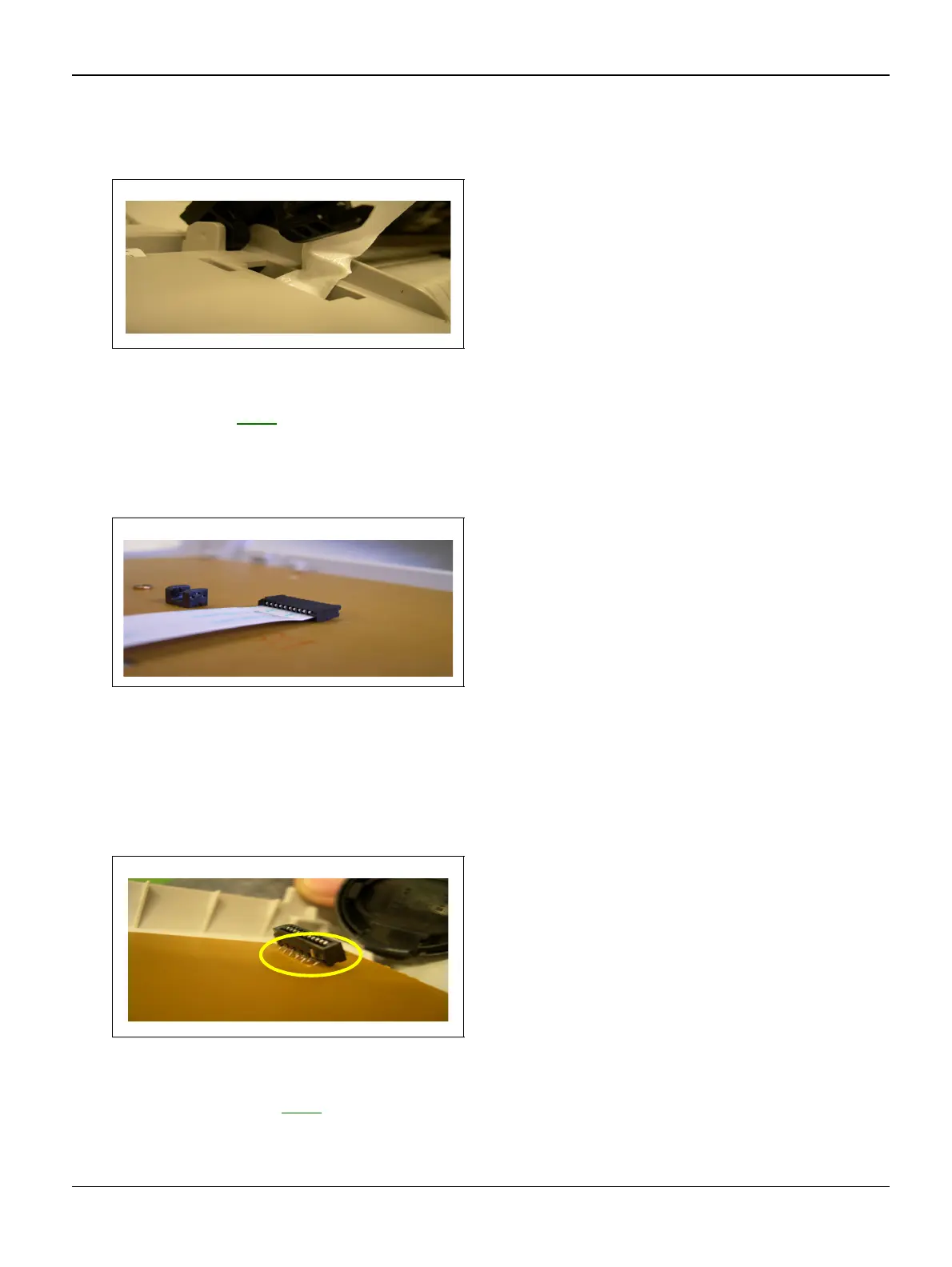

Status Indicator RAPs
FaxCentre F110 12/04 2-23
Cause 3
OPU cable damaged.
Solution 3
Install a new OPU, PL 1.
Cause 4
LCD cable disconnected.
Solution 4
Connect the LCD cable.
Cause 5
OPU connector damaged at sockets.
Solution 5
Install a new OPU PCB, PL 1.
